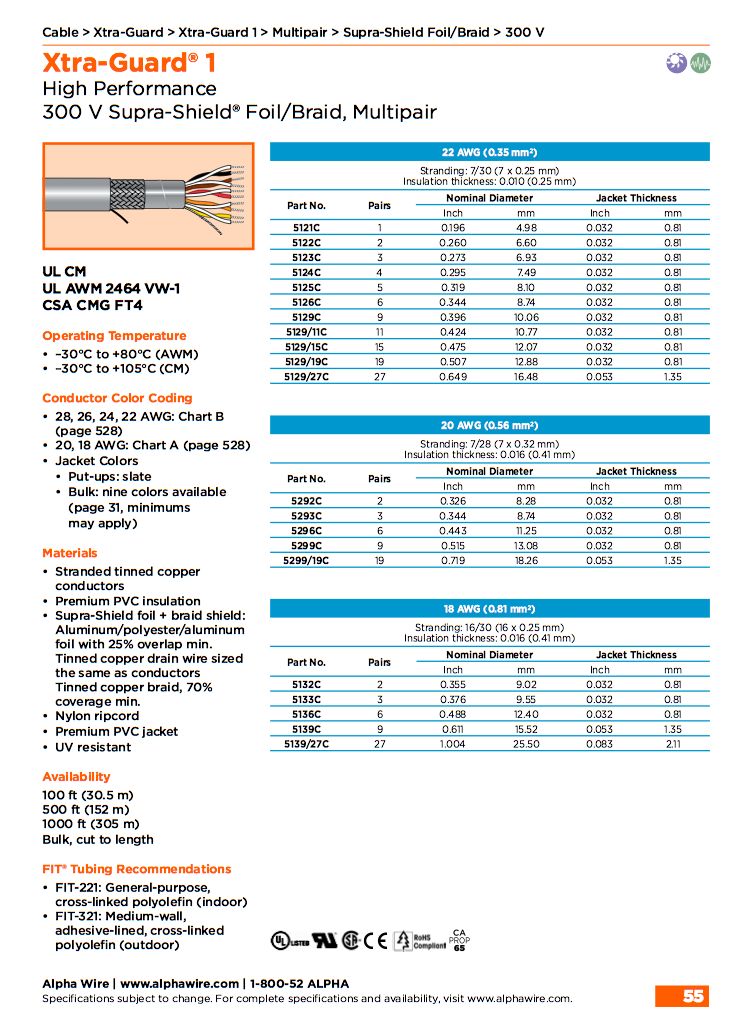

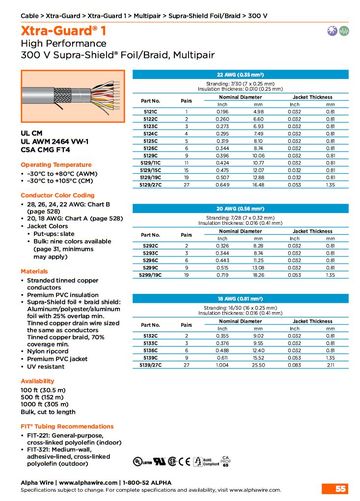

Xtra-Guard® 1 High Performance
300 V Supra- Shield Foil/Brraid, Multipair
UL CM
UL AWM 2464 VW-1
CSA CMG FT4

Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• 28, 26, 24, 22 AWG: Chart B (page 528)
• 20, 18 AWG: Chart A (page 528)
•Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
    (page 31, minimums may apply)
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum foil with 25% overlap min.
Tinned copper drain wire sized
     the same as conductors Tinned copper braid,
70% coverage min.
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
　

FIT® Tubing Recommendations
• FIT-221: General-purpose,
     cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
     adhesive-lined, cross-linked polyolefin (outdoor)

Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆

• 高性能电缆，适用于一般用途
• 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
• 耐油，符合 UL 耐油级别 I 和第 43 类
• 可抵抗高达 105 摄氏度的环境温度
• 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
