Awg24: Alpha5330C, Alpha5331C, Alpha5332C, Alpha5333C, Alpha5334C, Alpha5335C, Alpha5336C,

Awg22: Alpha5340/2C, Alpha5340C, Alpha5341C, Alpha5342C, Alpha5344C, Alpha5345C, Alpha5346C,

Awg20: Alpha5350C, Alpha5350/4C, Alpha5351C, Alpha5351/9C, Alpha5353C, Alpha5354C, Alpha5355C,

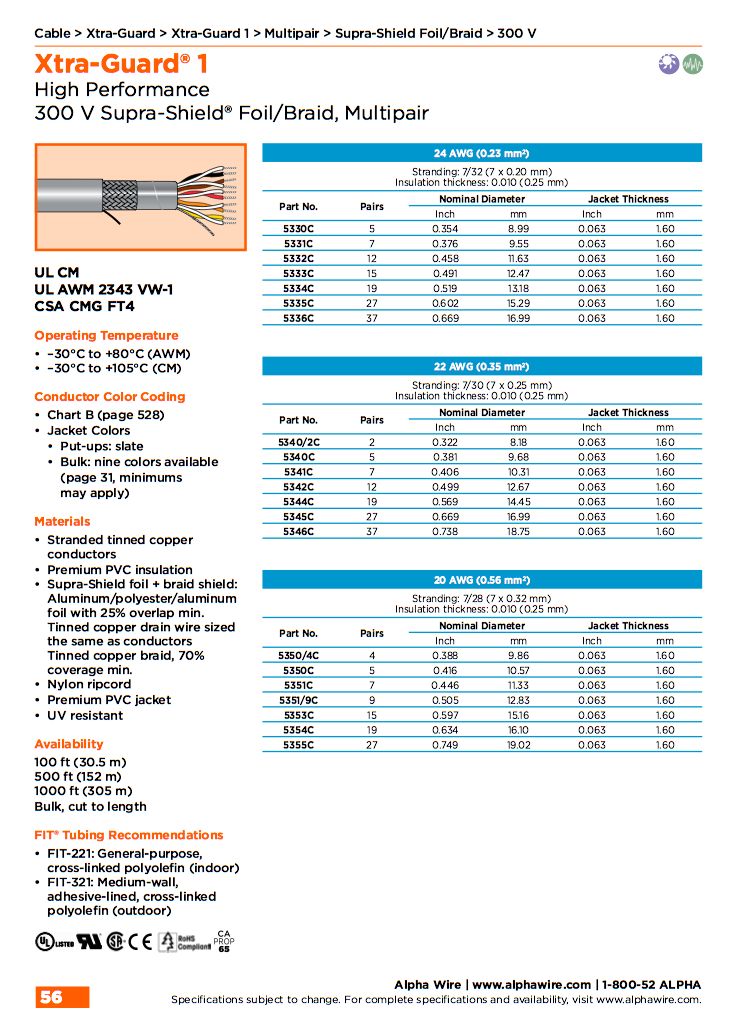

Xtra-Guard® 1 High Performance
300 V Supra- Shield Foil/Brraid, Multipair
UL CM
UL AWM 2343 VW-1
CSA CMG FT4

Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• Chart B (page 528)
•Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums may apply)
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum foil with 25% overlap min.
Tinned copper drain wire sized
the same as conductors Tinned copper braid,
70% coverage min.
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
　

FIT® Tubing Recommendations
• FIT-221: General-purpose,
cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked polyolefin (outdoor)

Awg24: Alpha5330C, Alpha5331C, Alpha5332C, Alpha5333C, Alpha5334C, Alpha5335C, Alpha5336C,

Awg22: Alpha5340/2C, Alpha5340C, Alpha5341C, Alpha5342C, Alpha5344C, Alpha5345C, Alpha5346C,

Awg20: Alpha5350C, Alpha5350/4C, Alpha5351C, Alpha5351/9C, Alpha5353C, Alpha5354C, Alpha5355C,
