    ALPHA-25074 Awg16 x 4C 300V CA Prop 65, CE, CSA I/II A/B, CSA FT1, UL 1569, UL 20668, VW/1 PVC-TPU 耐磨 Xtra-Guard® 2 高性能电缆
    看原圖
    		ALPHA-25074

    商品編號: ALPHA-25074

    ALPHA-25074 Awg16 x 4C 300V CA Prop 65, CE, CSA I/II A/B, CSA FT1, UL 1569, UL 20668, VW/1 PVC-TPU 耐磨 Xtra-Guard® 2 高性能电缆

    部件号 Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    25074 Conductor UNSHIELDED 300 16 4 0.288 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1

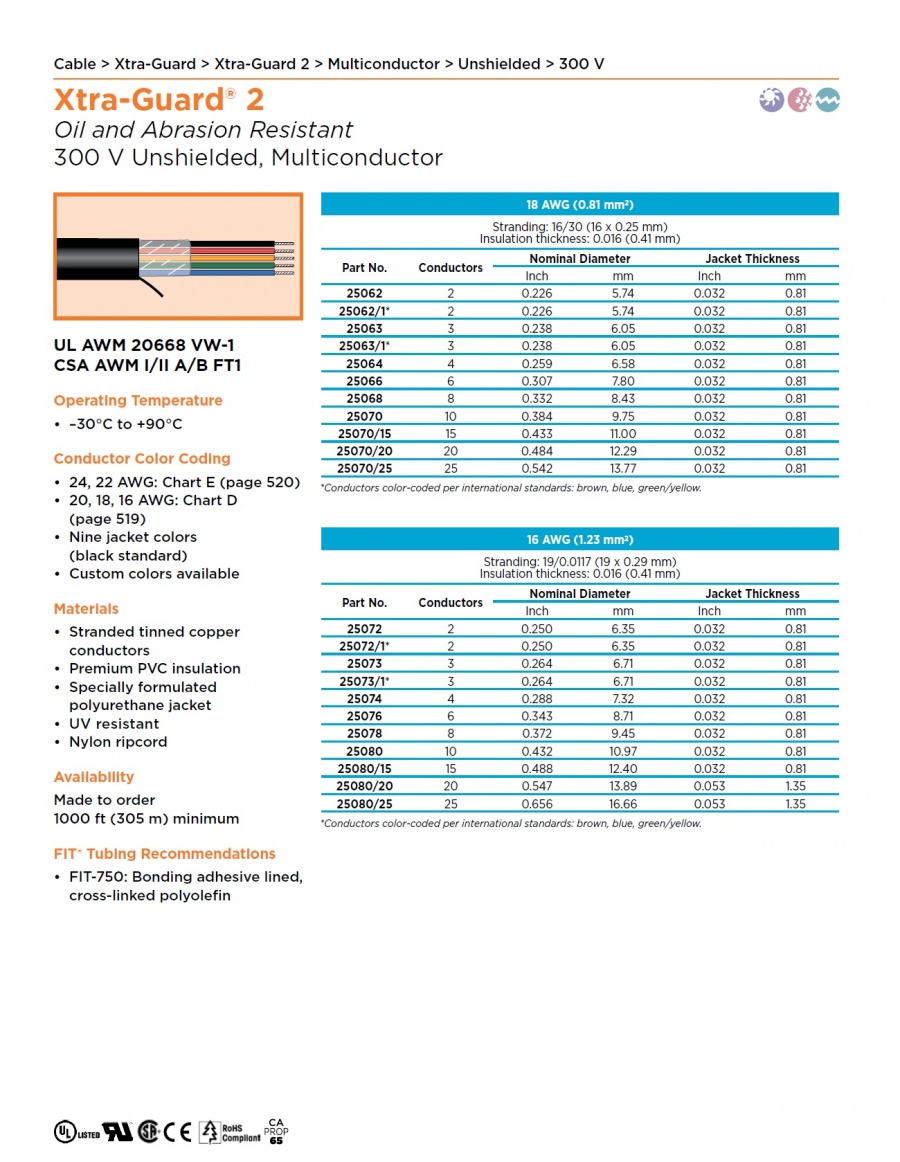

    Xtra-Guard® 2
    Oil and Abrasion Resistant
    300 V Unshielded, Multiconductor
    UL AWM 20668 VW-1
    CSA AWM I/II A/B FT1
    Operating Temperature
    • –30°C to +90°C Conductor Color Coding
    • 24, 22 AWG: Chart E (page 520)
    • 20, 18, 16 AWG: Chart D (page 519)
    • Nine jacket colors (black standard)
    • Custom colors available
    Materials
    • Stranded tinned copper conductors
    • Premium PVC insulation
    • Specially formulated
    polyurethane jacket
    • UV resistant
    • Nylon ripcord
    Availability
    Made to order
    1000 ft (305 m) minimum
    　

    FIT® Tubing Recommendations
    • FIT-750: Bonding adhesive lined, cross-linked polyolefin

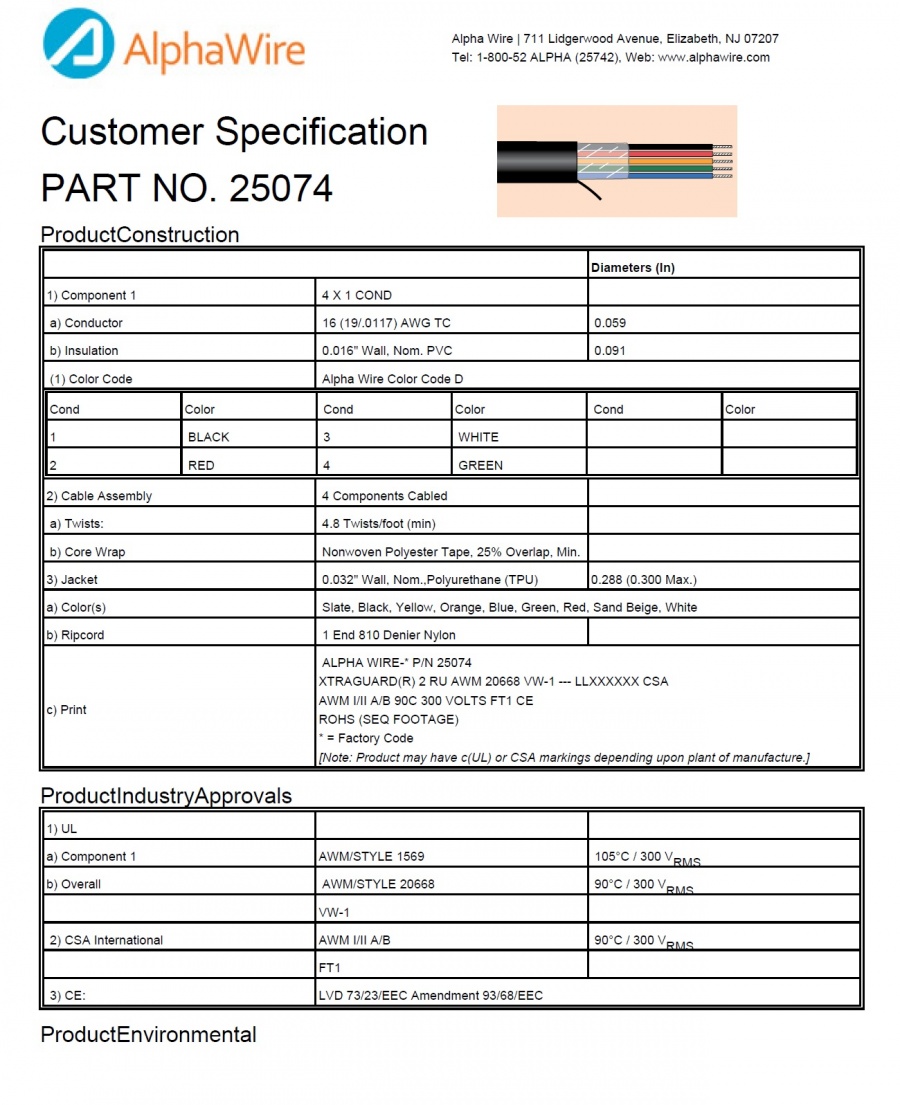

    ProductConstruction
    　 Diameters (In)
    1) Component 1 4 X 1 COND 　
    a) Conductor 16 (19/.0117) AWG TC 0.059
    b) Insulation 0.016" Wall, Nom. PVC 0.091
    (1) Color Code Alpha Wire Color Code D
    Cond Color Cond Color Cond Color
    1 BLACK 3 WHITE 　 　
    2 RED 4 GREEN 　 　
    2) Cable Assembly 4 Components Cabled 　
    a) Twists: 4.8 Twists/foot (min) 　
    b) Core Wrap Nonwoven Polyester Tape, 25% Overlap, Min. 　
    3) Jacket 0.032" Wall, Nom.,Polyurethane (TPU) 0.288 (0.300 Max.)
    a) Color(s) Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
    b) Ripcord 1 End 810 Denier Nylon 　
    c) Print ALPHA WIRE-* P/N 25074
    XTRAGUARD(R) 2 RU AWM 20668 VW-1 --- LLXXXXXX CSA
    AWM I/II A/B 90C 300 VOLTS FT1 CE
    ROHS (SEQ FOOTAGE)
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    ProductIndustryApprovals
    1) UL 　 　
    a) Component 1 AWM/STYLE 1569 105°C / 300 VRMS
    b) Overall AWM/STYLE 20668 90°C / 300 VRMS
    　 VW-1 　
    2) CSA International AWM I/II A/B 90°C / 300 VRMS
    　 FT1 　
    3) CE: LVD 73/23/EEC Amendment 93/68/EEC

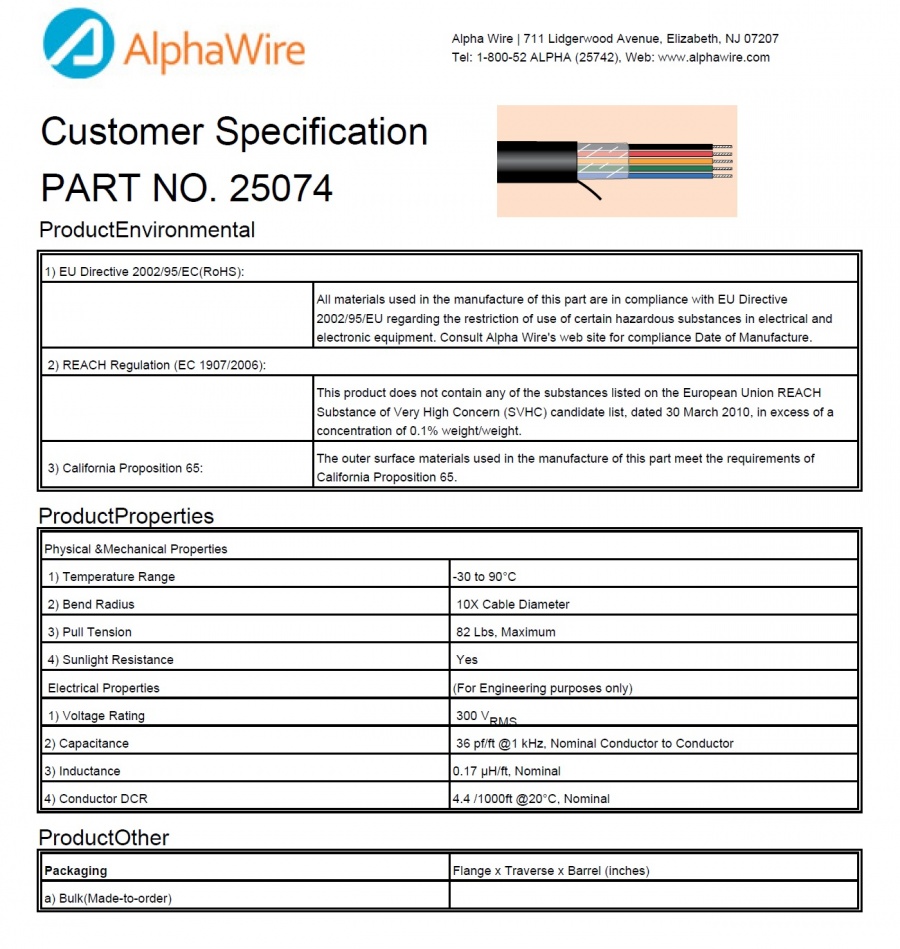

    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the European Union REACH Substance of Very High Concern (SVHC) candidate list, dated 30 March 2010, in excess of a concentration of 0.1% weight/weight.
    3) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -30 to 90°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 82 Lbs, Maximum
    4) Sunlight Resistance Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Capacitance 36 pf/ft @1 kHz, Nominal Conductor to Conductor
    3) Inductance 0.17 µH/ft, Nominal
    4) Conductor DCR 4.4 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) Bulk(Made-to-order) 　

    Xtra-Guard ® 2 – 耐磨，可承受机械磨损 Ultraviolet LightOil, Chemicals, Solvents, FuelsAbrasionEMI Noise

    • 适合在磨损和机械损伤普遍的工业应用中使用
    • 特制的坚韧聚氨酯护套，抗撕破性和耐磨性是普通聚氯乙烯的三倍
    • 极高的抗切割和物理损坏性能
    • 中至高度抗油、溶剂、化学品和燃料的性能
    • 所有护套颜色都具有出色的紫外线照射稳定性
    • 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
    符合性证明
    敬启者：
    Alpha Wire 部件号：25074
    25074 ，符合RoHS标准，以 2005/8/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson


    　 Part #

    　

    		 Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    25070/15 Conductor UNSHIELDED 300 18 15 0.433 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25070/20 Conductor UNSHIELDED 300 18 20 0.484 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25070/25 Conductor UNSHIELDED 300 18 25 0.542 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25072 Conductor UNSHIELDED 300 16 2 0.25 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25072/1 Conductor UNSHIELDED 300 16 2 0.25 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25073 Conductor UNSHIELDED 300 16 3 0.264 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25073/1 Conductor UNSHIELDED 300 16 3 0.264 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25074 Conductor UNSHIELDED 300 16 4 0.288 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25076 Conductor UNSHIELDED 300 16 6 0.343 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25078 Conductor UNSHIELDED 300 16 8 0.372 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25080 Conductor UNSHIELDED 300 16 10 0.432 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25080/15 Conductor UNSHIELDED 300 16 15 0.488 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25080/20 Conductor UNSHIELDED 300 16 20 0.547 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25080/25 Conductor UNSHIELDED 300 16 25 0.656 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 1569, UL AWM 20668, UL VW/1
    25092 Conductor FOIL 300 24 2 0.16 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 10002, UL AWM 20668, UL VW/1
    25093 Conductor FOIL 300 24 3 0.167 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 10002, UL AWM 20668, UL VW/1
    25094 Conductor FOIL 300 24 4 0.179 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 10002, UL AWM 20668, UL VW/1
    25096 Conductor FOIL 300 24 6 0.205 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 10002, UL AWM 20668, UL VW/1
    25098 Conductor FOIL 300 24 8 0.219 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 10002, UL AWM 20668, UL VW/1
    25100 Conductor FOIL 300 24 10 0.248 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, UL AWM 10002, UL AWM 20668, UL VW/1
