Awg22: Alpha35102, Alpha35103, Alpha35104, Alpha35106, Alpha35108, Alpha35110, Alpha35110/15,

Awg20: Alpha35152, Alpha35153, Alpha35154, Alpha35156, Alpha35158, Alpha35160, Alpha35160/15,

Awg18: Alpha35162, Alpha35162/1, Alpha35163, Alpha35163/1, Alpha35164, Alpha35166, Alpha35168, Alpha35170, Alpha35170/15,

Awg16: Alpha35172, Alpha35172/1, Alpha35173, Alpha35173/1, Alpha35174, Alpha35176, Alpha35178, Alpha35180, Alpha35180/15,

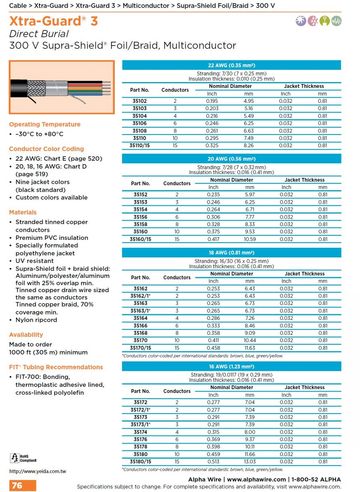

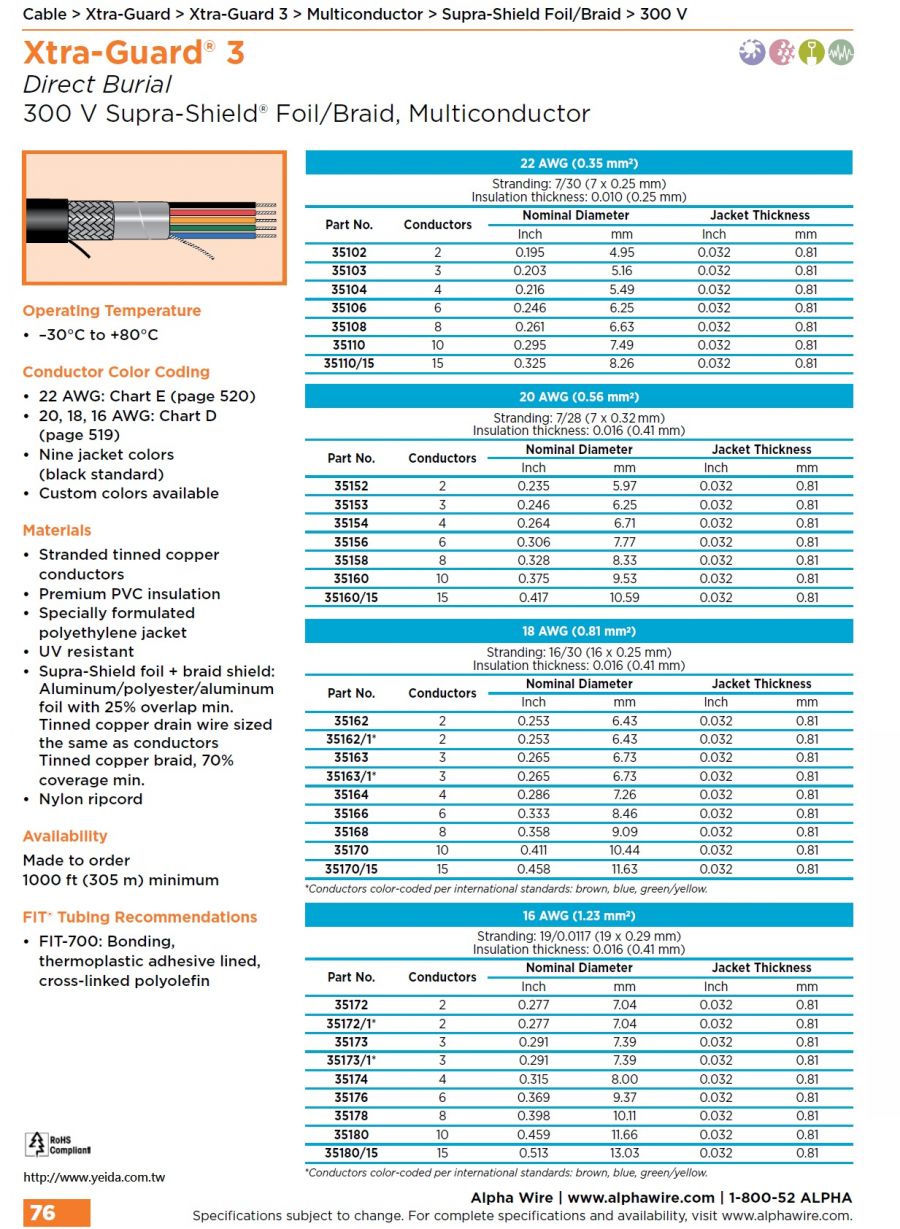

Xtra-Guard® 3
Direct Burial
300 V Supra-Shield® Foil/Braid, Multiconductor

Operating Temperature
• –30°C to +80°C
Conductor Color Coding
• 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D (page 519)
• Nine jacket colors (black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Specially formulated polyethylene jacket
• UV resistant
• Supra-Shield foil + braid shield: Aluminum/polyester/aluminum foil with 25% overlap min.
     Tinned copper drain wire sized the same as conductors Tinned copper braid, 70% coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
　

FIT® Tubing Recommendations
• FIT-700: Bonding, thermoplastic adhesive lined, cross-linked polyolefin

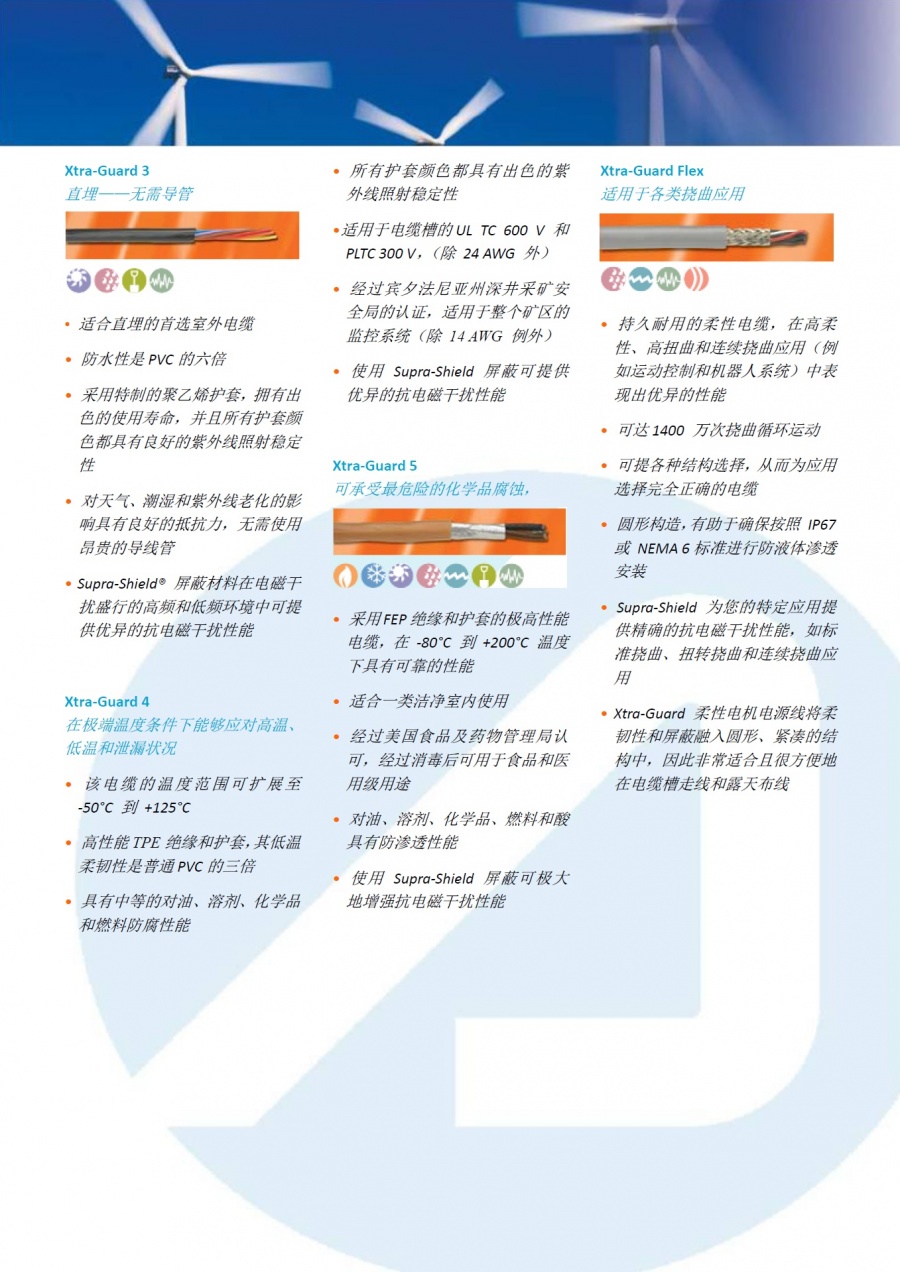

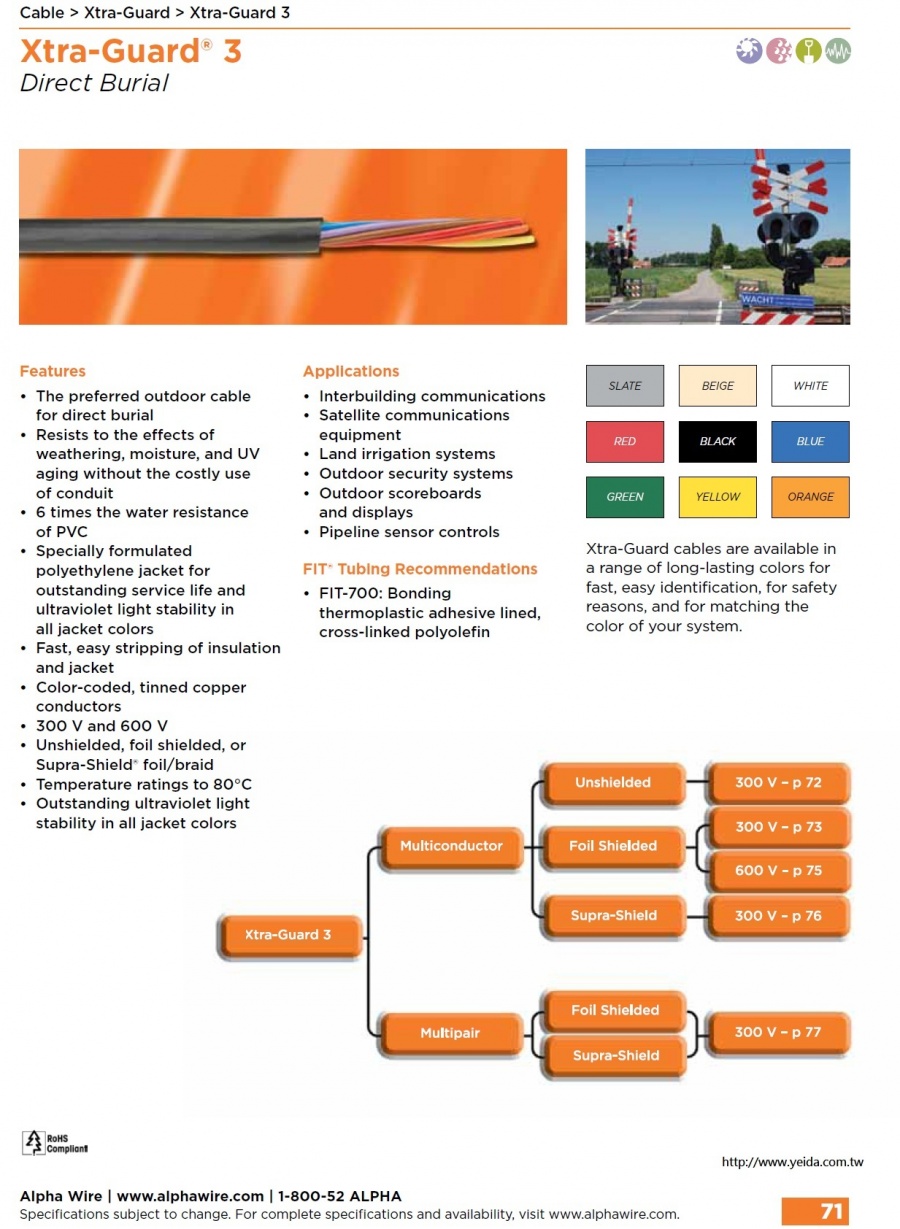

Xtra-Guard® 3 - Direct burial—no conduit needed  The preferred outdoor cable for direct burial 6 times the water resistance of PVC Features a specially formulated polyethylene jacket for outstanding service life and ultraviolet light stability in all jacket colors Resistant to the effects of weathering, moisture, and UV aging without the costly use of conduit Supra-Shield® provides exceptional protection against conducted or electrical noise in high- and low- frequency environments where EMI interference is pervasive Xtra-Guard ® 3 – 直埋式電纜，無需導線管 1. 首選的室外電纜，適合直接敷埋 2. 防水性是普通聚氯乙烯的5倍 3. 採用特製的聚乙烯護套，擁有出色的使用壽命，所有護套顏色都具有良好的紫外線照射穩定性 4. 可抵抗天氣、潮濕和紫外線老化的影響，無需使用昂貴的導線管 5. Supra-Shield® 可在電磁/射頻干擾強烈的高頻和低頻環境中，提供優異的抗傳導或電氣噪音的保護
