Awg24: Alpha35491, Alpha35492, Alpha35493, Alpha35494,

Awg22: Alpha35481, Alpha35482, Alpha35483, Alpha35484, Alpha35485,

Awg20: Alpha35452, Alpha35453,

Awg18: Alpha35372, Alpha35373, Alpha35376

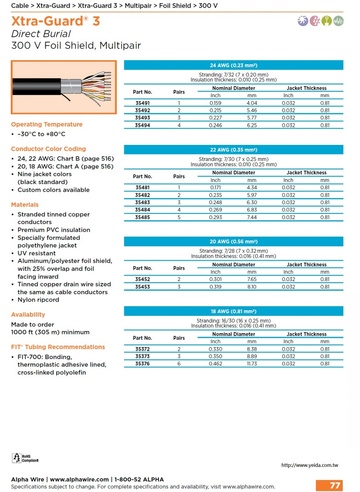

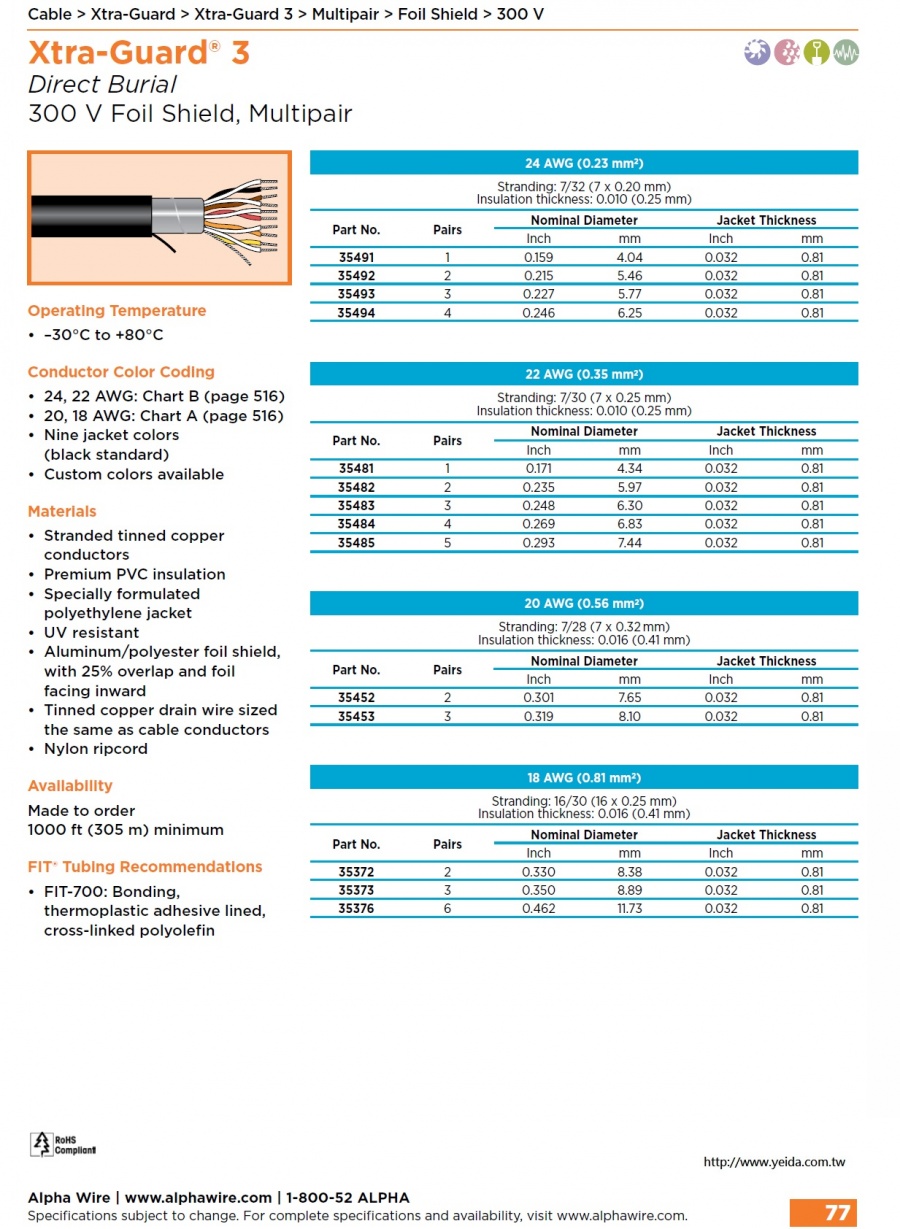

Xtra-Guard® 3
Direct Burial
300 V Foil Shield, Multipair

Operating Temperature
• –30°C to +80°C
Conductor Color Coding
• 24, 22 AWG: Chart B (page 516)
• 20, 18 AWG: Chart A (page 516)
• Nine jacket colors (black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Specially formulated polyethylene jacket
• UV resistant
• Aluminum/polyester foil shield, with 25% overlap and foil facing inward
• Tinned copper drain wire sized the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
　

FIT® Tubing Recommendations
• FIT-700: Bonding, thermoplastic adhesive lined, cross-linked polyolefin

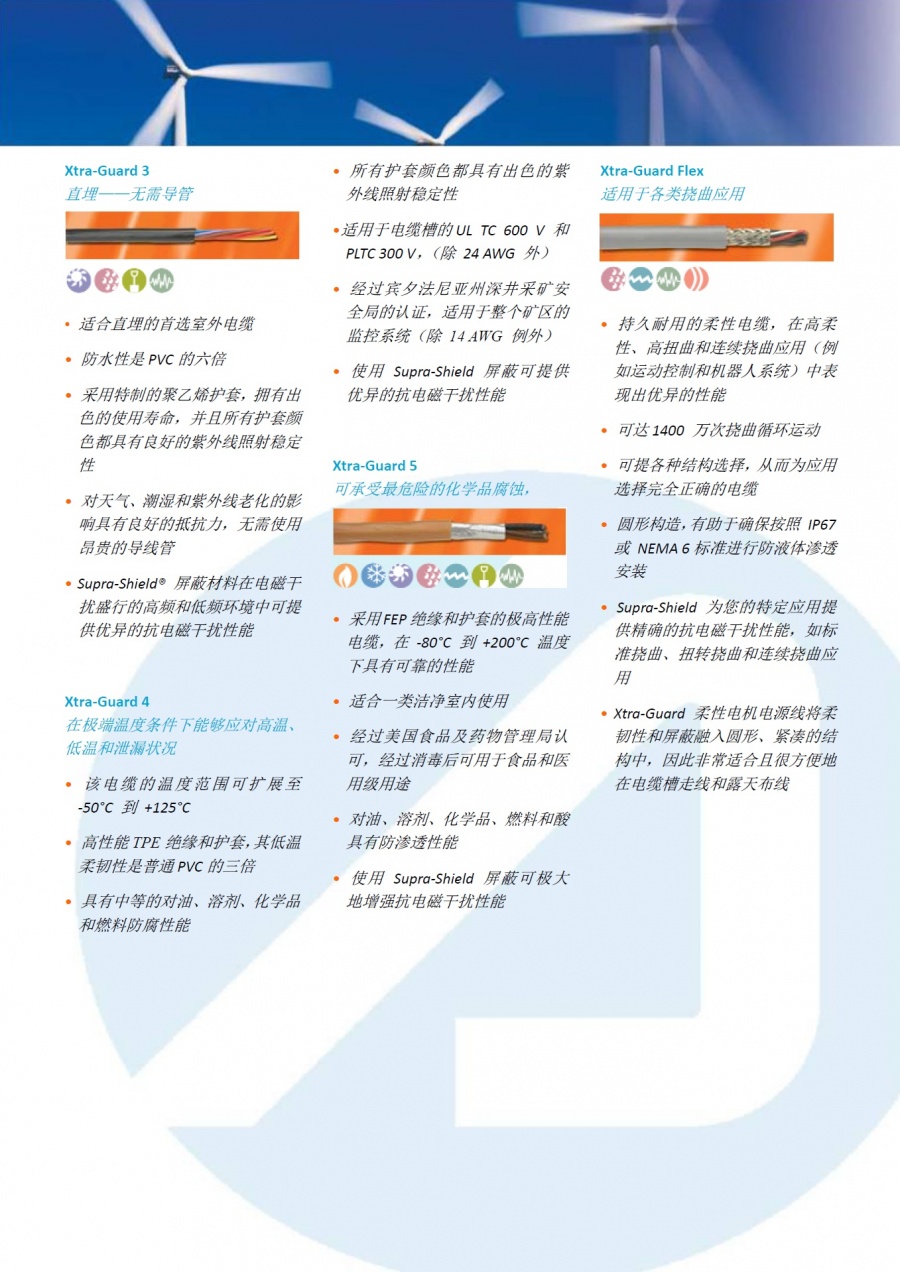

Xtra-Guard® 3 - Direct burial—no conduit needed  The preferred outdoor cable for direct burial 6 times the water resistance of PVC Features a specially formulated polyethylene jacket for outstanding service life and ultraviolet light stability in all jacket colors Resistant to the effects of weathering, moisture, and UV aging without the costly use of conduit Supra-Shield® provides exceptional protection against conducted or electrical noise in high- and low- frequency environments where EMI interference is pervasive Xtra-Guard ® 3 – 直埋式电缆，无需导线管  首选的室外电缆，适合直接敷埋 防水性是普通聚氯乙烯的5倍 采用特制的聚乙烯护套，拥有出色的使用寿命，所有护套颜色都具有良好的紫外线照射稳定性 可抵抗天气、潮湿和紫外线老化的影响，无需使用昂贵的导线管 Supra-Shield® 可在电磁/射频干扰强烈的高频和低频环境中，提供优异的抗传导或电气噪音的保护

Awg24: Alpha35491, Alpha35492, Alpha35493, Alpha35494,

Awg22: Alpha35481, Alpha35482, Alpha35483, Alpha35484, Alpha35485,

Awg20: Alpha35452, Alpha35453,

Awg18: Alpha35372, Alpha35373, Alpha35376
