Awg24: Alpha55012, Alpha55013, Alpha55014, Alpha55016, Alpha55019, Alpha55020/12,

Awg22: Alpha55002, Alpha55003, Alpha55004, Alpha55006, Alpha55009, Alpha55010/12,

Awg20: Alpha55052, Alpha55053, Alpha55054, Alpha55056, Alpha55059, Alpha55060/12,

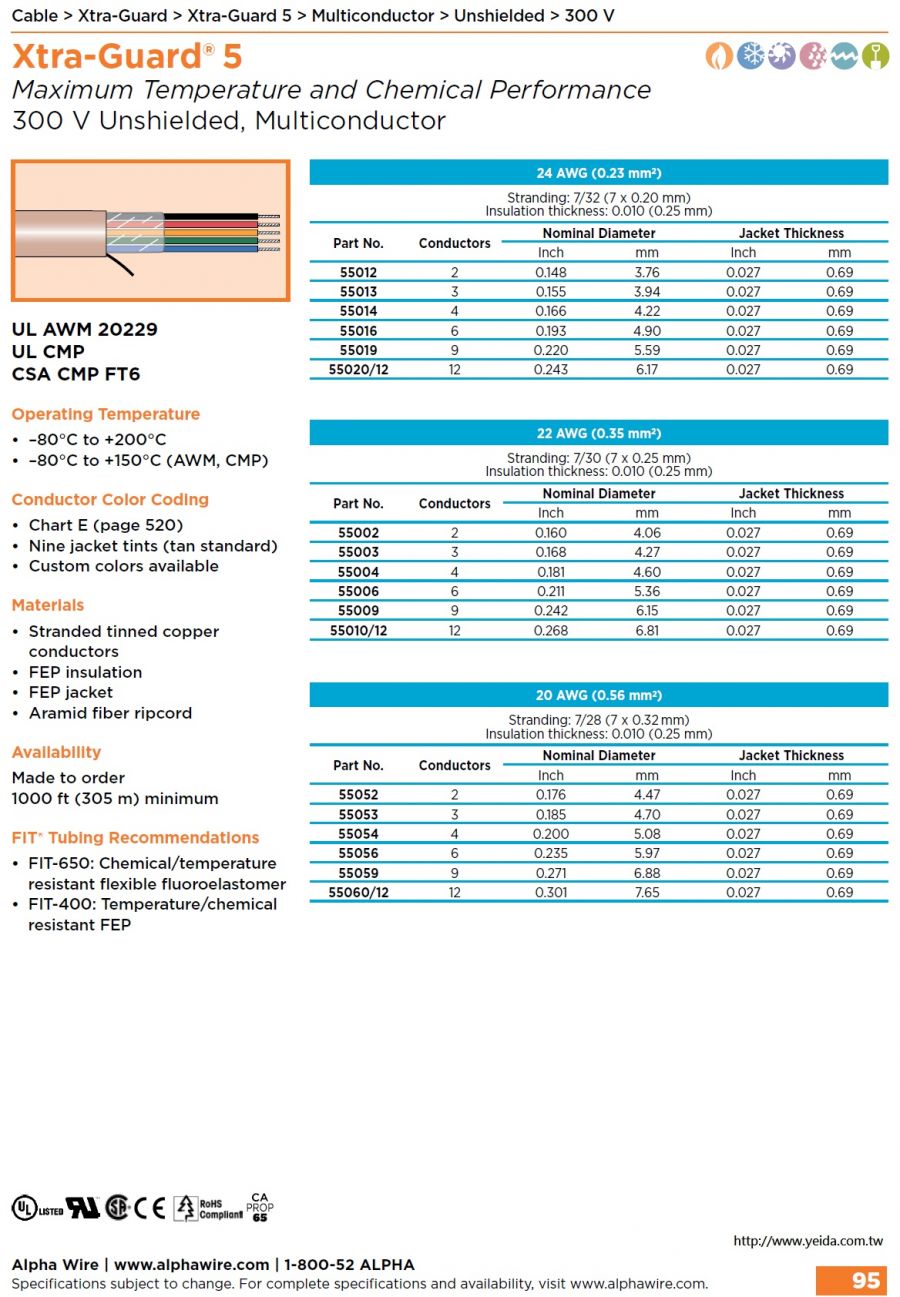

Xtra-Guard® 5
Maximum Temperature and Chemical Performance
300 V Unshielded, Multiconductor
UL AWM 20229
UL CMP
CSA CMP FT6

Operating Temperature
• –80°C to +200°C
• –80°C to +150°C (AWM, CMP)
Conductor Color Coding
• Chart E (page 520)
• Nine jacket tints (tan standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• FEP insulation
• FEP jacket
• Aramid fiber ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-650: Chemical/temperature resistant flexible fluoroelastomer
• FIT-400: Temperature/chemical resistant FEP

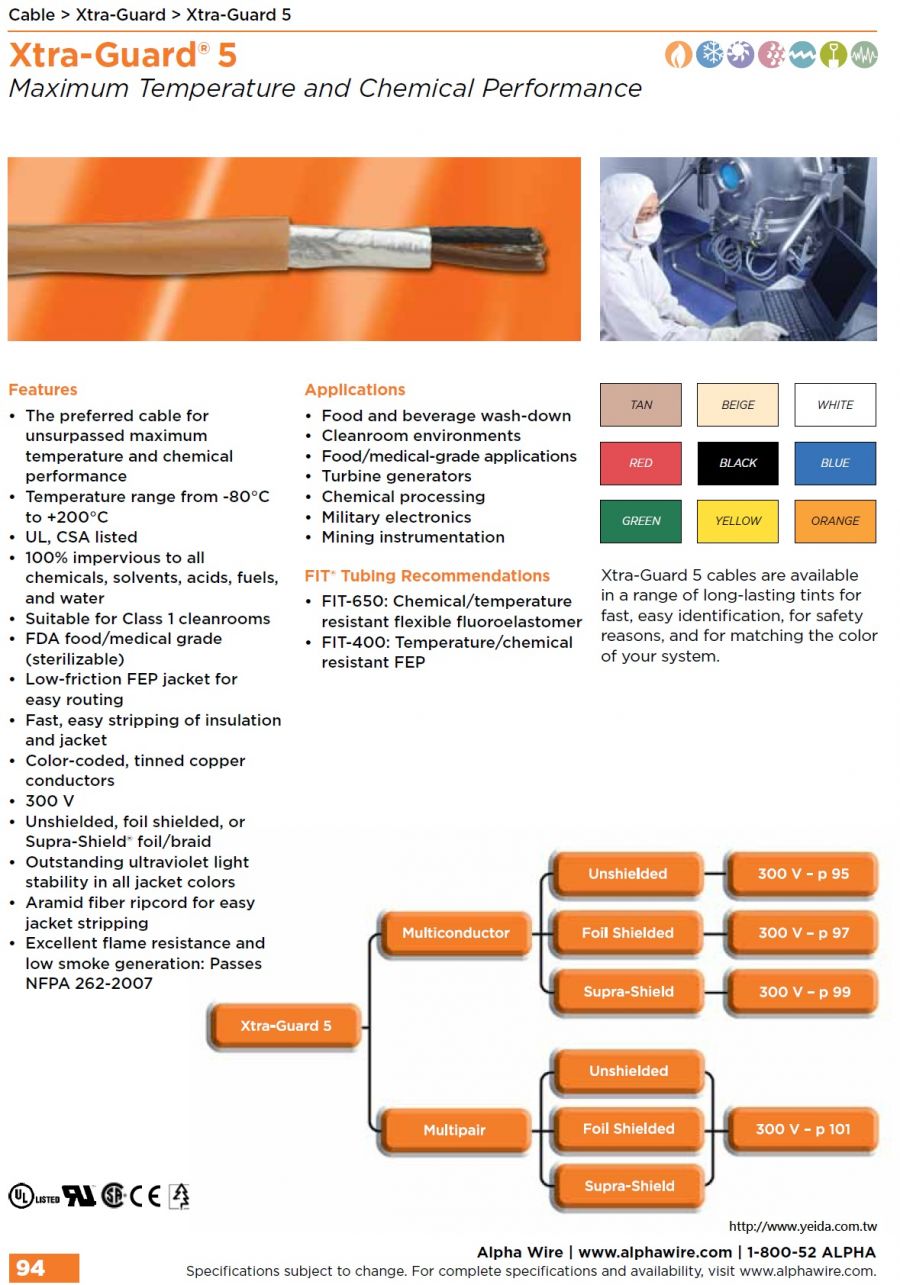

Xtra-Guard® 5 - Chemical resistant to withstand the most hazardous environments Extreme-performance cable featuring Teflon FEP insulation and jacketing for reliable performance in temperatures from -80°C to +200°C Suitable for use in Class 1 cleanrooms Recognized by the FDA, when sterilized, for food- and medical-grade applications Impervious to oils, solvents, chemicals, fuels, and acids Provides exceptional protection against EMI when Supra-Shield is specified Xtra- Guard ® 5 – 防腐，適用於大多數極限環境 极限性能电缆，采用聚四氟乙烯绝缘和护套，在 -80°C 到 +200°C 温度下具有可靠的性能 适合一级净化室使用 经过美国食品及药物管理局认可，消毒后，可用于食品和医用级产品 对油、溶剂、腐蚀和燃料具有防渗透性能 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性

Awg24: Alpha55012, Alpha55013, Alpha55014, Alpha55016, Alpha55019, Alpha55020/12,

Awg22: Alpha55002, Alpha55003, Alpha55004, Alpha55006, Alpha55009, Alpha55010/12,

Awg20: Alpha55052, Alpha55053, Alpha55054, Alpha55056, Alpha55059, Alpha55060/12,
