    首頁 > > ALPHA-Xtra-Guard® 5 Unshielded Multipair 多對型無隔離超級耐候抗化學腐蝕电缆

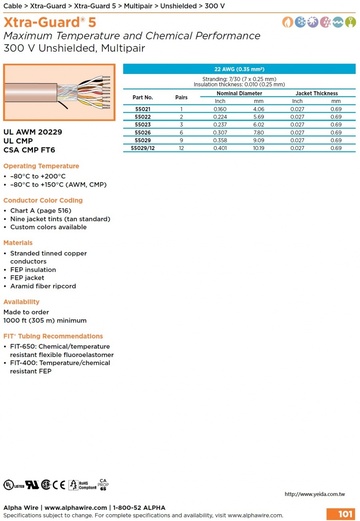

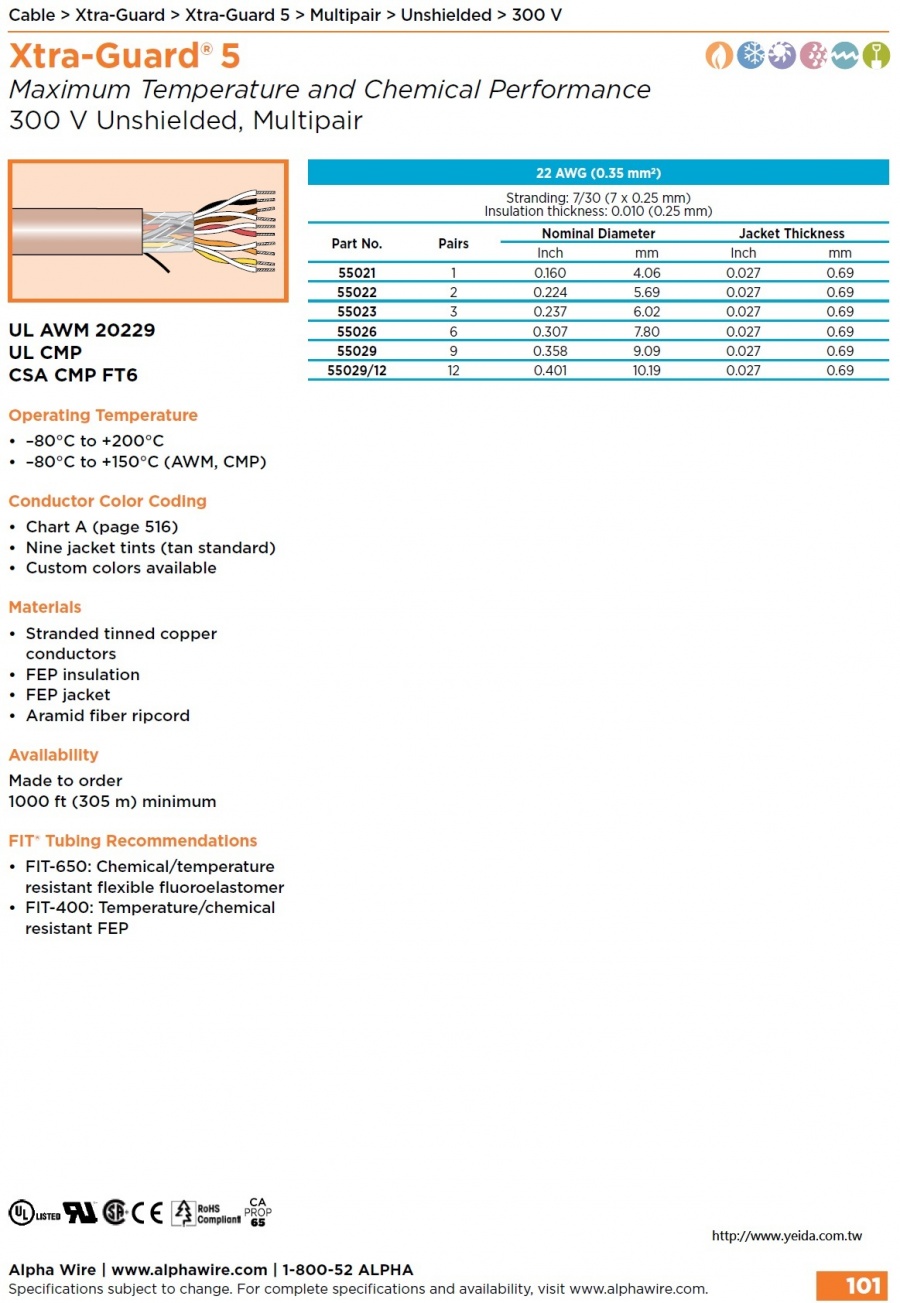

    ALPHA55022 Xtra-Guard 5 Maximum Temperature and Chemical resistant FEP Awg 22 300 V Unshielded, Multipair (–80°C to +200°C) 防腐, 食品醫療工業級,挑戰極限環境鐵氟龍耐高溫對型電纜
    看原圖
    		ALPHA-55021

    ALPHA-55021
    ALPHA55022 Xtra-Guard® 5 Maximum Temperature and Chemical resistant FEP Awg 22 300 V Unshielded, Multipair (–80°C to +200°C) 防化學腐蝕, 食品醫療工業級,     挑戰極限環境鐵氟龍耐高溫對型電纜
    Awg22: Alpha55021, Alpha55022, Alpha55023, Alpha55026, Alpha55029, Alpha55029/12,

    UL AWM 20229
    UL CMP
    CSA CMP FT6
    Operating Temperature
    • –80°C to +200°C
    • –80°C to +150°C (AWM, CMP)
    Conductor Color Coding
    • Chart A (page 528)
    • Nine jacket tints (tan standard)
    • Custom colors available
    Materials
    • Stranded tinned copper
    conductors
    • FEP insulation
    • FEP jacket
    • Aramid fiber ripcord
    Availability
    Made to order
    1000 ft (305 m) minimum
    FIT® Tubing Recommendations
    • FIT-650: Chemical/temperature
    resistant flexible fluoroelastomer
    • FIT-400: Temperature/chemical
    resistant FEP

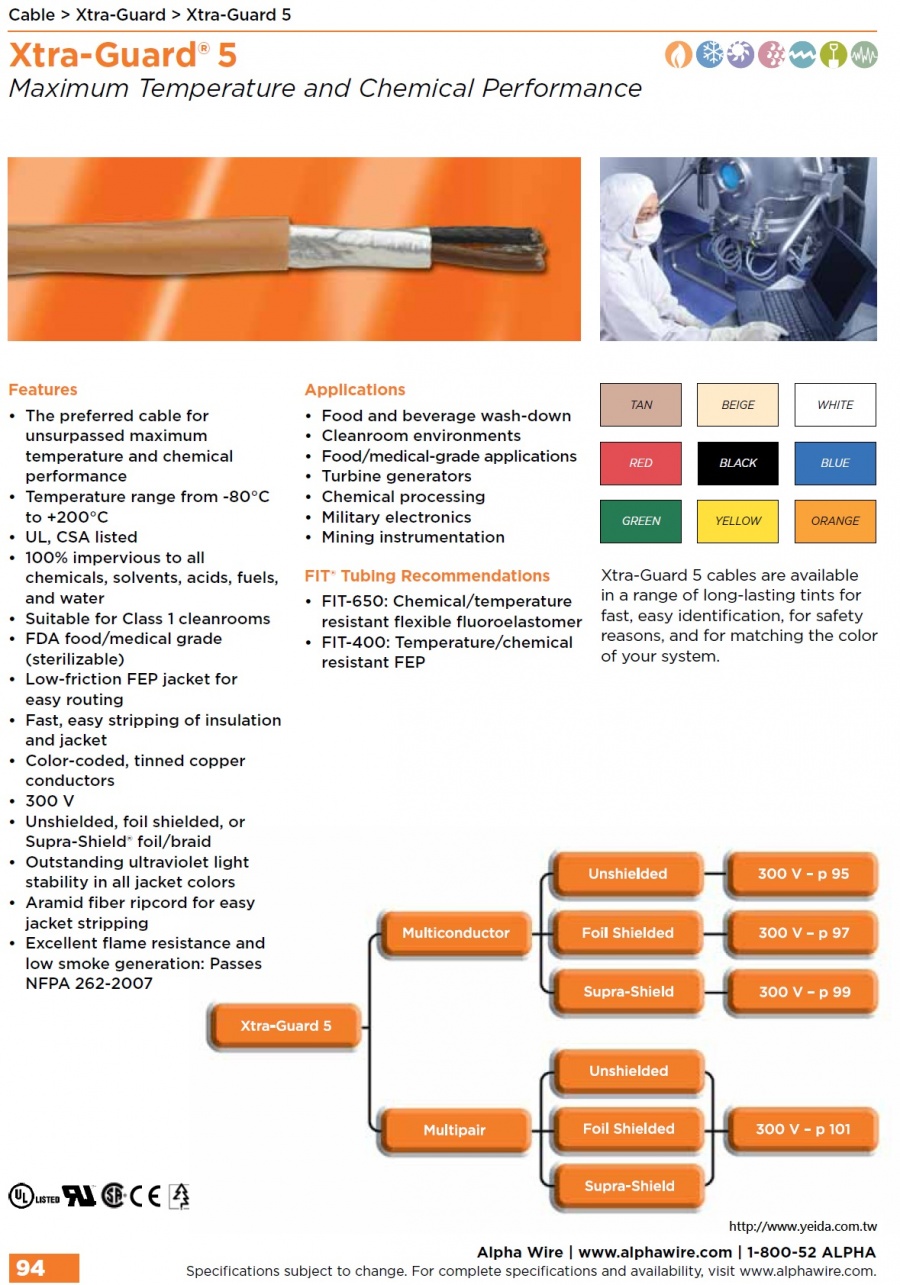

    Xtra-Guard® 5 - Chemical resistant to withstand the most hazardous environments High TemperatureLow TemperatureUltraviolet LightOil, Chemicals, Solvents, FuelsAbrasionDirect BurialEMI Noise
    • Extreme-performance cable featuring Teflon FEP insulation and jacketing for reliable performance in temperatures from -80°C to +200°C
    • Suitable for use in Class 1 cleanrooms
    • Recognized by the FDA, when sterilized, for food- and medical-grade applications
    • Impervious to oils, solvents, chemicals, fuels, and acids
    • Provides exceptional protection against EMI when Supra-Shield is specified

    Xtra-Guard ® 5 – 防腐，适用于大多数极限环境 High TemperatureLow TemperatureUltraviolet LightOil, Chemicals, Solvents, FuelsAbrasionDirect BurialEMI Noise

    • 极限性能电缆，采用聚四氟乙烯绝缘和护套，在 -80°C 到 +200°C 温度下具有可靠的性能
    • 适合一级净化室使用
    • 经过美国食品及药物管理局认可，消毒后，可用于食品和医用级产品
    • 对油、溶剂、腐蚀和燃料具有防渗透性能
    • 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性
      ---------------------------------------------------------------------------------------------------------------------------------------------------------

    Awg22: Alpha55021, Alpha55022, Alpha55023, Alpha55026, Alpha55029, Alpha55029/12,
