ALPHA-79011 UL21819, UL21492, IEC60332-2, REACH, WEEE, NAPA79, ISO10993-5, Awg 18 x 3C EcoFlex™ Cable 超柔性堅韌 質輕 體積小 可環保回收利用電纜

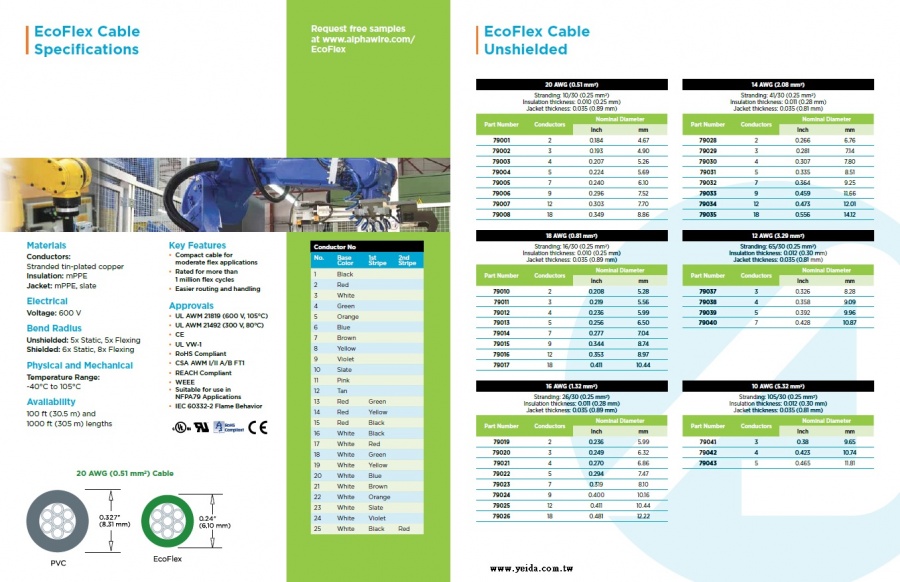

Materials
Conductors: Stranded tin-plated copper
Insulation: mPPE
Jacket: mPPE, slate
Electrical
Voltage: 600 V
Bend Radius
Unshielded: 5x Static, 5x Flexing

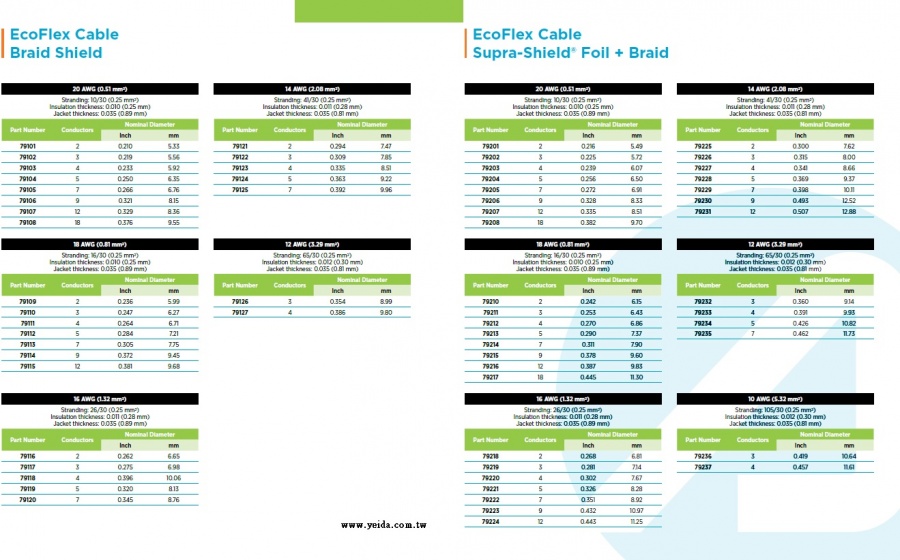

Shielded: 6x Static, 8x Flexing
Physical and Mechanical
Temperature Range:
-40°C to 105°C
Key Features
• Compact cable for moderate flex applications
• Rated for more than 1 million flex cycles
• Easier routing and handling
Approvals
• UL AWM 21819 (600 V, 105°C)
• UL AWM 21492 (300 V, 80°C)
• CE
• UL VW-1
• RoHS Compliant
• CSA AWM I/II A/B FT1
• REACH Compliant
• WEEE
• Suitable for use in NFPA79 Applications
• IEC 60332-2 Flame Behavior

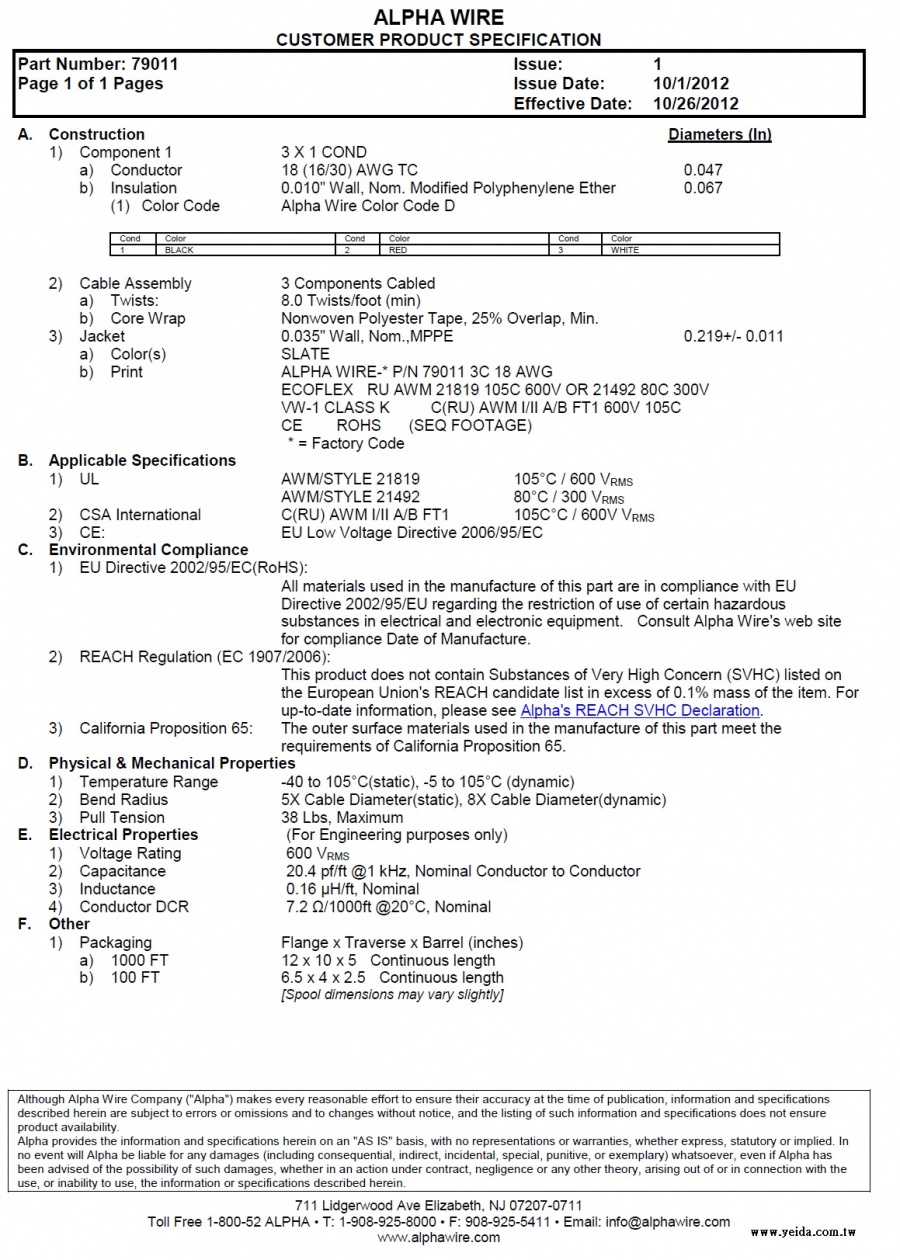

A. Construction Diameters (In)
1) Component 1 3 X 1 COND
a) Conductor 18 (16/30) AWG TC 0.047
b) Insulation 0.010" Wall, Nom. Modified Polyphenylene Ether 0.067
(1) Color Code Alpha Wire Color Code D
2) Cable Assembly 3 Components Cabled
a) Twists: 8.0 Twists/foot (min)
b) Core Wrap Nonwoven Polyester Tape, 25% Overlap, Min.
3) Jacket 0.035" Wall, Nom.,MPPE 0.219+/- 0.011
a) Color(s) SLATE
b) Print ALPHA WIRE-* P/N 79011 3C 18 AWG
ECOFLEX RU AWM 21819 105C 600V OR 21492 80C 300V
VW-1 CLASS K C(RU) AWM I/II A/B FT1 600V 105C
CE ROHS (SEQ FOOTAGE) * = Factory Code
B. Applicable Specifications
1) UL AWM/STYLE 21819 105°C / 600 VRMS
AWM/STYLE 21492 80°C / 300 VRMS
2) CSA International C(RU) AWM I/II A/B FT1 105C°C / 600V VRMS
3) CE: EU Low Voltage Directive 2006/95/EC
C. Environmental Compliance
1) EU Directive 2002/95/EC(RoHS):
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture.
2) REACH Regulation (EC 1907/2006):
This product does not contain Substances of Very High Concern (SVHC) listed on the European Unions REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alphas REACH SVHC Declaration.
3) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
D. Physical & Mechanical Properties
1) Temperature Range -40 to 105°C(static), -5 to 105°C (dynamic)
2) Bend Radius 5X Cable Diameter(static), 8X Cable Diameter(dynamic)
3) Pull Tension 38 Lbs, Maximum
E. Electrical Properties (For Engineering purposes only)
1) Voltage Rating 600 VRMS
2) Capacitance 20.4 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Inductance 0.16 μH/ft, Nominal
4) Conductor DCR 7.2 Ω/1000ft @20°C, Nominal
F. Other
1) Packaging Flange x Traverse x Barrel (inches)
a) 1000 FT 12 x 10 x 5 Continuous length
b) 100 FT 6.5 x 4 x 2.5 Continuous length
[Spool dimensions may vary slightly]
