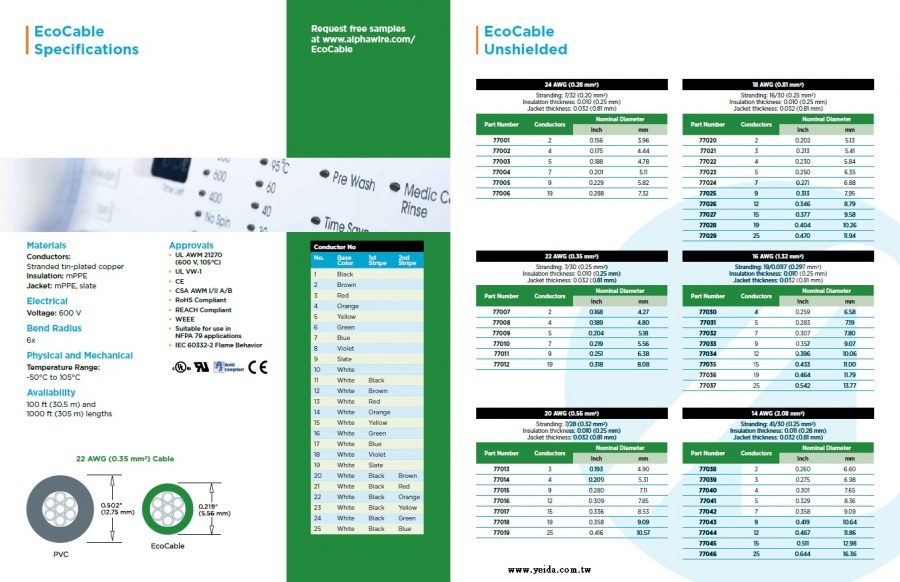

Materials
Conductors: Stranded tin-plated copper
Insulation: mPPE
Jacket: mPPE, slate
　

Electrical
Voltage: 600 V
Bend Radius 6x
　

Physical and Mechanical
Temperature Range: -50°C to 105°C
　

Availability
100 ft (30.5 m) and
1000 ft (305 m) lengths

Approvals
• UL AWM 21270 (600 V, 105°C)
• UL VW-1
• CE
• CSA AWM I/II A/B
• RoHS Compliant
• REACH Compliant
• WEEE
• Suitable for use in NFPA 79 applications
• IEC 60332-2 Flame Behavior

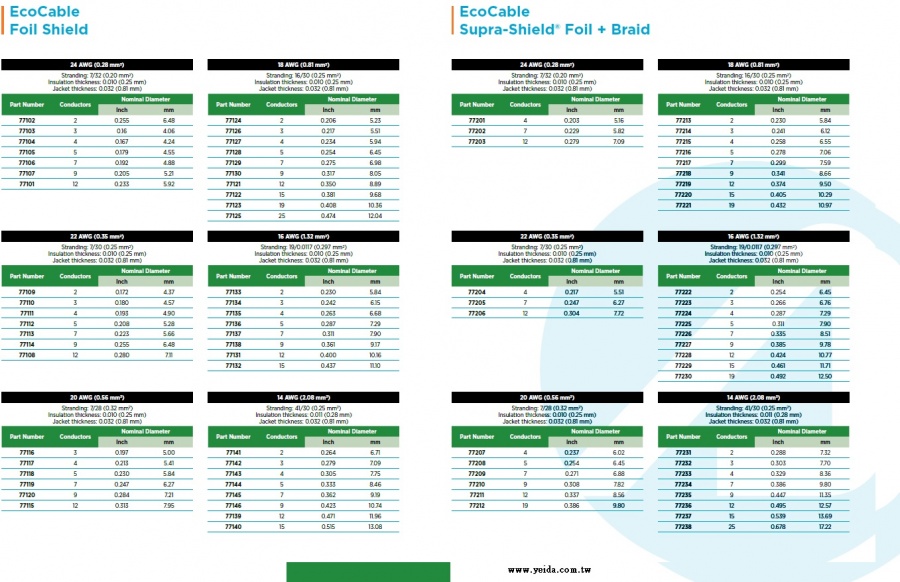

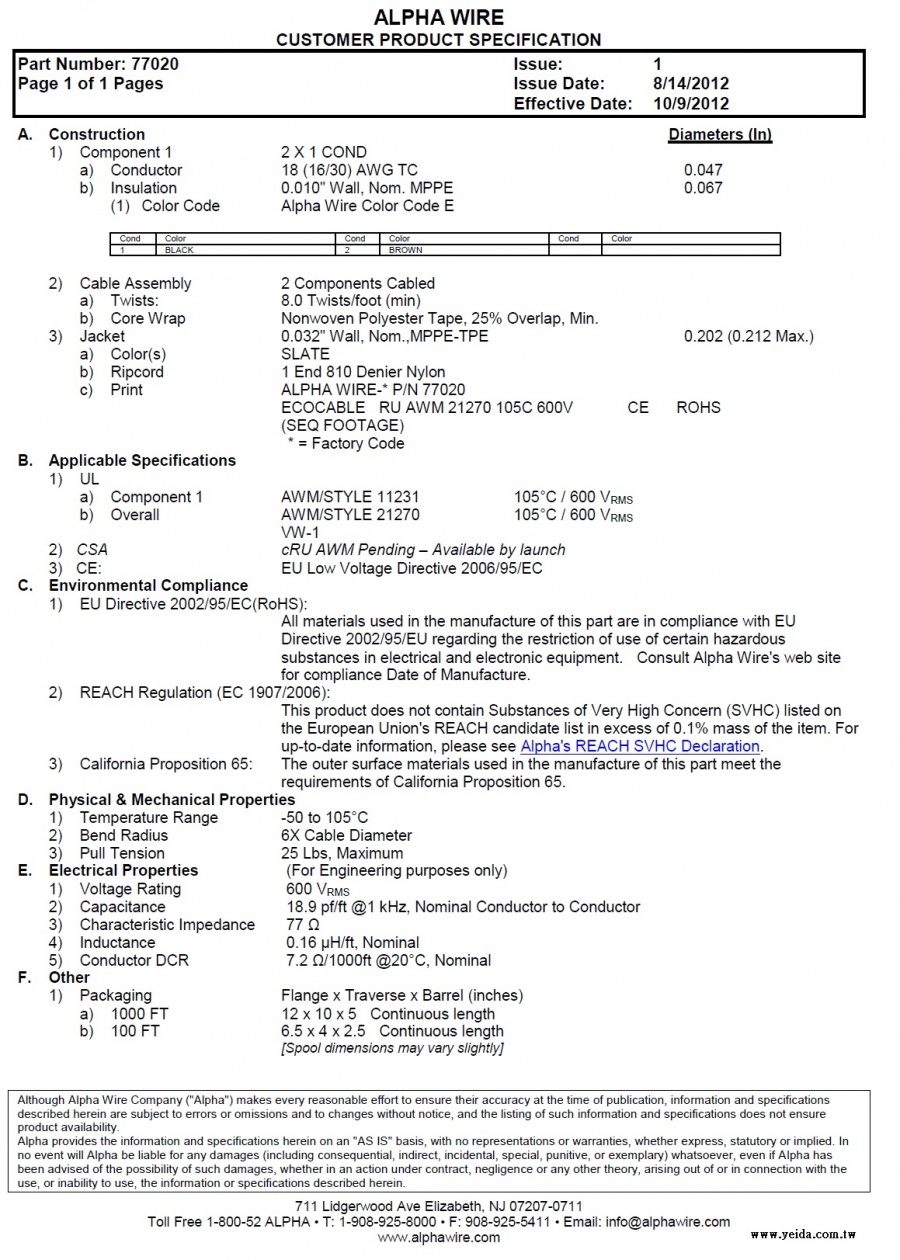

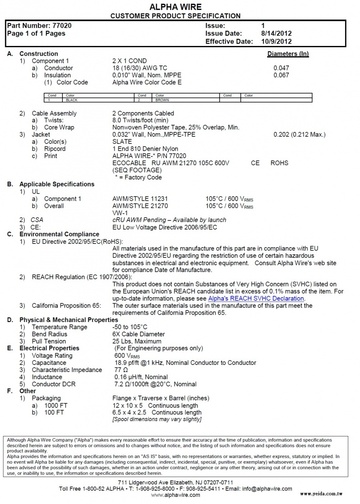

A. Construction Diameters (In)
1) Component 1 2 X 1 COND
a) Conductor 18 (16/30) AWG TC 0.047
b) Insulation 0.010" Wall, Nom. MPPE 0.067
2) Cable Assembly 2 Components Cabled
a) Twists: 8.0 Twists/foot (min)
b) Core Wrap Nonwoven Polyester Tape, 25% Overlap, Min.
3) Jacket 0.032" Wall, Nom.,MPPE-TPE 0.202 (0.212 Max.)
a) Color(s) SLATE
b) Ripcord 1 End 810 Denier Nylon
c) Print ALPHA WIRE-* P/N 77020
ECOCABLE RU AWM 21270 105C 600V CE ROHS
(SEQ FOOTAGE) * = Factory Code
　

B. Applicable Specifications
1) UL
a) Component 1 AWM/STYLE 11231 105°C / 600 VRMS
b) Overall AWM/STYLE 21270 105°C / 600 VRMS VW-1
2) CSA cRU AWM Pending – Available by launch
3) CE: EU Low Voltage Directive 2006/95/EC
　

C. Environmental Compliance
1) EU Directive 2002/95/EC(RoHS):
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture.
2) REACH Regulation (EC 1907/2006):
This product does not contain Substances of Very High Concern (SVHC) listed on the European Unions REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alphas REACH SVHC Declaration.
3) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
　

D. Physical & Mechanical Properties
1) Temperature Range -50 to 105°C
2) Bend Radius 6X Cable Diameter
3) Pull Tension 25 Lbs, Maximum
　

E. Electrical Properties (For Engineering purposes only)
1) Voltage Rating 600 VRMS
2) Capacitance 18.9 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Characteristic Impedance 77 Ω
4) Inductance 0.16 μH/ft, Nominal
5) Conductor DCR 7.2 Ω/1000ft @20°C, Nominal

F. Other
1) Packaging Flange x Traverse x Barrel (inches)
a) 1000 FT 12 x 10 x 5 Continuous length
b) 100 FT 6.5 x 4 x 2.5 Continuous length
[Spool dimensions may vary slightly]
