    ALPHA- Medical Devices Wire and Cable EcoWire™ hook-up wire 可充分回收利用醫療設備應用電子線
    看原圖
    		MEDICAL-ECOWIRE


    商品編號: ALPHA-Medical-EcoWire

    ALPHA- Medical Devices Wire and Cable EcoWire™ hook-up wire 可充分回收利用醫療設備應用電子線


    Alpha Wire 的EcoWire 是电子连接线的最新发明。作为真正的工程性突破，EcoWire是可以充分回收利用的电子连接线。

    EcoWire 的优势在于它独特的绝缘层——一种改良型聚丙烯乙醚（mPPE）热塑性材料。改良型聚丙烯乙醚绝缘层不含卤素和任何重金属颜料，可以确保制造商符合《废弃电气电子设备》（WEEE）的要求。

    除环保外，EcoWire 还具有许多性能优势，包括：

    • 更 好的绝缘强度
    • 较 广 的 适用 温度范围，符合 VW-1
    • 比重 低
    • 更持久耐用 ， 耐磨损和挤压的性能提升 10 倍
    • 直径缩小达 45%
    • 重量减轻达 40%
    • 可充分回收利用

    如果您在寻找更高性能的环保型电线，EcoWire 产品可以为您提供解决方案。

    Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable.

    EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.

    In addition to its ecological benefits, EcoWire brings many performance advantages, including:

    • Better dielectric strength
    • Wide temperature range that meets VW-1
    • Low specific gravity
    • More durable with up to 10x better abrasion and pinch resistance
    • Up to 45% smaller diameter
    • Up to 40% lighter
    • Fully Recyclable

    If you are looking for a higher functioning wire that won’t compromise the environment, EcoWire is your solution

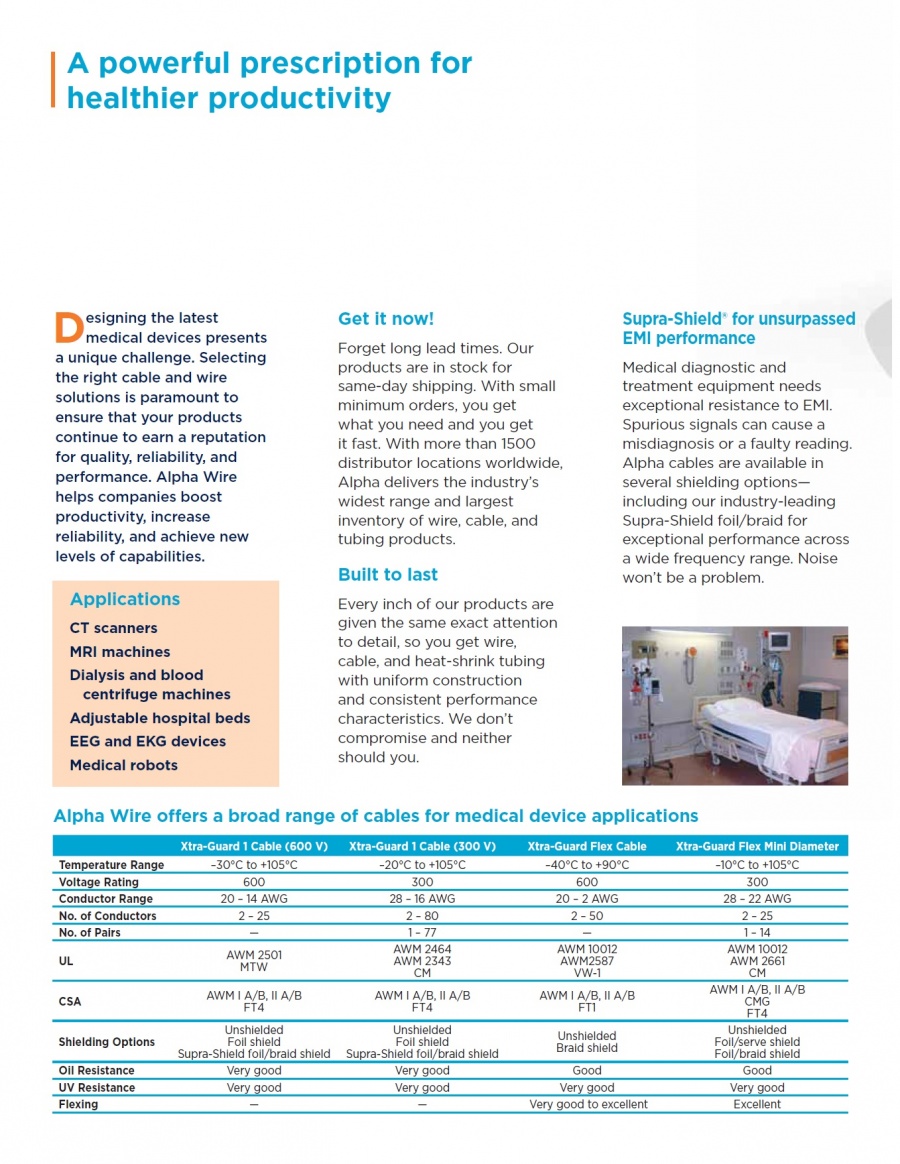

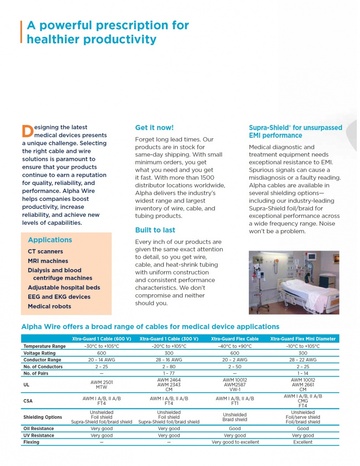

    Designing the latest medical devices presents a unique challenge. Selecting
    the right cable and wire solutions is paramount to ensure that your products
    continue to earn a reputation for quality, reliability, and performance. Alpha Wire
    helps companies boost productivity, increase reliability, and achieve new
    levels of capabilities.

    Supra-Shield® for unsurpassed
    EMI performance
    Medical diagnostic and treatment equipment needs exceptional resistance to EMI.
    Spurious signals can cause a misdiagnosis or a faulty reading. Alpha cables are available in
    several shielding options— including our industry-leading Supra-Shield foil/braid for
    exceptional performance across a wide frequency range. Noise won’t be a problem.
    　

    Applications
    CT scanners
    MRI machines
    Dialysis and blood
    centrifuge machines
    Adjustable hospital beds
    EEG and EKG devices
    Medical robots

      Part # Type Shielding Voltage　 AWG # of Elements



    		 Jacket Diameter
    6710 600 28 7/36 0.01 0.034 mPPE CE - CE Conformance, CSA - AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6711 600 26 7/34 0.01 0.038 mPPE
    6712 600 24 7/32 0.01 0.043 mPPE CE - CE Conformance, CSA - AWM I A/B, IEC 60332-2 Flame Behavior, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
    6713 600 22 7/30 0.01 0.049 mPPE
    6714 600 20 10/30 0.01 0.055 mPPE
    6715 600 18 16/30 0.01 0.067 mPPE
    6715S 600 18 Solid 0.01 0.059 mPPE
    6716 600 16 26/30 0.011 0.081 mPPE
    6717 600 14 41/30 0.011 0.096 mPPE
    6717S 600 14 Solid 0.011 0.086 mPPE
    6718 600 12 65/30 0.012 0.117 mPPE
    6719 600 10 105/30 0.012 0.142 mPPE CE - CE Conformance, CSA - AWM I A/B, IEC 60332-1 Flame Behavior, IEC 60332-2 Flame Behavior, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1
      Part # Type Shielding Voltage　 AWG # of Elements



    		 Jacket Diameter
    6820 300V 28 7/36 0.008 0.031 mPPE CE - CE Conformance, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, Suitable for ISO 6722
    6821 300V 26 7/34 0.008 0.035 mPPE
    6822 300V 24 7/32 0.008 0.040 mPPE
    6823 300V 22 7/30 0.008 0.046 mPPE
    6824 300V 20 7/28 0.008 0.054 mPPE
    6825 300V 18 19/.0092 0.008 0.062 mPPE
    6826 300V 17 19/30 0.008 0.066 mPPE
    6827 300V 16 19/29 0.01 0.076 mPPE
    6828 300V 15 19/28 0.01 0.083 mPPE
    6829 300V 14 19/27 0.012 0.095 mPPE
    6830 300V 12 19/25 0.015 0.12 mPPE
    6831 300V 10 19/23 0.017 0.147 mPPE
