    ALPHA- Pharmaceutical Manufacturing Series FIT Wire Management 醫藥廠設備應用電線管理
    看原圖
    		PHARMACEUTICAL-FIT


    商品編號: ALPHA-Pharmaceutical-FIT-Management

    ALPHA- Pharmaceutical Manufacturing Series FIT Wire Management 醫藥廠設備應用電線管理


    Designing the latest medical devices presents a unique challenge. Selecting
    the right cable and wire solutions is paramount to ensure that your products
    continue to earn a reputation for quality, reliability, and performance. Alpha Wire
    helps companies boost productivity, increase reliability, and achieve new
    levels of capabilities.

    Supra-Shield® for unsurpassed
    EMI performance
    Medical diagnostic and treatment equipment needs exceptional resistance to EMI.
    Spurious signals can cause a misdiagnosis or a faulty reading. Alpha cables are available in
    several shielding options— including our industry-leading Supra-Shield foil/braid for
    exceptional performance across a wide frequency range. Noise won’t be a problem.
    　

    Applications
    CT scanners
    MRI machines
    Dialysis and blood
    centrifuge machines
    Adjustable hospital beds
    EEG and EKG devices
    Medical robot

    Better wire management means better harnesses

    Bringing order to wire harnesses and cable routing means a system that is more reliable, easier to fabricate, and simpler to maintain. Let Alpha Wire help you solve wire management problems. Need additional protection from abrasion? Our woven sleeves are tough and flexible. For additional resistance to chemicals, oils, and solvents, our flexible tubing offers exceptional performance and operates at temperatures as high as 260°C. Our braided shields are effective and easy to use for additional EMI protection or a ground connection.

    FIT Wire Management Applications include:

    • Harnesses
    • Routing
    • Organizing
    • Shielding
    • Grounding

    FIT Product Portfolio Brochure

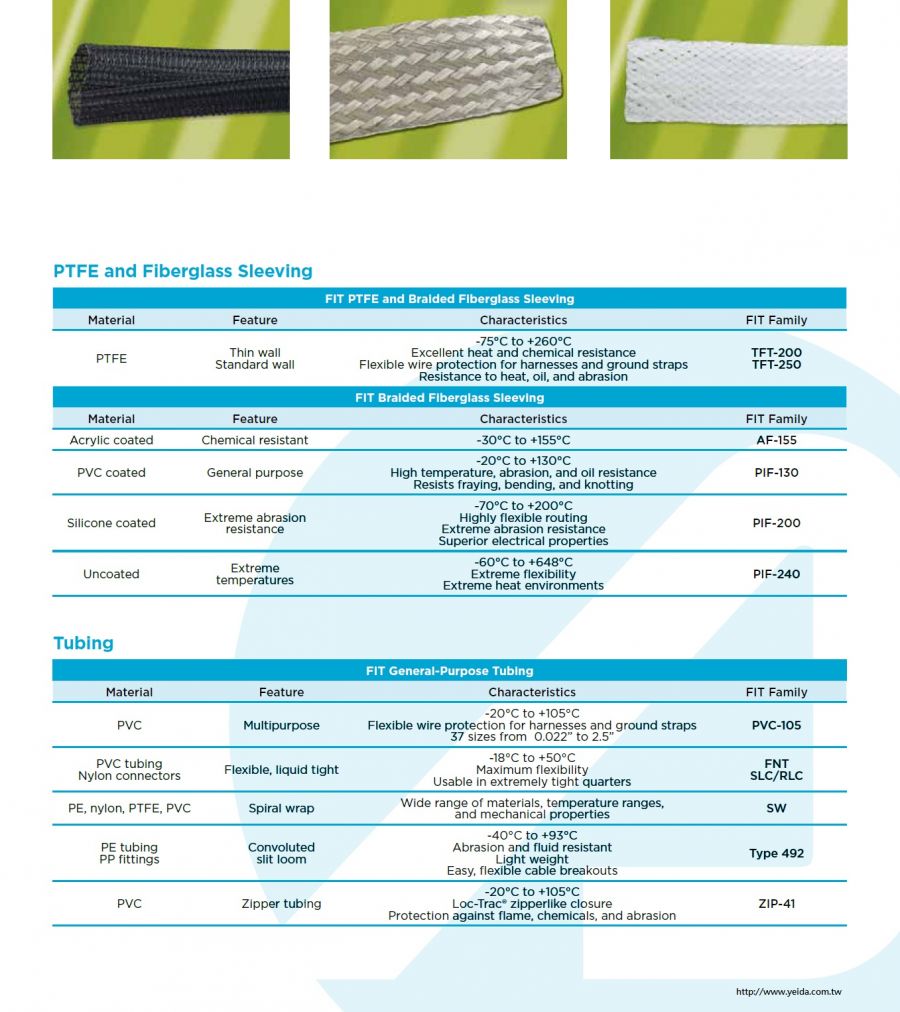

    Types of FIT® Wire Management
    • Sleeving

      Alpha has a sleeving for your application with options that are great for flexible wire harnesses, heat protection, and defense against chemicals or abrasion.

    • Tubing

      Offering protection from flammability, high heat, abrasion, and chemicals. Alpha tubing has the size for your wire and cable routing needs.

    • Braid

      Alpha braid is an exceptional, low resistance way to create a point-to-point ground strap. In retrofit applications, braid is an ideal way to install additional shielding to your cable.

    • Lacing Tape

      A great, economical way to easily bundle wire and cable. Available in many different military grade finishes and colors.

    • EMI Tape

      Using highly conductive, pressure sensitive adhesive, Alpha’s EMI tape provides excellent EMI/RFI shielding.

    更好的电线管理意味着有序的线束

    整齐的线束和电缆布线，意味着系统性能更可靠、制造更容易、维护更简单。让 Alpha Wire 帮助您解决电线管理问题。需要额外的磨损保护吗？我们的编织套管坚固，有柔性。我们的柔性套管对于化学制剂、油和溶剂具有优异的抗腐蚀性，并可在高达 260°C 的温度下工作。我们的编织屏蔽层对额外的电磁干扰防护或接地非常有效，操作简便。

    FIT 电线管理应用包括：

    • 线束
    • 布线
    • 组织
    • 屏蔽
    • 接地

    FIT 电线管理宣传册

    类型FIT® 电线管理
    • 套管

      Alpha拥有适合柔性线束、防热以及抗化学制剂或磨损的护套。

    • 管道

      Alpha套管产品尺寸齐全，具有抗燃烧、耐高温、防磨损和腐蚀，能满足您电线和电缆的布线要求。

    • 编织带

      Alpha 编织带性能卓越，电阻低，用于制造点到点接地母线。在翻修应用中，编织带是为电缆安装额外屏蔽层的理想方式。

    • 接合带

      轻松绑扎电线和电缆的经济、高效方式。可提供大量不同军用级光洁度和颜色。

    • 电磁干扰防护带

      Alpha 的电磁干扰防护带使用高电导性的压敏胶粘剂，提供优异的电磁干扰/射频干扰屏蔽

      Part #



    		 Material



    		 ID　 Expanded ID Temperature Colors　
    AF-155-12 Fiberglass Acrylic 0.085   -30 to 155 Natural ASTM D 372, MIL-I-3190/3, NEMA TF-1, UL 1441, UL 746B, UL AF-155A Grade A
    AF-155-13 Fiberglass Acrylic 0.076   -30 to 155 Natural
    AF-155-14 Fiberglass Acrylic 0.066   -30 to 155 Natural
    AF-155-15 Fiberglass Acrylic 0.059   -30 to 155 Natural
    AF-155-16 Fiberglass Acrylic 0.053   -30 to 155 Natural
    AF-155-18 Fiberglass Acrylic 0.042   -30 to 155 Natural
    AF-155-1IN Fiberglass Acrylic 1.018   -30 to 155 Natural
    AF-155-2 Fiberglass Acrylic 0.263   -30 to 155 Natural
    AF-155-20 Fiberglass Acrylic 0.034   -30 to 155 Natural
    AF-155-22 Fiberglass Acrylic 0.027   -30 to 155 Natural
    AF-155-24 Fiberglass Acrylic 0.022   -30 to 155 Natural
    AF-155-3 Fiberglass Acrylic 0.234   -30 to 155 Natural
    AF-155-3/4 Fiberglass Acrylic 0.768   -30 to 155 Natural
    AF-155-3/8 Fiberglass Acrylic 0.387   -30 to 155 Natural
    AF-155-4 Fiberglass Acrylic 0.206   -30 to 155 Natural
    AF-155-5 Fiberglass Acrylic 0.186   -30 to 155 Natural
    AF-155-5/8 Fiberglass Acrylic 0.64   -30 to 155 Natural
    AF-155-6 Fiberglass Acrylic 0.166   -30 to 155 Natural
    AF-155-7 Fiberglass Acrylic 0.148   -30 to 155 Natural
    AF-155-7/16 Fiberglass Acrylic 0.45   -30 to 155 Natural
      Part # Material ID



    		 Wall Thickness　 Temperature Colors
    PVC-105-19 PVC 0.038 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1IN PVC 1 0.035 -20 to 105 Black, Clear
    PVC-105-2 PVC 0.263 0.02 -20 to 105 Black, Clear
    PVC-105-20 PVC 0.034 0.016 -20 to 105 Black, Clear
    PVC-105-2-1/2 PVC 2.5 0.07 -20 to 105 Black
    PVC-105-22 PVC 0.027 0.012 -20 to 105 Black, Clear
    PVC-105-24 PVC 0.022 0.012 -20 to 105 Black, Clear
    PVC-105-2IN PVC 2 0.06 -20 to 105 Black
    PVC-105-3 PVC 0.234 0.02 -20 to 105 Black, Clear
    PVC-105-3/4 PVC 0.75 0.035 -20 to 105 Black, Clear
    PVC-105-3/8 PVC 0.375 0.025 -20 to 105 Black, Clear
    PVC-105-4 PVC 0.208 0.02 -20 to 105 Black, Clear
    PVC-105-5 PVC 0.186 0.02 -20 to 105 Black, Clear
    PVC-105-5/16 PVC 0.312 0.025 -20 to 105 Black, Clear
    PVC-105-5/8 PVC 0.625 0.03 -20 to 105 Black, Clear
    PVC-105-6 PVC 0.166 0.02 -20 to 105 Black, Clear
    PVC-105-7 PVC 0.148 0.02 -20 to 105 Black, Clear
    PVC-105-7/16 PVC 0.438 0.025 -20 to 105 Black, Clear
    PVC-105-7/8 PVC 0.875 0.035 -20 to 105 Black, Clear
    PVC-105-8 PVC 0.133 0.02 -20 to 105 Black, Clear
