    首頁 > > ALPHA- Medical Devices Wire and Cable Portfolio 健康醫療設備應用控制電纜

    ALPHA-Pharmaceutical Manufacturing Series SF Flexible Servo Cables 醫藥廠設備應用柔韌性電源控制電纜
    看原圖
    		PHARMACEUTICAL-SF


    商品編號: ALPHA-Pharmaceutical-SF

    ALPHA-Pharmaceutical Manufacturing Series SF Flexible Servo Cables 醫藥廠設備應用柔韌性電源控制電纜


    Alpha Wire's Series SF cables are designed specifically for servo motors and servo drives. Series SF cable builds upon the success of our Series S cable by substantially increasing flexibility.

    Industrial Series SF Key features:
    　

    Power cable

    • 4-conductor power cable, with or without brake pair
    • 18 – 8 AWG
    • Thermoplastic elastomer jacket
    • SF Series offers increased flexibility
    • UL Type TC-ER (600V)
    • UL Type WTTC (1000V)
    • Sunlight resistant
    • UL Oil Res I/II

    Control cable

    • 3 to 6 pairs for resolver applications
    • 9 conductors for encoder applications
    • 20 AWG
    • Polyolefin insulation
    • Thermoplastic elastomer jacket

    Alpha Wire 的 S 和 SF 系列电缆专为伺服电动机和伺服驱动器设计。SF 系列电缆吸取了我们 S 系列电缆的成果，大幅提高了柔韧性。

    工业系列 S 和 SF 的主要特性：

    • Power cable 电源线
    • 四芯电源线，带或不带制动线对
    • 线径为 18 到 8 AWG
    • 热塑性橡胶护套
    • SF 系列具有更高的柔韧性
    • UL 类型 TC-ER（600 伏）
    • UL 类型 WTTC（600 伏）
    • 防紫外线
    • UL 耐油级别 I/II

    控制线

    • 分解器应用为 3 到 6 对线
    • 编码器应用为 9 根导线
    • 线径为 20 AWG
    • 聚烯烃绝缘
    • 热塑性橡胶护套

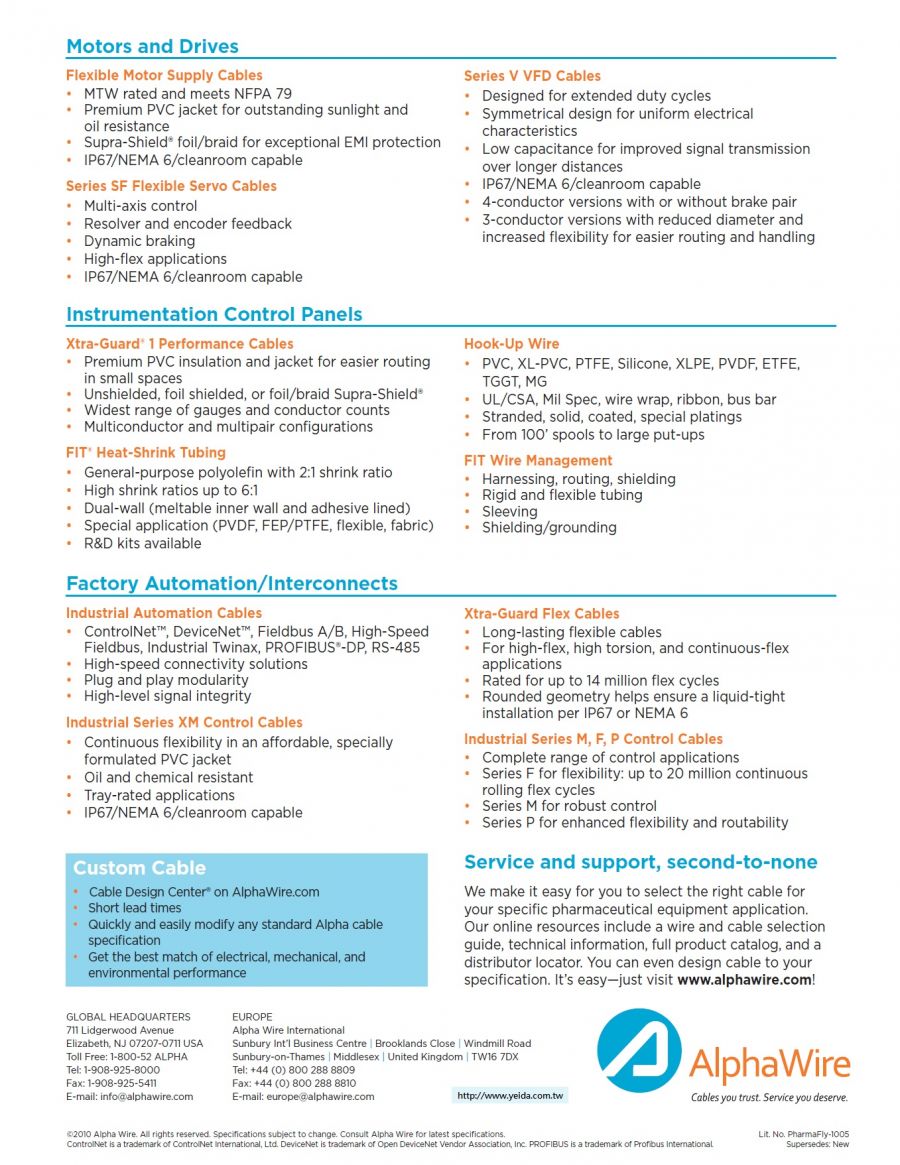

    Designing the latest medical devices presents a unique challenge. Selecting
    the right cable and wire solutions is paramount to ensure that your products
    continue to earn a reputation for quality, reliability, and performance. Alpha Wire
    helps companies boost productivity, increase reliability, and achieve new
    levels of capabilities.

    Supra-Shield® for unsurpassed
    EMI performance
    Medical diagnostic and treatment equipment needs exceptional resistance to EMI.
    Spurious signals can cause a misdiagnosis or a faulty reading. Alpha cables are available in
    several shielding options— including our industry-leading Supra-Shield foil/braid for
    exceptional performance across a wide frequency range. Noise won’t be a problem.
    　

    Applications
    CT scanners
    MRI machines
    Dialysis and blood
    centrifuge machines
    Adjustable hospital beds
    EEG and EKG devices
    Medical robots

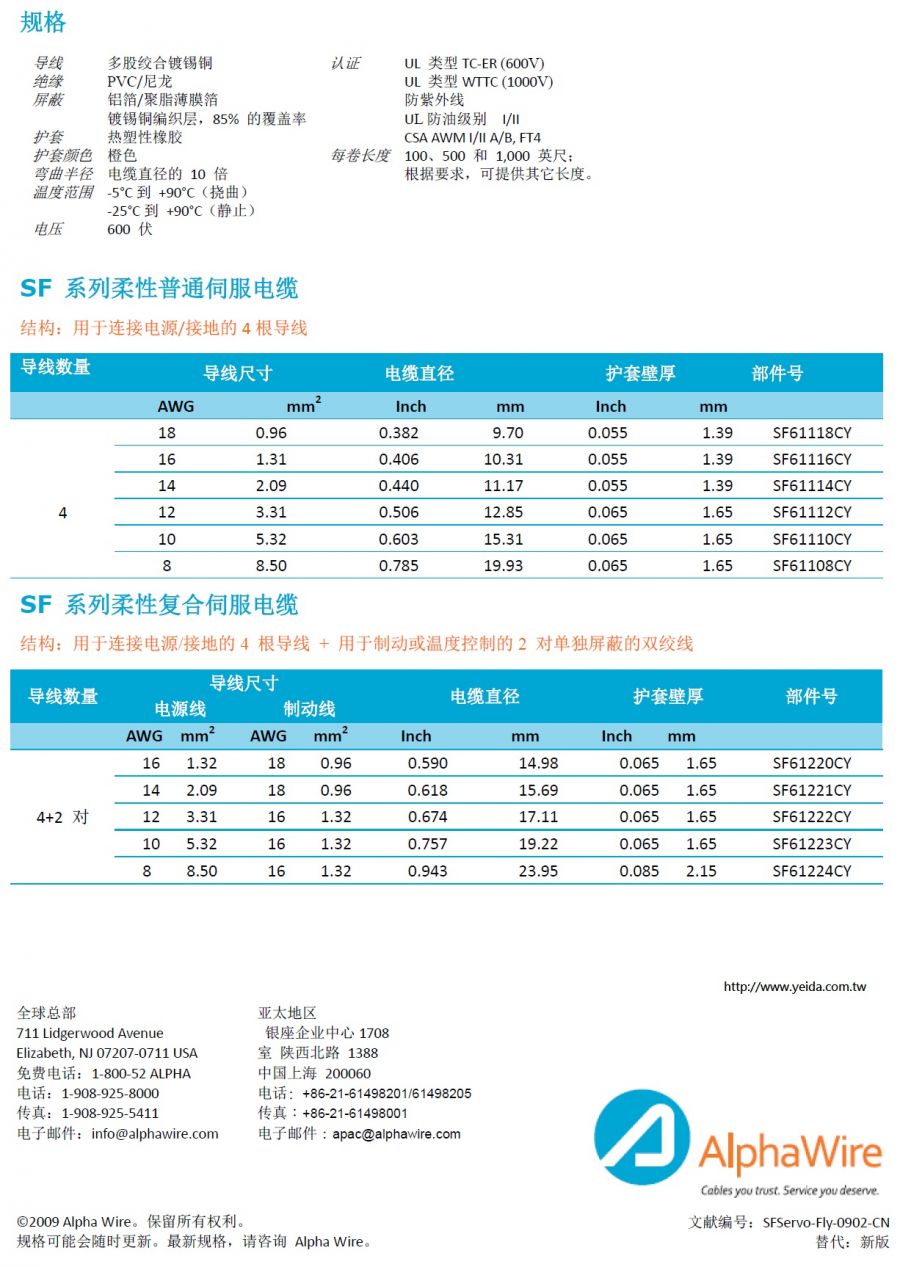

      Part #



    		 Type



    		 Shielding　 Voltage AWG # of Elements



    		 Jacket Diameter
    SF61108CY Multi-Conductor FOIL/BRAID 600 8 4 0.785 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61110CY Multi-Conductor FOIL/BRAID 600 10 4 0.603 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61112CY Multi-Conductor FOIL/BRAID 600 12 4 0.506 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61114CY Multi-Conductor FOIL/BRAID 600 14 4 0.44 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I, UL Sunlight Resistant, UL Type WTTC
    SF61116CY Multi-Conductor FOIL/BRAID 600 16 4 0.406 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61118CY Multi-Conductor FOIL/BRAID 600 18 4 0.382 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61220CY Multi-Conductor FOIL/BRAID 600 16 4, 2PR 0.59 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61221CY Multi-Conductor FOIL/BRAID 600 14 4, 2PR 0.618 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61222CY Multi-Conductor FOIL/BRAID 600 12 4, 2PR 0.674 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL WTTC
    SF61223CY Multi-Conductor FOIL/BRAID 600 10 4, 2PR 0.757 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
    SF61224CY Multi-Conductor FOIL/BRAID 600 8 4, 2PR 0.943 CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
