    ALPHA- Military-Grade Wire and Cable Manhattan™ Temperature Cable 軍事國防等級設備應用耐高溫控制電纜線
    看原圖
    HIGH-TEMPERATURE



    商品編號: ALPHA-High-Temperature

    ALPHA- Military-Grade Wire and Cable Manhattan™ Temperature Cable 軍事國防等級設備應用耐高溫控制電纜線

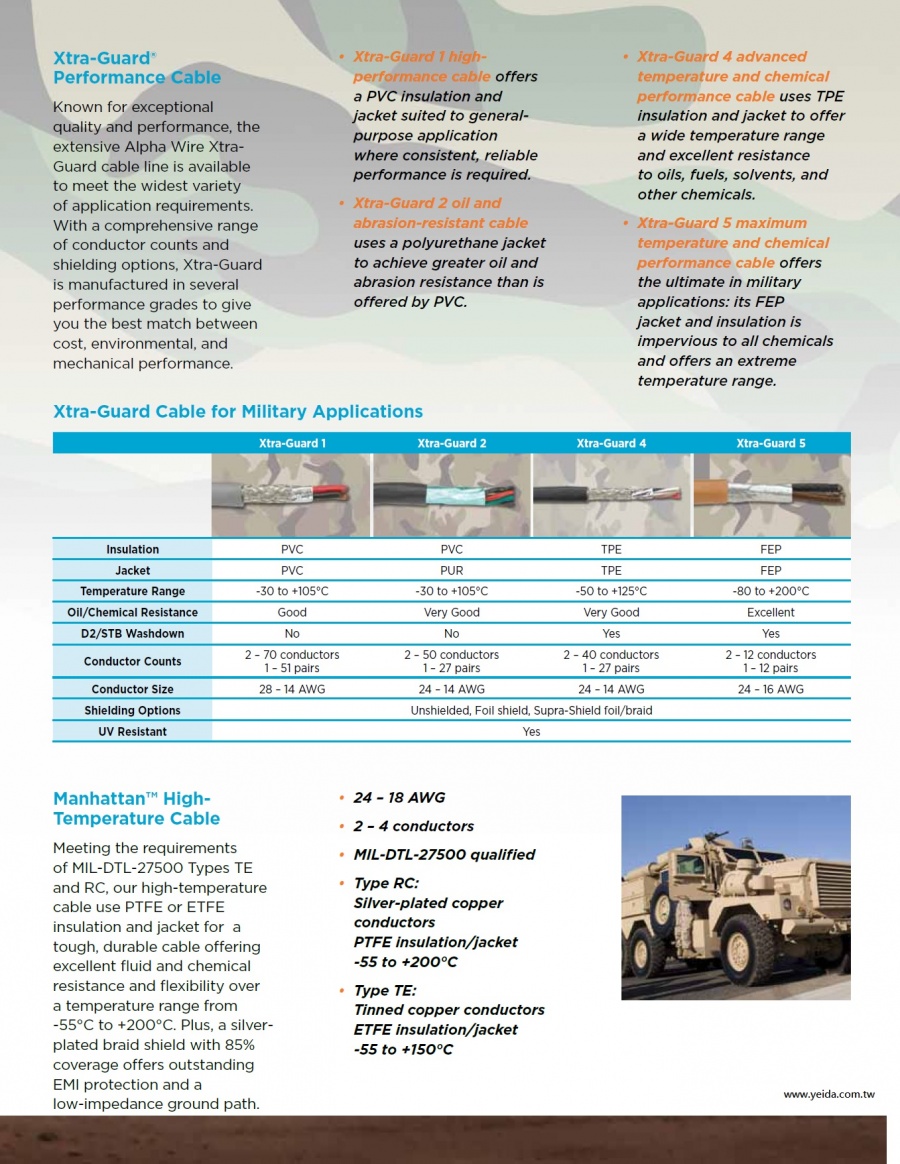

    Manhattan™ High- Temperature Cable
    Meeting the requirements of MIL-DTL-27500 Types TE
    and RC, our high-temperature cable use PTFE or ETFE
    insulation and jacket for a tough, durable cable offering
    excellent fluid and chemical resistance and flexibility over
    a temperature range from -55°C to +200°C. Plus, a silverplated
    braid shield with 85% coverage offers outstanding
    EMI protection and a low-impedance ground path.


    • 24 – 18 AWG
    • 2 – 4 conductors
    • MIL-DTL-27500 qualified
    • Type RC:

    Silver-plated copper conductors
    PTFE insulation/jacket -55 to +200°C
    • Type TE:
    Tinned copper conductors
    ETFE insulation/jacket -55 to +150°C



    Alpha Wire supports military equipment with tough, reliable, highperformance
    wire, cable, and tubing. Since equipment must work reliably under extremes
    of temperature, shock and vibration, and exposure to oils, fuels, and other
    chemicals, mission readiness requires electrical and electronic systems matched to
    the hazards of the battlefield and the needs of modern military capabilities.


    Today’s forces rely on realtime situation awareness at every level to achieve tactical
    advantage through unmatched command and control. As the role of electronics and
    networking becomes integral to force deployment, the need for advanced cabling
    solutions becomes mandatory. And Alpha Wire is respected throughout the industry as
    being a premier provider of products with uncompromising performance.


    Supported applications:
    • Tactical communications equipment
    • Command and control systems
    • Intelligence information systems
    • Advanced radar units
    • Target acquisition and tracking systems
    • Automated weapons control
    • IED and mine detection
    • High-level detection equipment
    • Ground combat vehicles
    • Ground support vehicles
    • Unmanned vehicles


      Part # Type  Shielding Voltage AWG # of Elements



    Jacket Material



    Insulation Material



    Jacket Diameter

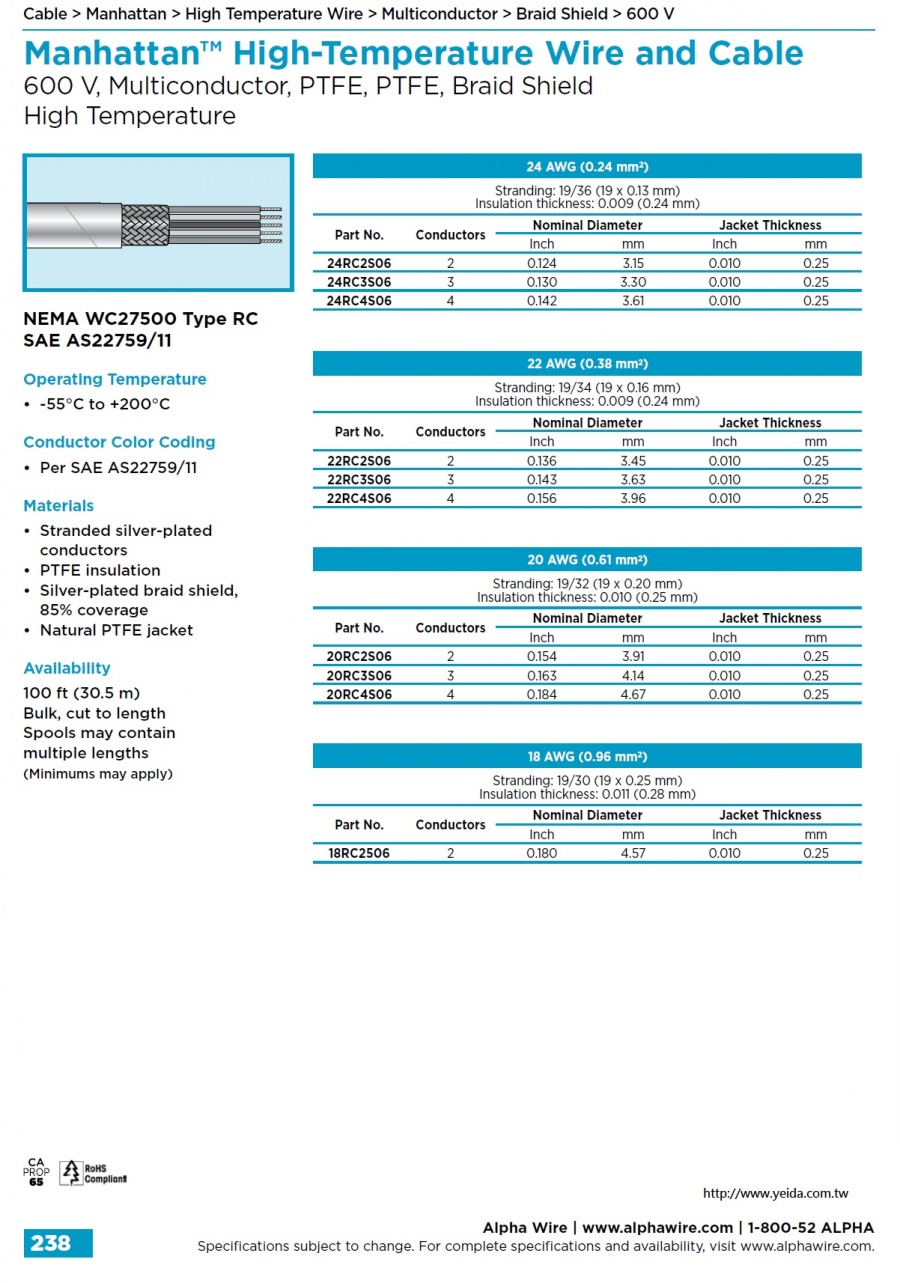

    18RC2S06 Conductor BRAID 600 18 2 PTFE PTFE 0.182 NEMA WC27500 Type RC, SAE-AS22759/11
    20RC2S06 Conductor BRAID 600 20 2 PTFE PTFE 0.158
    20RC3S06 Conductor BRAID 600 20 3 PTFE PTFE 0.167
    20RC4S06 Conductor BRAID 600 20 4 PTFE PTFE 0.183
    22RC2S06 Conductor BRAID 600 22 2 PTFE PTFE 0.138
    22RC3S06 Conductor BRAID 600 22 3 PTFE PTFE 0.146
    22RC4S06 Conductor BRAID 600 22 4 PTFE PTFE 0.159
    24RC2S06 Conductor BRAID 600 24 2 PTFE PTFE 0.124
    24RC3S06 Conductor BRAID 600 24 3 PTFE PTFE 0.131
    24RC4S06 Conductor BRAID 600 24 4 PTFE PTFE 0.142

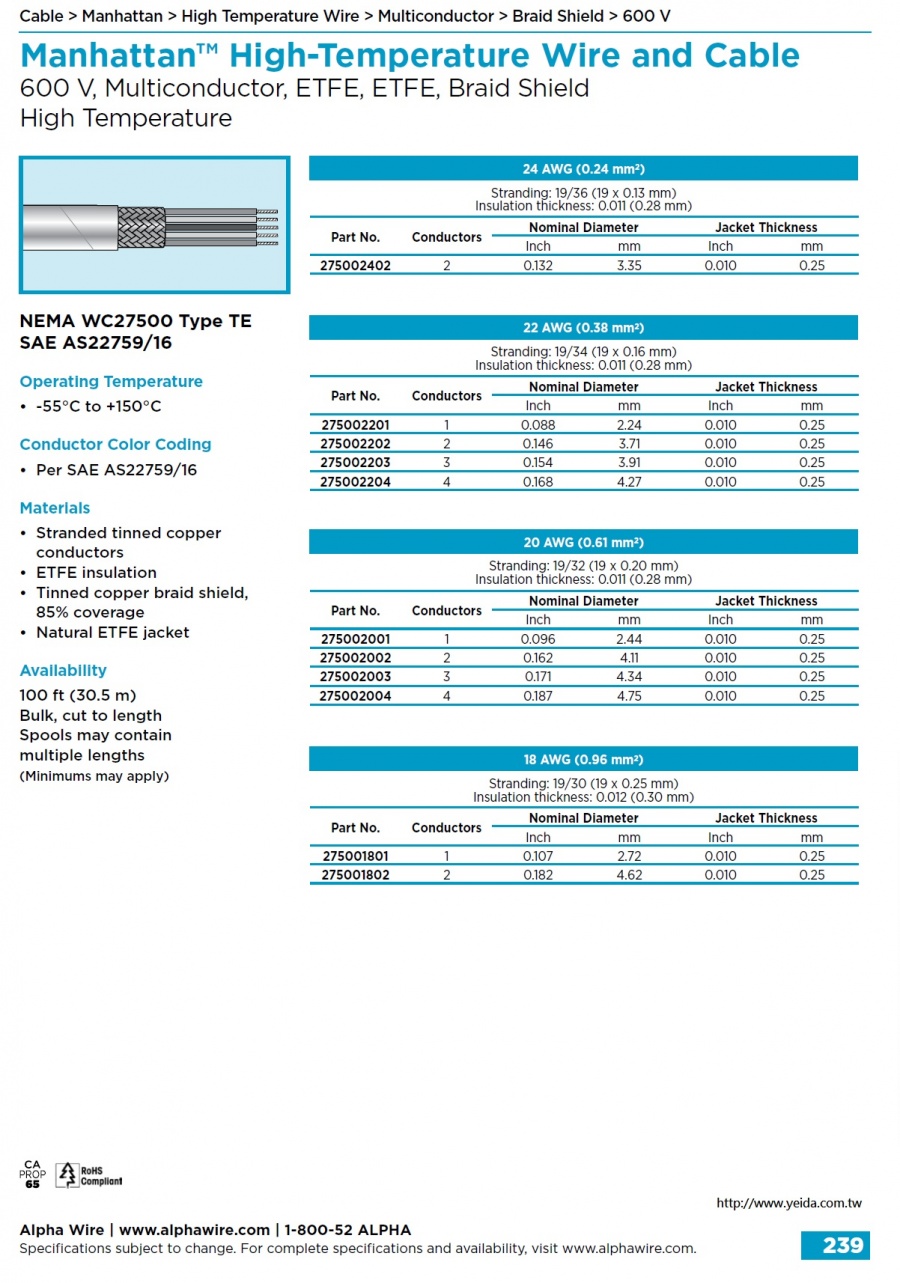

    275001801 Conductor BRAID 600 18 1 ETFE PTFE 0.107 MIL-C-27500, MIL-W-22759/16
    275001802 Conductor BRAID 600 18 2 ETFE PTFE 0.186
    275002001 Conductor BRAID 600 20 1 ETFE PTFE 0.096
    275002002 Conductor BRAID 600 20 2 ETFE PTFE 0.158
    275002003 Conductor BRAID 600 20 3 ETFE PTFE 0.167
    275002004 Conductor BRAID 600 20 4 ETFE PTFE 0.189
    275002201 Conductor BRAID 600 22 1 ETFE PTFE 0.088
    275002202 Conductor BRAID 600 22 2 ETFE PTFE 0.142
    275002203 Conductor BRAID 600 22 3 ETFE PTFE 0.15
    275002204 Conductor BRAID 600 22 4 ETFE PTFE 0.169


      Part # Type  Shielding Voltage AWG # of Elements



    Jacket Material



    Insulation Material



    Jacket Diameter
    275002402 Conductor BRAID 600 24 2 ETFE PTFE 0.128 MIL-C-27500, MIL-W-22759/16
    71602 Conductor BRAID 600 16 2 FEP PTFE 0.203 MIL-W-16878/4
    71801 Conductor BRAID 600 18 1 FEP PTFE 0.11
    71802 Conductor BRAID 600 18 2 FEP PTFE 0.183
    72001 Conductor BRAID 600 20 1 FEP PTFE 0.1
    72203 Conductor BRAID 600 22 3 FEP PTFE 0.149
    72402 Conductor BRAID 600 24 2 FEP PTFE 0.129
    M1201 Conductor BRAID 600 26 1 PTFE PTFE 0.081 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBEE
    M1202 Conductor BRAID 600 26 2 PTFE PTFE 0.124
    M1203 Conductor BRAID 600 26 3 PTFE PTFE 0.13
    M1204 Conductor BRAID 600 26 4 PTFE PTFE 0.14
    M1211 Conductor BRAID 600 24 1 PTFE PTFE 0.087
    M1212 Conductor BRAID 600 24 2 PTFE PTFE 0.136
    M1213 Conductor BRAID 600 24 3 PTFE PTFE 0.143
    M1214 Conductor BRAID 600 24 4 PTFE PTFE 0.155
    M1221 Conductor BRAID 600 22 1 PTFE PTFE 0.092
    M1222 Conductor BRAID 600 22 2 PTFE PTFE 0.146
    M1223 Conductor BRAID 600 22 3 PTFE PTFE 0.154
    M1224 Conductor BRAID 600 22 4 PTFE PTFE 0.167
    M1231 Conductor BRAID 600 20 1 PTFE PTFE 0.1
    M1232 Conductor BRAID 600 20 2 PTFE PTFE 0.158 CA Prop 65, MIL-W-16878/4 (Type E), NEMA HP3-EXBGE
    M1233 Conductor BRAID 600 20 3 PTFE PTFE 0.171
    M1234 Conductor BRAID 600 20 4 PTFE PTFE 0.186
    M1241 Conductor BRAID 600 18 1 PTFE PTFE 0.112
    M1242 Conductor BRAID 600 18 2 PTFE PTFE 0.186
    M1243 Conductor BRAID 600 18 3 PTFE PTFE 0.197
    M1244 Conductor BRAID 600 18 4 PTFE PTFE 0.215
    M1251 Conductor BRAID 600 16 1 PTFE PTFE 0.122
    M1252 Conductor BRAID 600 16 2 PTFE PTFE 0.206
    M1253 Conductor BRAID 600 16 3 PTFE PTFE 0.219
    M1254 Conductor BRAID 600 16 4 PTFE PTFE 0.24
