ALPHA-XM1617K
商品編號: ALPHA-XM1617K
ALPHA-XM0803KCY Awg(8 to 10) Wind power application Cables 堅韌超柔軟風力發電應用控制電纜

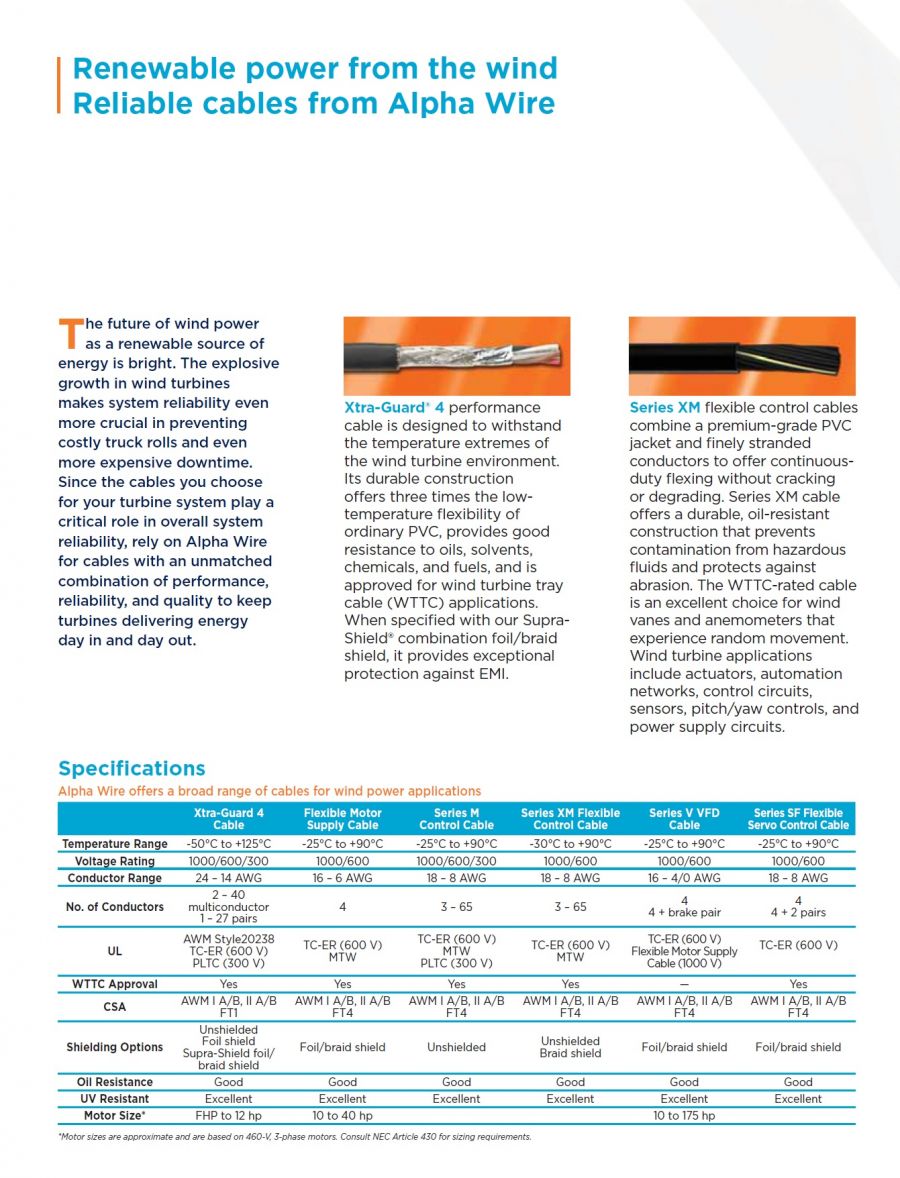

The future of wind power as a renewable source of energy is bright. The explosive
growth in wind turbines makes system reliability even more crucial in preventing
costly truck rolls and even more expensive downtime. Since the cables you choose
for your turbine system play a critical role in overall system reliability, rely on Alpha Wire
for cables with an unmatched combination of performance, reliability, and quality to keep
turbines delivering energy day in and day out.A Tougher Cable for Continuous Flex Control Applications
Series XM Flexible Control Cable is the ideal choice for medium-to-high-flex applications. Featuring a premium-grade PVC jacket, Series XM offers a durable, oil-resistant construction that prevents contamination from hazardous fluids and protects against abrasion. Plus, its optimum flexibility and performance allows it to support a variety of industrial applications, including:
- High-speed pick-and-place robotic systems
- Automated material handling equipment
- Conveyors and transfer shuttles
- Flex track installations
Available shielded or unshielded in a variety of gauge sizes, jacket colors, and conductor counts.

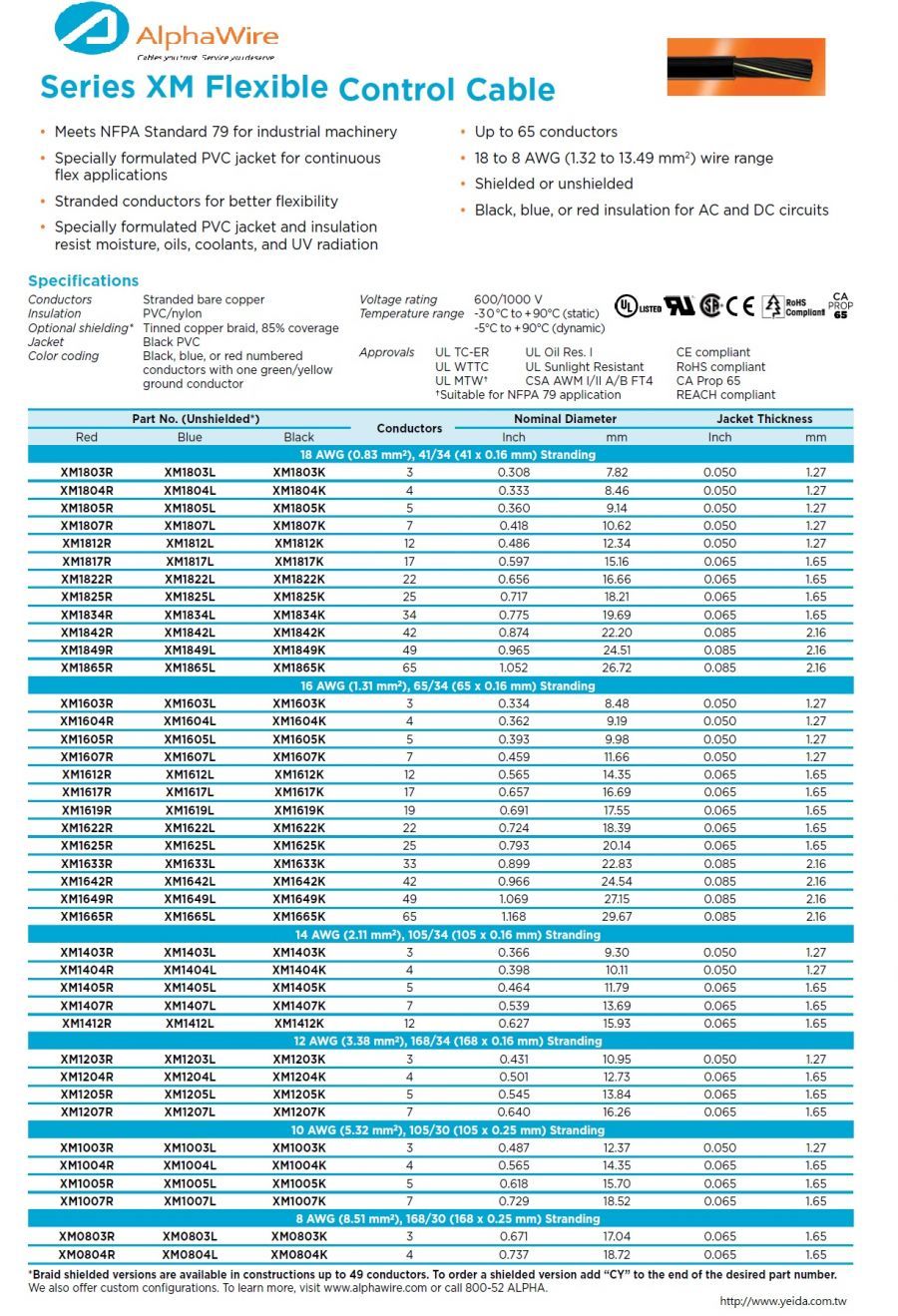

Series XM Product Breakdown:
- Meets NFPA Standard 79 for industrial machinery
- Stranded conductors for better flexibility
- Specially formulated PVC jacket and insulation for continuous flex applications and resistance to moisture, oils, coolants, and UV radiation
- Up to 65 conductors
- 8 to 18 AWG wire range
- Shielded or unshielded
- Black, blue, or red insulation for AC and DC circuits
- Rated for up to 12 million flex life cycles
1 Pitch Drive
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series V VFD Cable
Series SF Flexible Servo Cable3 Blade Pitch & Azimuth
Control System
Xtra-Guard 4 Cable
Series XM Flexible Control Cable5 Gearbox
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series V VFD Cable7 Control Box
9 Generator
Xtra-Guard 4 Cable
Series M Motor Supply Cable
Series SF Flexible Servo Cable
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series V VFD Cable
Series SF Flexible Servo Cable
Series M Motor Supply Cable2 Pitch and Azimuth Drive
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series V VFD Cable
Series SF Flexible Servo Cable4 Yaw Drive
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series V VFD Cable6 Wind Vane/Anemometer
Xtra-Guard 4 Cable
Series M Motor Supply Cable8 Inverter
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series V VFD Cable
Series SF Flexible Servo Cable
10 Pumps, Fans, Heaters
Xtra-Guard 4 Cable
Flexible Motor Supply Cable
Series M Motor Supply Cable
Series V VFD Cable
Series SF Flexible Servo CablePart # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings V16002 2 pvc -40 to 90 600 4 Cable foil_braid ca prop 65;ce;csa ft4;csa awm i_ii a_b;ul rhw-2wet_dry;ul xhhw-2wet_dry;ul tc;ul exposed run;ul direct burial;ul sun res;ul wttc V16302 2 n/a n/a 600 3 Cable double foil XM0803K 8 pvc n/a 600_1000 n/a Cable unshielded ul - tc;ul - exposed run;ul - sun res;ul - oil res i;ul - mtw;ul - wttc;csa awm ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0803KCY 8 pvc n/a 600_1000 n/a Cable braid ul - tc;ul - exposed run;ul - sun res;ul - oil res i;ul - mtw;ul - wttc;csa awm ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0803L 8 pvc n/a 600_1000 n/a Cable unshielded ul - tc;ul - exposed run;ul - sun res;ul - oil res i;ul - mtw;ul - wttc;csa - awm i_ii a_b;csa - ft4;ca prop 65;ce;rohs - rohs compliance XM0803LCY 8 pvc n/a 600_1000 n/a Cable braid ul - tc;ul - exposed run;ul - sun res;ul - oil res i;ul - mtw;ul - wttc;csa - awm i_ii a_b;csa - ft4;ca prop 65;ce;rohs - rohs compliance XM0803R 8 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0803RCY 8 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0804K 8 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0804KCY 8 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0804L 8 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0804LCY 8 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0804R 8 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM0804RCY 8 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1003K 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1003KCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1003L 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1003LCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1003R 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1003RCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1004K 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1004KCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1004L 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings XM1004LCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1004R 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1004RCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1005K 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1005KCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1005L 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1005LCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1005R 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1005RCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1007K 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1007KCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1007L 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1007LCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1007R 10 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1007RCY 10 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1203K 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1203KCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1203L 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1203LCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1203R 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1203RCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1204K 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1204KCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1204L 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1204LCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1204R 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1204RCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1205K 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1205KCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1205L 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1205LCY 12 pvc n/a 600_1000 n/a Cable braid ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1205R 12 pvc n/a 600_1000 n/a Cable unshielded ul tc;ul exposed run;ul sun res;ul oil res i;ul mtw;ul wttc;csa awm i_ii a_b;csa ft4;ca prop 65;ce;rohs - rohs compliance XM1205RCY 12 pvc n/a 600_1000 n/a Cable braid keyword: ALPHA, XM1205L Awg(8 to 10) Wind power application Cables 堅韌超柔軟風力發電應用控制電纜, Inverter, Pumps, Fans, Heaters, Generator, Pitch and Azimuth Drive, Gearbox, Xtra-Guard4,google, belden,林口石門風力發電廠, 海洋風力發電公司, ul tc, ul exposed run, ul sun res, ul oil res i, ul mtw, ul wttc, csa awm, csa ft4, ca prop 65, ce, rohs
