    ALPHA- FIT®-600 Heat-Shrink Tubing 2:1 Shrink Ratio, AMS-DTL-23053/1 Class 1 and 2 Chlorinated PO熱縮管
    看原圖
    ALPHA-FIT-600-1IN



    商品編號: ALPHA-FIT-600-1IN

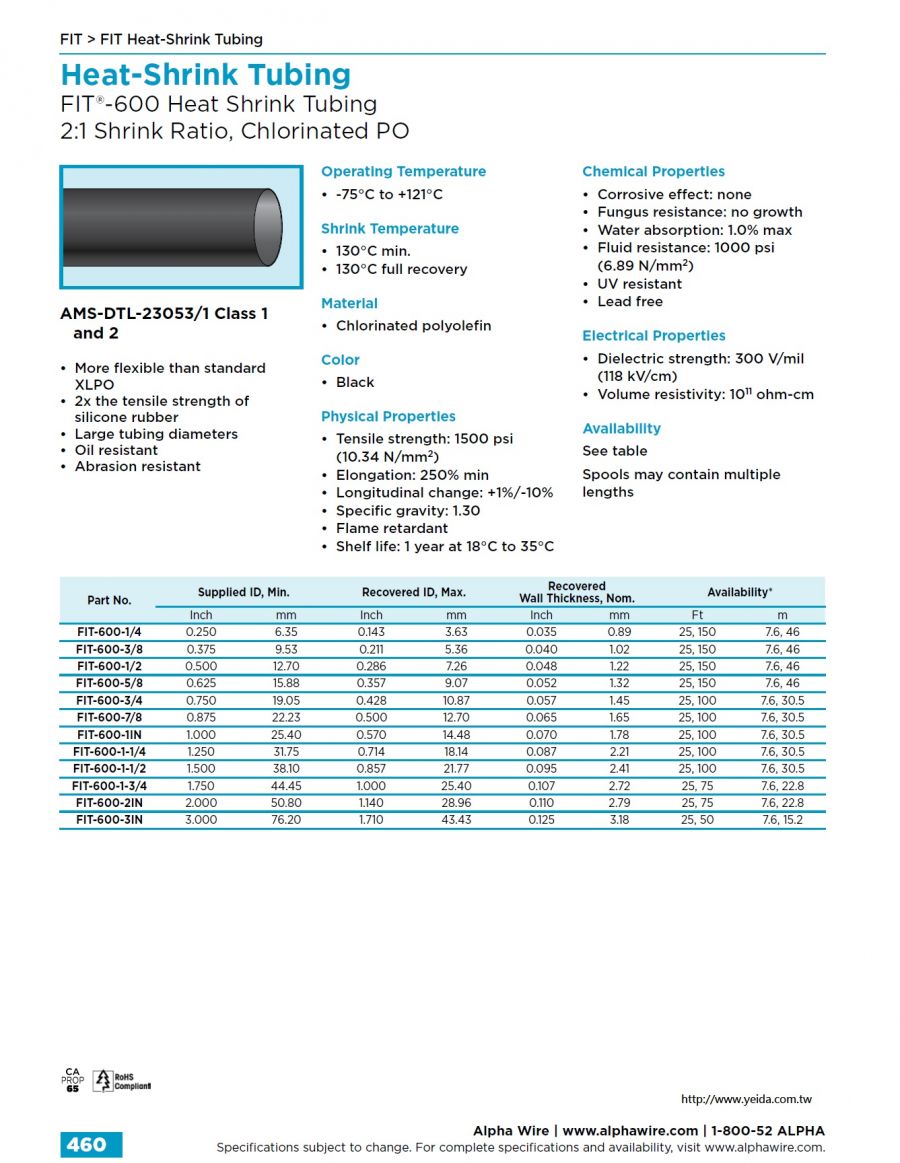

    ALPHA- FIT®-600 Heat-Shrink Tubing 2:1 Shrink Ratio, AMS-DTL-23053/1 Class 1 and 2 Chlorinated PO熱縮管



    FIT®-600 Heat Shrink Tubing
    2:1 Shrink Ratio, Chlorinated PO
    AMS-DTL-23053/1 Class 1 and 2

    • More flexible than standard XLPO
    • 2x the tensile strength of silicone rubber
    • Large tubing diameters
    • Oil resistant
    • Abrasion resistant
    Operating Temperature
    • -75°C to +121°C
    Shrink Temperature
    • 130°C min.
    • 130°C full recovery
    Material
    • Chlorinated polyolefin
    Color
    • Black
    Physical Properties
    • Tensile strength: 1500 psi (10.34 N/mm2)
    • Elongation: 250% min
    • Longitudinal change: +1%/-10%
    • Specific gravity: 1.30
    • Flame retardant
    • Shelf life: 1 year at 18°C to 35°C
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Water absorption: 1.0% max
    • Fluid resistance: 1000 psi (6.89 N/mm2)
    • UV resistant
    • Lead free
    Electrical Properties
    • Dielectric strength: 300 V/mil (118 kV/cm)
    • Volume resistivity: 1011 ohm-cm
    Availability
    See table

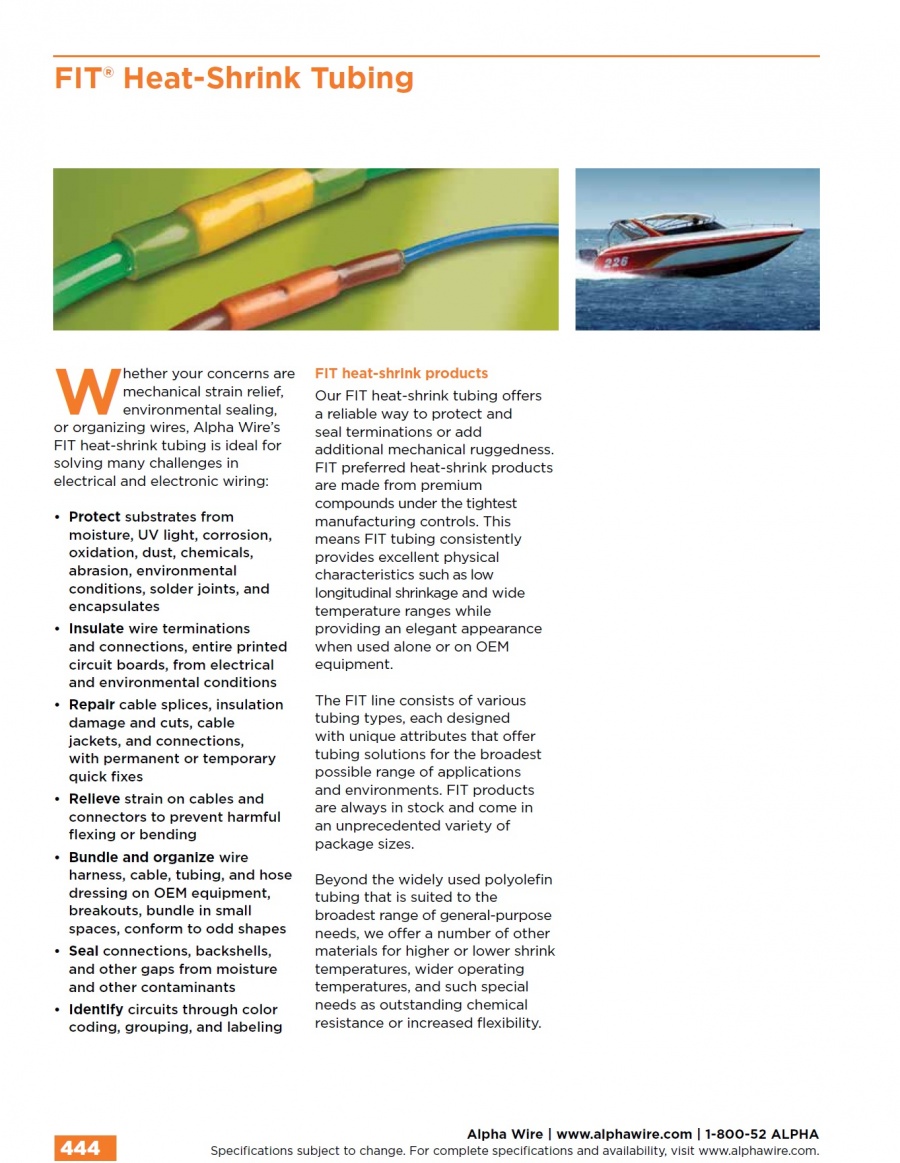

    The perfect FIT for any need

    Need to protect a crimped terminal mechanically or environmentally? Color code wires for easy circuit identification? Make fast, reliable repairs to nicked or worn insulation? Whether your concerns are mechanical strain relief, environmental sealing, or organizing wires, Alpha Wire’s FIT® heat-shrink tubing is ideal for solving many challenges in electrical and electronic wiring.

    完美地满足任何需求

    需要保护压接终端免受机械磨损和环境影响吗? 需要使用不同颜色标记线路吗? 要快速、可靠地修复绝缘缺口或磨损吗?无论您关注的是机械应力释放、环境密封或电线管理,Alpha Wire 的 FIT® 热缩管都非常适合用于解决电气和电子布线中出现的许多问题。




    Part # Shrink Ratio  Material Min Supplied ID



    Max Recovered ID



    Nom Recovered Wall  Temperature
    FIT-600-1/2 2:1 Chlorinated PO 0.5 0.286 0.048 -75 to 120 AMS DTL-23053/1 CL 1 and 2, CA Prop 65, RoHS
    FIT-600-1/4 2:1 Chlorinated PO 0.25 0.143 0.035 -75 to 120
    FIT-600-1-1/2 2:1 Chlorinated PO 1.5 0.857 0.095 -75 to 120
    FIT-600-1-1/4 2:1 Chlorinated PO 1.25 0.714 0.087 -75 to 120
    FIT-600-1-3/4 2:1 Chlorinated PO 1.75 1 0.107 -75 to 120
    FIT-600-1IN 2:1 Chlorinated PO 1 0.570 0.07 -75 to 120
    FIT-600-2IN 2:1 Chlorinated PO 2 1.140 0.11 -75 to 120
    FIT-600-3/4 2:1 Chlorinated PO 0.75 0.428 0.057 -75 to 120
    FIT-600-3/8 2:1 Chlorinated PO 0.375 0.211 0.04 -75 to 120
    FIT-600-5/8 2:1 Chlorinated PO 0.625 0.357 0.052 -75 to 120
    FIT-600-7/8 2:1 Chlorinated PO 0.875 0.5 0.065 -75 to 120
