    ALPHA- FIT®-650 Heat-Shrink Tubing 2:1 Shrink Ratio, AMS DTL-23053/13 Flexible Fluoroelastomer 熱縮管
    看原圖
    		ALPHA-FIT-650-1



    商品編號: ALPHA-FIT-650-1

    ALPHA- FIT®-650 Heat-Shrink Tubing 2:1 Shrink Ratio, AMS DTL-23053/13 Flexible Fluoroelastomer 熱縮管

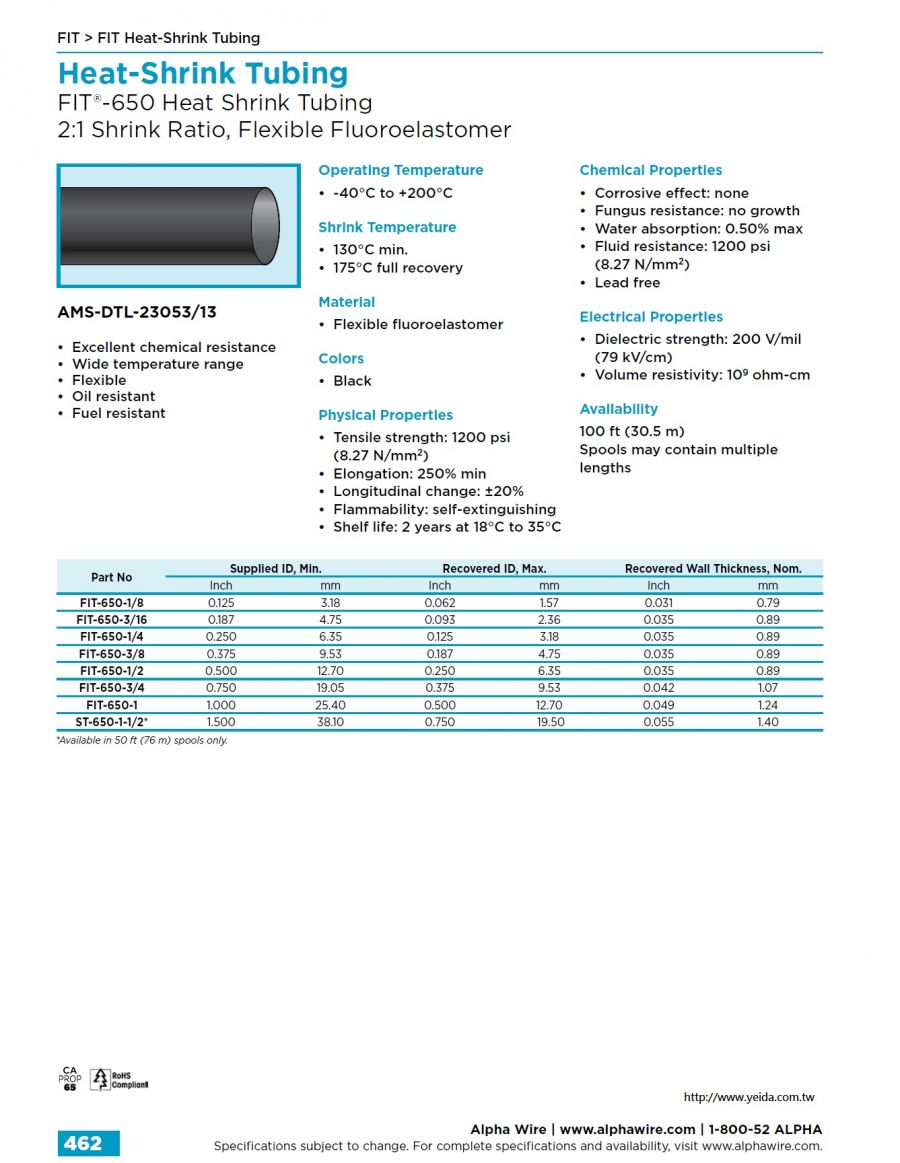

    FIT®-650 Heat Shrink Tubing
    2:1 Shrink Ratio, Flexible Fluoroelastomer
    AMS-DTL-23053/13
    • Excellent chemical resistance
    • Wide temperature range
    • Flexible
    • Oil resistant
    • Fuel resistant
    Operating Temperature
    • -40°C to +200°C
    Shrink Temperature
    • 130°C min.
    • 175°C full recovery
    Material
    • Flexible fluoroelastomer
    Colors
    • Black
    Physical Properties
    • Tensile strength: 1200 psi (8.27 N/mm2)
    • Elongation: 250% min
    • Longitudinal change: ±20%
    • Flammability: self-extinguishing
    • Shelf life: 2 years at 18°C to 35°C
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Water absorption: 0.50% max
    • Fluid resistance: 1200 psi (8.27 N/mm2)
    • Lead free
    Electrical Properties
    • Dielectric strength: 200 V/mil (79 kV/cm)
    • Volume resistivity: 109 ohm-cm
    Availability
    100 ft (30.5 m)



    The perfect FIT for any need

    Need to protect a crimped terminal mechanically or environmentally? Color code wires for easy circuit identification? Make fast, reliable repairs to nicked or worn insulation? Whether your concerns are mechanical strain relief, environmental sealing, or organizing wires, Alpha Wire’s FIT® heat-shrink tubing is ideal for solving many challenges in electrical and electronic wiring.

    完美地满足任何需求

    需要保护压接终端免受机械磨损和环境影响吗？ 需要使用不同颜色标记线路吗？ 要快速、可靠地修复绝缘缺口或磨损吗？无论您关注的是机械应力释放、环境密封或电线管理，Alpha Wire 的 FIT® 热缩管都非常适合用于解决电气和电子布线中出现的许多问题。




    Part # Shrink Ratio　 Material Min Supplied ID

    　

    		 Max Recovered ID

    　

    		 Nom Recovered Wall　 Temperature
    FIT-650-1 2:1 IRR Fluoroelastomer 1 0.5 0.049 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    FIT-650-1/2 2:1 IRR Fluoroelastomer 0.5 0.25 0.035 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    FIT-650-1/4 2:1 IRR Fluoroelastomer 0.25 0.125 0.035 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    FIT-650-1/8 2:1 IRR Fluoroelastomer 0.125 0.062 0.031 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    FIT-650-3/16 2:1 IRR Fluoroelastomer 0.187 0.093 0.035 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    FIT-650-3/4 2:1 IRR Fluoroelastomer 0.75 0.375 0.042 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    FIT-650-3/8 2:1 IRR Fluoroelastomer 0.375 0.187 0.035 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
    ST-650-1-1/2 2:1 IRR Fluoroelastomer 1.5 0.75 0.055 -40 to 200 AMS DTL-23053/13, CA Prop 65, RoHS
