    TIMES-FlexTechTM Commercial Cable Assemblies( 低損耗同軸電纜 接頭 工具及跳線組裝)
    看原圖
    		代碼 TIMES-Assemblies

      商品編號: TIMES-Assemblies

    TIMES-FlexTechTM Commercial Cable Assemblies( 低損耗同軸電纜 接頭 工具及跳線組裝)



    Performance:
    The use of higher frequencies for telecommunications
    applications has placed increasingly rigerous demands
    on cable assembly performance. Our 50 year plus background
    in military microwave assemblies has provided
    us the expertise to address these performance requirements,
    while our commercial expertise allows us to provide
    economical solutions.
    Testing:
    • VSWR or Return Loss
    • Insertion Loss
    • Time Delay
    • Absolute or Relative Phase Matching
    • Phase Trimming
    Value Added
    • Variety of Strain Relief Boots
    • Multitude of Labeling Possibilities
    • Bar Coding
    • Customized Packaging
    Connector Specifications: FlexTechTM cable
    assemblies can be furnished with virtually any connector
    interface.
    Cable Specifications: FlexTechTM jumper
    assemblies are furnished standard with LMR-DB
    cable unless otherwise requested. Cable performance
    characteristics are listed in the section for each
    individual cable size. The following table summarizes
    the characteristics of general interest.
    　

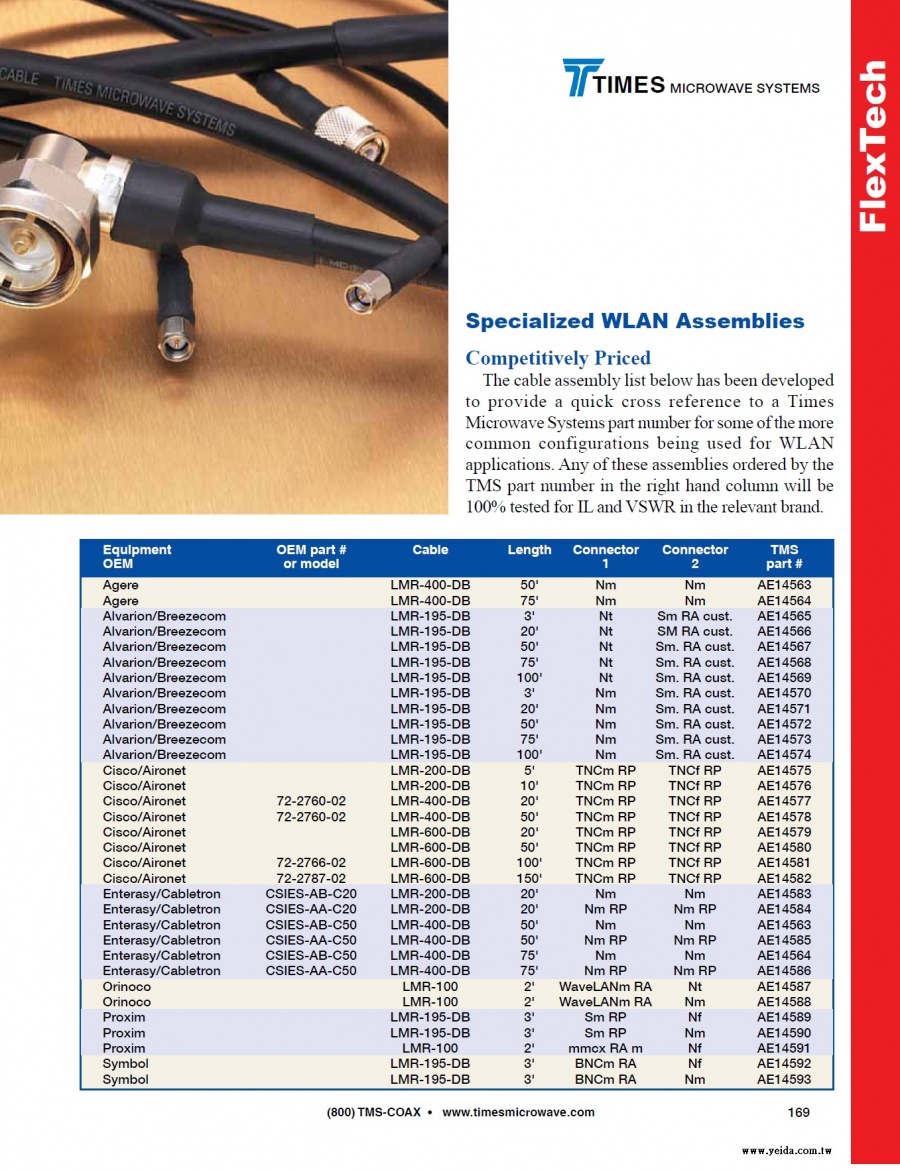

    Specialized WLAN Assemblies
    　

    Competitively Priced
    The cable assembly list below has been developed
    to provide a quick cross reference to a Times
    Microwave Systems part number for some of the more
    common configurations being used for WLAN
    applications. Any of these assemblies ordered by the
    TMS part number in the right hand column will be
    100% tested for IL and VSWR in the relevant brand.
    　

    Equipment OEM part # Cable Length Connector Connector TMS
    OEM or model 1 2 part Agere LMR-400-DB 50 Nm Nm AE14563
    Agere LMR-400-DB 75 Nm Nm AE14564
    Alvarion/Breezecom LMR-195-DB 3 Nt Sm RA cust. AE14565
    Alvarion/Breezecom LMR-195-DB 20 Nt SM RA cust. AE14566
    Alvarion/Breezecom LMR-195-DB 50 Nt Sm. RA cust. AE14567
    Alvarion/Breezecom LMR-195-DB 75 Nt Sm. RA cust. AE14568
    Alvarion/Breezecom LMR-195-DB 100 Nt Sm. RA cust. AE14569
    Alvarion/Breezecom LMR-195-DB 3 Nm Sm. RA cust. AE14570
    Alvarion/Breezecom LMR-195-DB 20 Nm Sm. RA cust. AE14571
    Alvarion/Breezecom LMR-195-DB 50 Nm Sm. RA cust. AE14572
    Alvarion/Breezecom LMR-195-DB 75 Nm Sm. RA cust. AE14573
    Alvarion/Breezecom LMR-195-DB 100 Nm Sm. RA cust. AE14574
    Cisco/Aironet LMR-200-DB 5 TNCm RP TNCf RP AE14575
    Cisco/Aironet LMR-200-DB 10 TNCm RP TNCf RP AE14576
    Cisco/Aironet 72-2760-02 LMR-400-DB 20 TNCm RP TNCf RP AE14577
    Cisco/Aironet 72-2760-02 LMR-400-DB 50 TNCm RP TNCf RP AE14578
    Cisco/Aironet LMR-600-DB 20 TNCm RP TNCf RP AE14579
    Cisco/Aironet LMR-600-DB 50 TNCm RP TNCf RP AE14580
    Cisco/Aironet 72-2766-02 LMR-600-DB 100 TNCm RP TNCf RP AE14581
    Cisco/Aironet 72-2787-02 LMR-600-DB 150 TNCm RP TNCf RP AE14582
    Enterasy/Cabletron CSIES-AB-C20 LMR-200-DB 20 Nm Nm AE14583
    Enterasy/Cabletron CSIES-AA-C20 LMR-200-DB 20 Nm RP Nm RP AE14584
    Enterasy/Cabletron CSIES-AB-C50 LMR-400-DB 50 Nm Nm AE14563
    Enterasy/Cabletron CSIES-AA-C50 LMR-400-DB 50 Nm RP Nm RP AE14585
    Enterasy/Cabletron CSIES-AB-C50 LMR-400-DB 75 Nm Nm AE14564
    Enterasy/Cabletron CSIES-AA-C50 LMR-400-DB 75 Nm RP Nm RP AE14586
    Orinoco LMR-100 2 WaveLANm RA Nt AE14587
    Orinoco LMR-100 2 WaveLANm RA Nm AE14588
    Proxim LMR-195-DB 3 Sm RP Nf AE14589
    Proxim LMR-195-DB 3 Sm RP Nm AE14590
    Proxim LMR-100 2 mmcx RA m Nf AE14591
    Symbol LMR-195-DB 3 BNCm RA Nf AE14592
    Symbol LMR-195-DB 3 BNCm RA Nm AE14593
