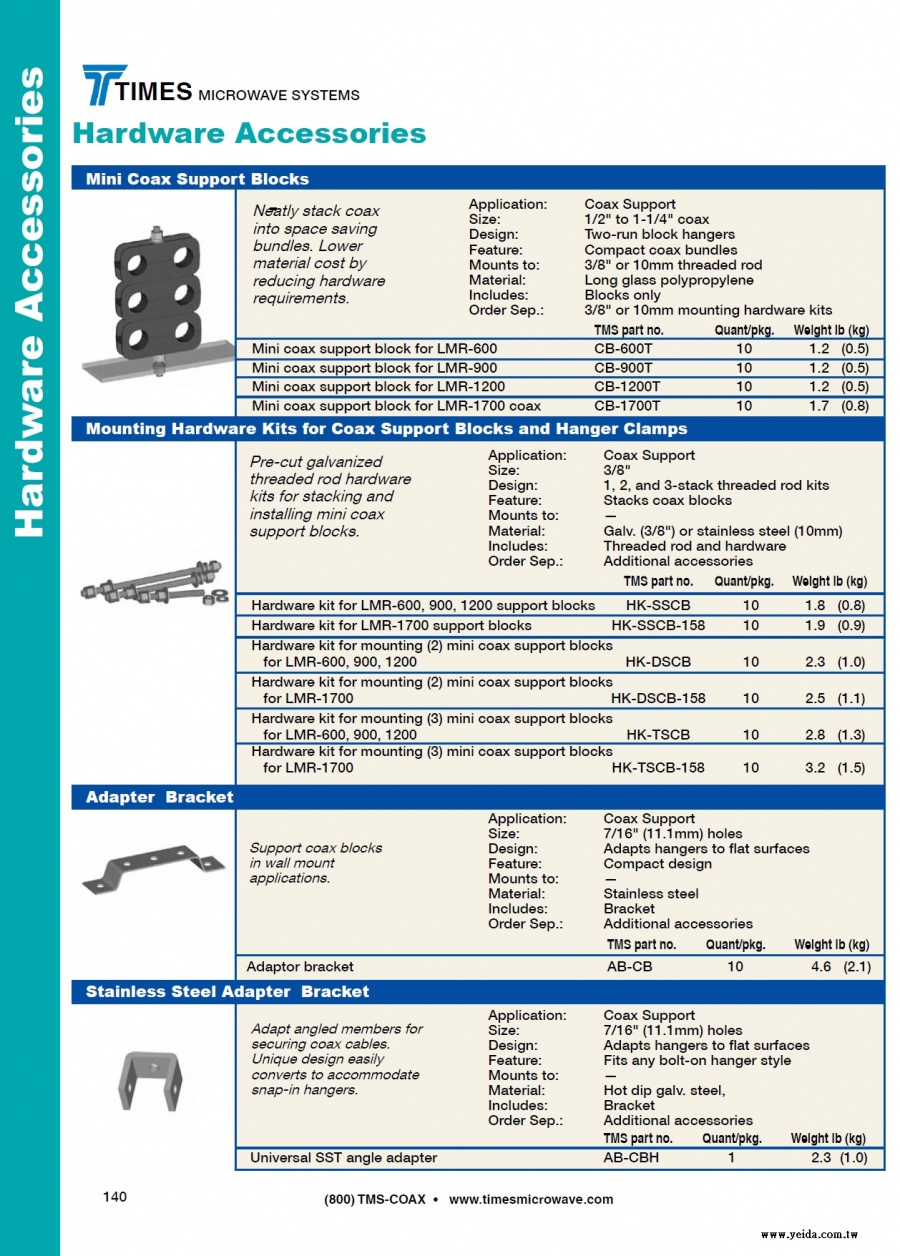

Neatly stack coax
into space saving
bundles. Lower
material cost by
reducing hardware
requirements.

Mini Coax Support Blocks
Application: Coax Support
Size: 1/2" to 1-1/4" coax
Design: Two-run block hangers
Feature: Compact coax bundles
Mounts to: 3/8" or 10mm threaded rod
Material: Long glass polypropylene
Includes: Blocks only
Order Sep.: 3/8" or 10mm mounting hardware kits

Mini coax support block for LMR-600          CB-600T
Mini coax support block for LMR-900          CB-900T
Mini coax support block for LMR-1200         CB-1200T
Mini coax support block for LMR-1700 coax  CB-1700T

Support coax blocks
in wall mount
applications
Application: Coax Support
Size: 7/16" (11.1mm) holes
Design: Adapts hangers to flat surfaces
Feature: Compact design Material: Stainless steel
Includes: Bracket
Order Sep.: Additional accessories
TMS part no. Quant/pkg. Weight lb (kg)
Adaptor bracket AB-CB
　

Stainless Steel Adapter Bracket
Adapt angled members for
securing coax cables.
Unique design easily
converts to accommodate
snap-in hangers.

Application: Coax Support
Size: 7/16" (11.1mm) holes
Design: Adapts hangers to flat surfaces
Feature: Fits any bolt-on hanger style
Material: Hot dip galv. steel,
Includes: Bracket
Order Sep.: Additional accessories


Universal SST angle adapter AB-CBH

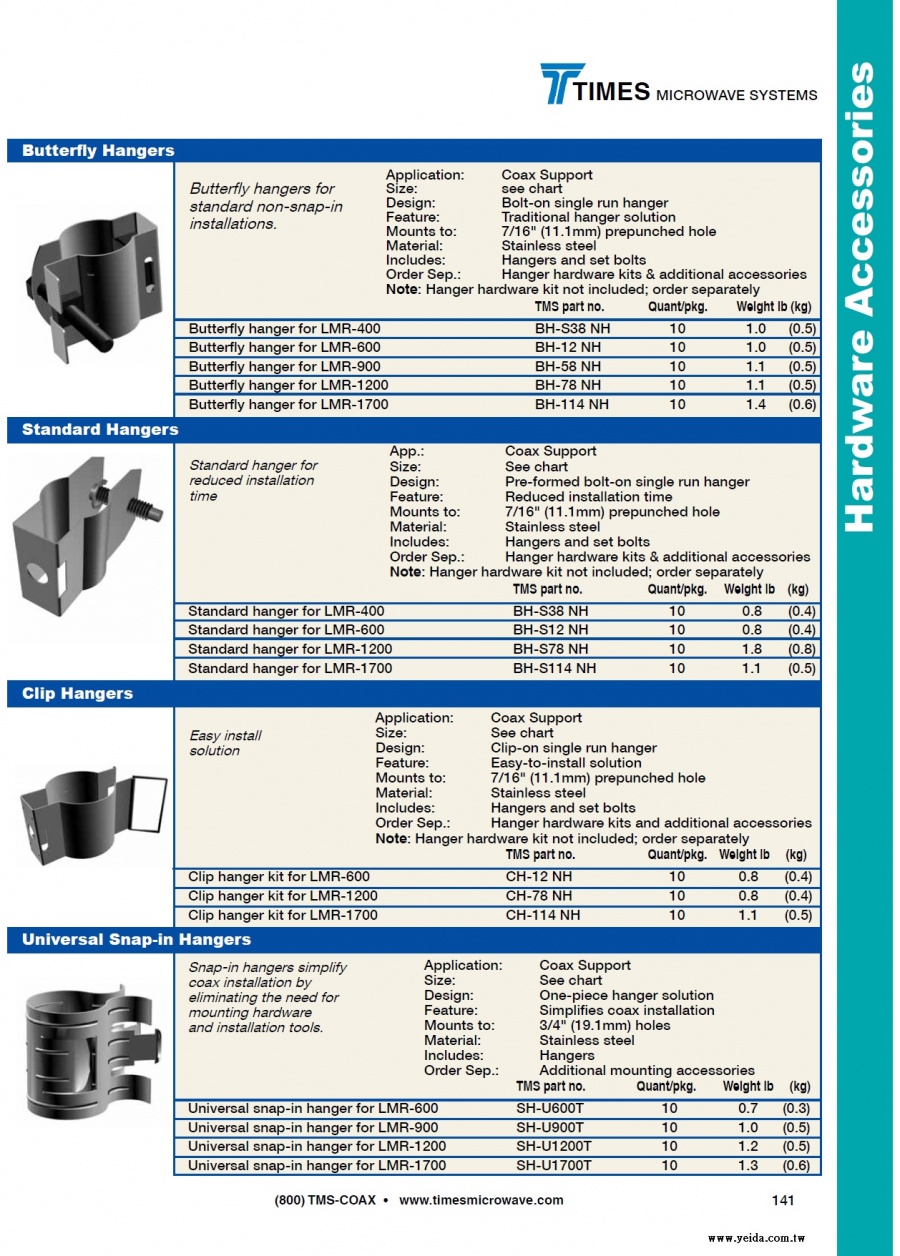

Butterfly hangers for
standard non-snap-in
installations.
Application: Coax Support
Size: see chart
Design: Bolt-on single run hanger
Feature: Traditional hanger solution
Mounts to: 7/16" (11.1mm) prepunched hole
Material: Stainless steel
Includes: Hangers and set bolts
Order Sep.: Hanger hardware kits & additional accessories
Note: Hanger hardware kit not                                                                                                                                                                             included; order separately                                                                                                                                                                                     Butterfly hanger for LMR-400 BH-S38 NH
Butterfly hanger for LMR-600 BH-12 NH
Butterfly hanger for LMR-900 BH-58 NH
Butterfly hanger for LMR-1200 BH-78 NH
Butterfly hanger for LMR-1700 BH-114 NH
                                                                                                                                                                                                                             Standard hanger for
reduced installation
time
App.: Coax Support
Size: See chart
Design: Pre-formed bolt-on single run hanger
Feature: Reduced installation time
Mounts to: 7/16" (11.1mm) prepunched hole
Material: Stainless steel
Includes: Hangers and set bolts
Order Sep.: Hanger hardware kits & additional accessories
Note: Hanger hardware kit not included; order separately

Standard hanger for LMR-400 BH-S38 NH
Standard hanger for LMR-600 BH-S12 NH
Standard hanger for LMR-1200 BH-S78 NH
Standard hanger for LMR-1700 BH-S114 NH

Clip Hangers Easy install solution
Application: Coax Support
Size: See chart
Design: Clip-on single run hanger
Feature: Easy-to-install solution
Mounts to: 7/16" (11.1mm) prepunched hole
Material: Stainless steel
Includes: Hangers and set bolts
Order Sep.: Hanger hardware kits and additional accessories
Note: Hanger hardware kit not included; order separately
Clip hanger kit for LMR-600 CH-12 NH
Clip hanger kit for LMR-1200 CH-78 NH
Clip hanger kit for LMR-1700 CH-114 NH
　

Universal Snap-in Hangers
Snap-in hangers simplify
coax installation by
eliminating the need for
mounting hardware
and installation tools.
Universal snap-in hanger for LMR-600 SH-U600T
Universal snap-in hanger for LMR-900 SH-U900T
Universal snap-in hanger for LMR-1200 SH-U1200T
Universal snap-in hanger for LMR-1700 SH-U1700T
Application: Coax Support
Size: See chart
Design: One-piece hanger solution
Feature: Simplifies coax installation
Mounts to: 3/4" (19.1mm) holes
Material: Stainless steel
Includes: Hangers
Order Sep.: Additional mounting accessories
