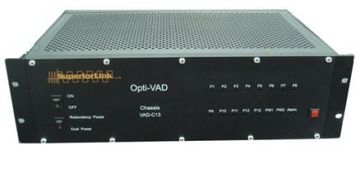

VAD C13 Chassis for Opti-VAD Card Version, dual power slots

VAD-C13

VAD C13 Chassis for Opti-VAD Card Version, dual power slots

􀂾> 19"機櫃式, 高度3RU
􀂾 >可插入13片佔1槽之Opti-VAD卡片式光電轉換器
􀂾

>電源模組: 2組
􀂾 >內建備援電源(Redundancy power)自動切換功能
􀂾 具備聲、光警示功能(警報音+警示燈)於電源自動切換時啟動警示
􀂾 >面板LED顯示每一槽位使用狀態
􀂾 >可拆卸L型固定板,可選擇機箱正面或背面進出線
􀂾

>外型尺寸 (mm)：483W x 280D x 134H
􀂾 >重量：2.8 kg

★★★★商品說明★★★★

VAD C13 Chassis for Opti-VAD Card Version, dual power slots

To save spaces in product group area

13-slot + 16-LED front panel display + Power Selection Switch

Features

		Compact 3RU high, 19" rack mounting chassis
		Holds up to 13 pcs. of 1-slot Opti-VAD cards
		Holds 2 pcs. of power supply modular cards
		Built-in Dual Power and Redundancy Power switch function
		Alarm flash LED + Warning Tone to alert when power switches automatically
		Front panel with LED display indicating individual slot’s working condition
		Removable “L” type fixing board suitable for on-site environment

Physical

		Dimensions (mm) : 483W x 280D x 134H
		Weight : 2.8 kg

Ordering information

VAD-C13 13-slot chassis for Opti-VAD card version, 2 power slots, dual/redundancy power switch

★★★★商品規格描述★★★★

VAD C15       15槽VAD卡式專用機箱, 19”/3RU, 需插卡式電源供應器
VAD C13         13槽VAD卡式專用機箱, 19”/3RU, 需插卡式電源供應器
VAD C6          6槽VAD卡式專用機箱, 19”/3RU, 需插卡式電源供應器
VAD C2        2槽VAD卡式專用獨立式機殼, 使用外接電源
VAD PS15       90~264VAC to 12VDC, 3A電源供應器
VAD PS15A    90~264VAC to 12VDC, 7.2A電源供應器
VAD PS15DC -48VDC to 12 VDC, 6A電源供應器
