Belden-7805 (RF-100) 類LMR-100, RG174, Low Loss 50 Ohm Wireless 低損耗無線高頻傳輸同軸電纜
| DESCRIPTION: |

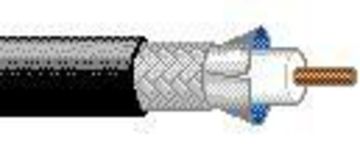

| RG-174 Type, 25 AWG solid .018" bare copper, solid Polyethylene insulation, Duofoil® + 90% tinned copper braid shield, PVC jacket. |
|
|
| PHYSICAL CHARACTERISTICS : |
|
|
| |
|
| CONDUCTOR : |
| Number of Coax: |
1 |
| Total Number of Conductors: |
1 |
| RG Type: |
174/U |
| AWG: |
25 |
| Stranding: |
Solid |
| Conductor Diameter: |
.018 in. |
| Conductor Material: |
BC - Bare Copper |
|
| |
|
| INSULATION : |
| Insulation Material: |
PE - Polyethylene |
| Insulation Diameter: |
.061 in. |
|
| |
|
| OUTER SHIELD : |
| Outer Shield Type: |
Tape/Braid |
| Outer Shield Material: |
|
| Layer Number |
Trade Name |
Type |
Material |
% Coverage (%) |
| 1 |
Duofoil® |
Tape |
Aluminum Foil-Polyester Tape-Aluminum Foil |
100 |
| 2 |
|
Braid |
TC - Tinned Copper |
90 |
|
|
|
| |
|
| OUTER JACKET : |
| Outer Jacket Material: |
PVC - Polyvinyl Chloride |
|
| |
|
| OVERALL NOMINAL DIAMETER : |
| Overall Nominal Diameter: |
.110 in. |
|
|
| MECHANICAL CHARACTERISTICS : |
|
|
| Operating Temperature Range: |
-40°C To +80°C |
| Non-UL Temperature Rating: |
80°C |
| Bulk Cable Weight: |
9 lbs/1000 ft. |
| Max. Recommended Pulling Tension: |
16 lbs. |
| Min. Bend Radius (Install): |
0.25 in. |
|
| APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE : |
|
|
| |
|
| SUITABILITY : |
| Suitability - Outdoor: |
Y |
| Suitability - Aerial: |
Y |
|
|
| ELECTRICAL CHARACTERISTICS : |
|
|
| Nom. Characteristic Impedance: |
50 Ω |
| Nom. Inductance: |
.077 µH/ft |
| Nom. Capacitance Conductor to Shield: |
31.2 pF/ft |
| Nominal Velocity of Propagation: |
66 % |
| Nominal Delay: |
1.54 ns/ft |
| Nom. Conductor DC Resistance @ 20 Deg. C: |
32.0 Ω/1000 ft |
| Nominal Outer Shield DC Resistance: |
9.1 Ω/1000 ft |
| Maximum VSWR: |
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Maximum VSWR |
| |
|
5 |
6000 |
1.25 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Nom. Attenuation (dB/100 ft.) |
| |
30 |
|
|
3.8 |
| |
50 |
|
|
4.9 |
| |
150 |
|
|
8.6 |
| |
220 |
|
|
10.4 |
| |
450 |
|
|
15.2 |
| |
900 |
|
|
22.0 |
| |
1500 |
|
|
28.7 |
| |
1800 |
|
|
31.7 |
| |
2000 |
|
|
33.4 |
| |
2500 |
|
|
37.8 |
| |
3000 |
|
|
42.0 |
| |
4500 |
|
|
52.3 |
| |
5800 |
|
|
60.9 |
| |
6000 |
|
|
62.0 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Nom. Power Rating (W) |
| |
|
30 |
|
216 |
| |
|
50 |
|
154 |
| |
|
150 |
|
74 |
| |
|
220 |
|
57 |
| |
|
450 |
|
34 |
| |
|
900 |
|
21 |
| |
|
1500 |
|
14 |
| |
|
1800 |
|
13 |
| |
|
2000 |
|
12 |
| |
|
2500 |
|
10 |
| |
|
3000 |
|
9 |
| |
|
3500 |
|
8 |
| |
|
4500 |
|
7 |
| |
|
5800 |
|
5 |
| |
|
6000 |
|
5 |
|
|
|
| Max. Operating Voltage - Non-UL: |
300 V RMS |
| Other Electrical Characteristic 1: |
Mates with standard RG-174 connectors. |
|
|
| Item |
Description |
Put-Up (ft.) |
Ship Weight (lbs.) |
Jacket Color |
Notes |
| 7805 010100 |
RF100 WIRELESS 50 OHM COAX PVC |
100 |
1.8 |
BLACK |
E |
| 7805 0101000 |
RF100 WIRELESS 50 OHM COAX PVC |
1000 |
10 |
BLACK |
|
| 7805 010500 |
RF100 WIRELESS 50 OHM COAX PVC |
500 |
5.5 |
BLACK |
|
|
| |
|
|
|
