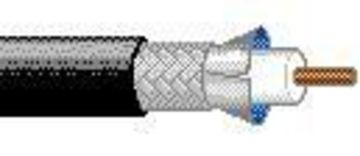

Belden-7808A (RF-240) 類LMR-240, RG-8X, Low Loss 50 Ohm Wireless 低損耗無線高頻同軸電纜
| DESCRIPTION: |
| RG-8X Type, 15 AWG solid .057" bare copper, gas-injected foamed high density Polyethylene insulation, Duobond® II + 95% tinned copper braid shield, Polyethylene jacket. |
|
|
| PHYSICAL CHARACTERISTICS : |
|
|
| |
|
| CONDUCTOR : |
| Number of Coax: |
1 |
| Total Number of Conductors: |
1 |
| RG Type: |
8/X |
| AWG: |
15 |
| Stranding: |
Solid |
| Conductor Diameter: |
.057 in. |
| Conductor Material: |
BC - Bare Copper |
|
| |
|
| INSULATION : |
| Insulation Material: |
Gas-injected FHDPE - Foam High Density Polyethylene |
| Insulation Diameter: |
.150 in. |
|
| |
|
| OUTER SHIELD : |
| Outer Shield Type: |
Tape/Braid |
| Outer Shield Material: |
|
| Layer Number |
Trade Name |
Type |
Material |
% Coverage (%) |
| 1 |
Duobond® II |
Tape |
Bonded Aluminum Foil-Poly Tape-Aluminum Foil |
100 |
| 2 |
|
Braid |
Tinned Copper |
95 |
|
|
|
| |
|
| OUTER JACKET : |
| Outer Jacket Material: |
PE - Polyethylene |
|
| |
|
| OVERALL NOMINAL DIAMETER : |
| Overall Nominal Diameter: |
.240 in. |
|
|
| MECHANICAL CHARACTERISTICS : |
|
|
| Operating Temperature Range: |
-40°C To +80°C |
| Non-UL Temperature Rating: |
80°C |
| Bulk Cable Weight: |
36 lbs/1000 ft. |
| Max. Recommended Pulling Tension: |
74 lbs. |
| Min. Bend Radius (Install): |
0.75 in. |
|
| APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE : |
|
|
| |
|
| SUITABILITY : |
| Suitability - Outdoor: |
Y |
| Suitability - Aerial: |
Y |
| Suitability - Burial: |
Y |
|
|
| ELECTRICAL CHARACTERISTICS : |
|
|
| Nom. Characteristic Impedance: |
50 Ω |
| Nom. Inductance: |
.060 µH/ft |
| Nom. Capacitance Conductor to Shield: |
23.0 pF/ft |
| Nominal Velocity of Propagation: |
86 % |
| Nominal Delay: |
1.18 ns/ft |
| Nom. Conductor DC Resistance @ 20 Deg. C: |
3.2 Ω/1000 ft |
| Nominal Outer Shield DC Resistance: |
3.5 Ω/1000 ft |
| Maximum VSWR: |
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Maximum VSWR |
| |
|
5 |
6000 |
1.25:1 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Nom. Attenuation (dB/100 ft.) |
| |
30 |
|
|
1.3 |
| |
50 |
|
|
1.6 |
| |
150 |
|
|
2.8 |
| |
220 |
|
|
3.4 |
| |
450 |
|
|
4.9 |
| |
900 |
|
|
7.0 |
| |
1500 |
|
|
9.1 |
| |
1800 |
|
|
10.1 |
| |
2000 |
|
|
10.7 |
| |
2500 |
|
|
12.0 |
| |
3000 |
|
|
13.4 |
| |
4500 |
|
|
16.7 |
| |
5800 |
|
|
19.5 |
| |
6000 |
|
|
19.8 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Max. Power Rating (W) |
| |
30 |
|
|
1526 |
| |
50 |
|
|
1186 |
| |
150 |
|
|
673 |
| |
220 |
|
|
556 |
| |
450 |
|
|
382 |
| |
900 |
|
|
286 |
| |
1500 |
|
|
205 |
| |
1800 |
|
|
187 |
| |
2000 |
|
|
177 |
| |
2500 |
|
|
156 |
| |
3000 |
|
|
143 |
| |
3500 |
|
|
100 |
| |
4500 |
|
|
116 |
| |
5800 |
|
|
102 |
| |
6000 |
|
|
100 |
|
|
|
| Max. Operating Voltage - Non-UL: |
300 V RMS |
| Other Electrical Characteristic 1: |
Mates with standard RG-8X connectors |
|
|
| Item |
Description |
Put-Up (ft.) |
Ship Weight (lbs.) |
Jacket Color |
Notes |
| 7808A 0101000 |
RF240 WIRELESS 50 OHM COAX PE |
1000 |
39 |
BLACK |
C |
| 7808A 010500 |
RF240 WIRELESS 50 OHM COAX PE |
500 |
20 |
BLACK |
C |
|
| |
|
|
