    首頁 > > EUTECH- DO Meter 溶氧度計Conductivity Meter 電導度計

    EUTECH-alpha-CON1000 Thermo Scientific Conductivity Controller/Transmitter 線上型電導度控制器
    看原圖
    		EUTECH-CON1000

    商品編號: EUTECH-alpha-CON1000

    alpha-CON1000 Thermo Scientific Conductivity Controller/Transmitter 線上型電導度控制器

    產品特色
    　

    液晶螢幕同時顯示電導度, 及溫度值

    10段測量範圍, 0.000uS...200.0mS

    4-20mA類比輸出, ON/OFF及警報控制

    適合超純水, 純水, 印刷水, 農業養殖, 廢水處理...等應用

    新加坡原裝進口  EUTECH



    Product Features

    The Alpha COND 1000 features up to ten selectable conductivity ranges and corresponding cell constant K values, easily configured through a six-button keypad. Adjustable temperature co-efficient and ultrapure water compensation option allow measurements in broad-range applications, from ultrapure water to high-conductivity samples.

    :: ±1% full scale accuracy across ten different Conductivity ranges

    :: Adjustable temperature coefficient from
    0.0 to 10.0% for higher accuracy

    :: Pure water compensation option corrects non-linearity of pure water temperature correction curves in ultrapure water applications

    :: Option of Auto or Manual Temperature Compensation. Three-wire system compensates for cable-length resistance errors

    :: Meter displays electrode information after each successful calibration. Previous calibration data is retained in the event of unsuccessful calibrations

    :: Line adjustment feature corrects long cable resistance errors – an important feature useful in applications involving high conductivity measurements

    :: Galvanically-isolated, scaleable 0/4 to 20 mA output for high-quality output on peripheral devices


    Applications

    General: Use for virtually any batch or online applications where rapid, accurate control. Great for OEM/system integrator.

    Industrial: Use in applications involving agriculture, chemical processing, boiler and water heaters, wafer-fab, microprocessor manufacturing, pharmaceuticals, pulp and paper industries, and bleach manufacturing.

    Water Purification/Treatment: Use to treat batches of incoming process water, ultrapure water, boiler and feed water control.

    Regulatory: Hook up to recorder for regulatory compliance data collection.

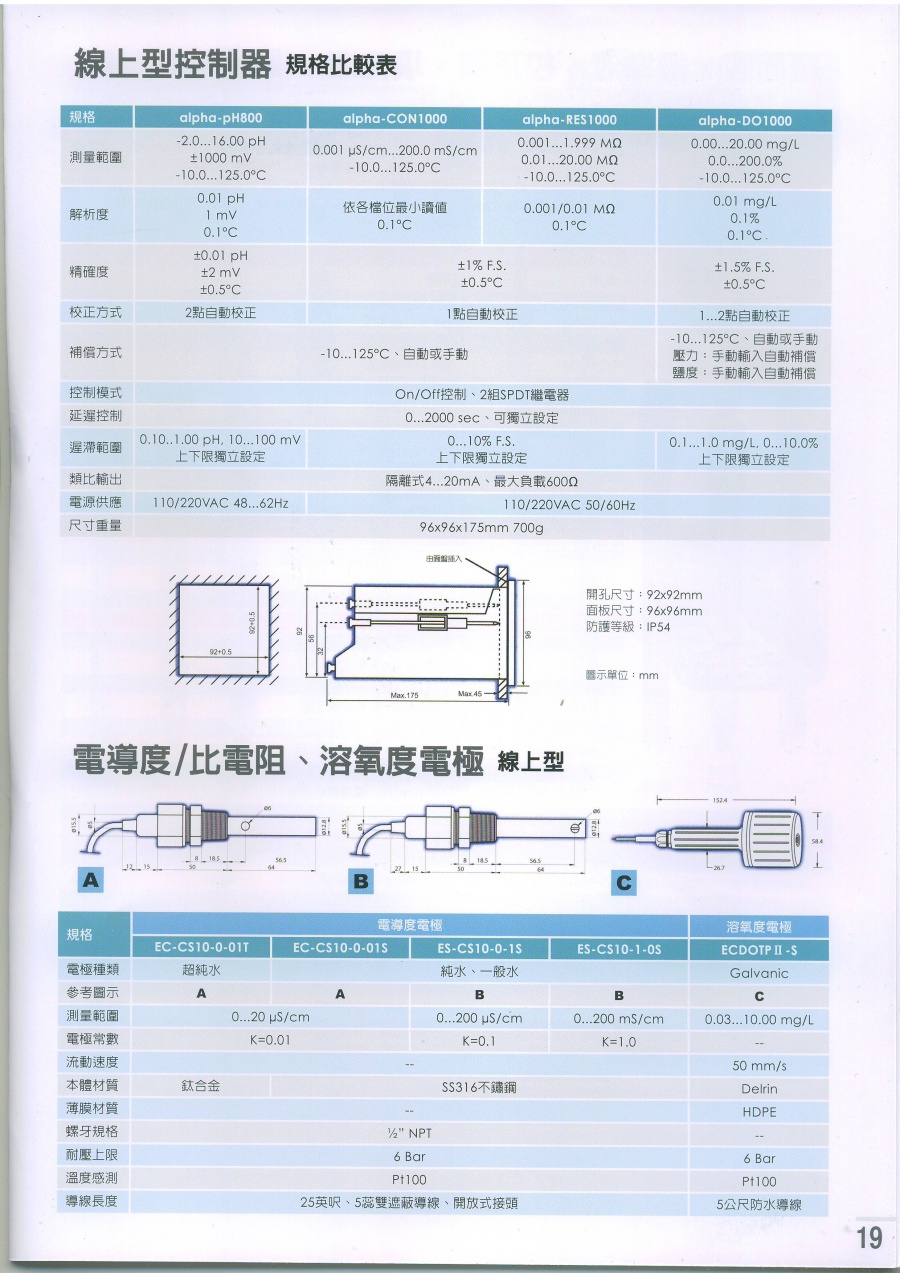

    Specifications

    Product Specification

    		 Description
    Conductivity
    Range ... to 1.999 µS/cm ; ... to 19.99 µS/cm ;
    ... to 199.9 µS/cm ; ... to 1999 µS/cm ;
    ... to 5000 µS/cm ; ... to 19.99 mS/cm ;
    ... to 199.9 mS/cm
    Resolution 0.001 µS/cm ; 0.01 µS/cm ;
    0.1 µS/cm ; 1 µS/cm ;
    5 µS/cm ; 0.01 mS/cm ;
    0.1 mS/cm
    Accuracy ±1 % full scale reading
    Cell Constant 0.01 ; 0.1 ; 1 ; 10
    Temperature
    Range -9.9 to 125 ºC
    Resolution 0.1 ºC
    Accuracy ±0.5 ºC
    Sensor Pt100 / Pt1000 (jumper selectable)
    Compensation Auto/manual (normalized at 25 ºC)
    Coefficient Ultrapure water or linear 0.00 to 10.00 %
    Set Point and Controller Functions
    Set Point 1 (SP1) /
    Set Point 2 (SP2)    		 ... to 1.999 µS/cm or ... to 19.99 µS/cm or
    ... to 199.9 µS/cm or ... to 5000 µS/cm or
    ... to 19.99 mS/cm or ... to 199.9 mS/cm
    Switching Conductivity Hysteresis 0 to 10 % of full scale
    Function (Switchable) P control (pulse length/pulse frequency); limit control
    Adjustable Period With Pulse Length Controller
    　    		 0.5 to 20 sec
    Adjustable Period With Pulse Frequency Controller 60 to 120 pulse/min
    Pickup/Dropout Delay 0 to 2000 sec
    Contact Outputs 3 SPDT relays
    Switching Voltage/
    Current/Power    		 Max. 250 VAC / max. 3 A / max. 600 VA
    Alarm Functions
    Function (Switchable) Steady or fleet (pulse)
    Wash Cycle
    　    		 0.1 to 199.9 hr
    Wash Duration 1 to 1999 sec
    Pickup Delay 0 to 2000 sec
    Switching Voltage/
    Current/Power    		 Max. 250 VAC / max. 3 A / max. 600 VA
    Electrical Data and Connections
    Transmitter function 0/4 to 20 mA scalable outputs for Conductivity,
    galvanically isolated
    Hold function switch To freeze output current and deactivate control relays
    Load Max. 600 Ohm
    Conductivity input 2-pin terminal
    Connection terminal 5-pole, 17-pole terminal, detachable blocks
    Power Supply
    Input 110 VAC
    (jumper selectable) ;
    48 to 62 Hz ; max. 7 VA
    (For TSCONCTP1001)    		 220 VAC
    (jumper selectable) ;
    48 to 62 Hz ; max. 7 VA
    (For TSCONCTP1002)
    Main Fuse Slow-blow 250 V / 100 mA
    Pollution Degree 2
    Transient Overvoltage Category II
    EMC Specifications
    Emitted Interference According to EN 50081-1
    Immunity to Interference According to EN 50082-1
    Environmental Conditions
    Operating temperature range -10 to 50 ºC
    Max. relative humidity 80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC
    Mechanical Specifications
    Dimensions (WxHxD) 96 x 96 x 175 mm
    Weight 700 g (unit) / 800 g (packed)
    Ingress protection IP54 (front panel)

    Order Information

    Order No.

    		Item
    TSCONCTP1001 Alpha COND 1000 panel-mount Conductivity controller/transmitter with 110 VAC setting. Incl. terminal blocks, gasket, threaded rods, catch, etc
    TSCONCTP1002 Alpha COND 1000 panel-mount Conductivity controller/transmitter with 220 VAC setting. Incl. terminal blocks, gasket, threaded rods, catch, etc
