LENKENG-LKV368PRO SDI转HDMI专业高清转换器（支持3G-sdi/hd-sdi）(HD-SDI to HDMI, SD-SDI and 3G-SDI to HDMI)

LENKENG-LKV368PRO

LKV368PRO SDI转HDMI专业版高清转换器，采用朗强最新一代Coloe Eye技术从技术上优化色彩，将清晰生动的画面栩栩如生地展现在您的面前。
　

而转换IC采用朗强Scaler技术可以将任何可以识别的的SDI转换为标准的HDMI输出,让转换器兼容更多的设备。

更让人无法抗拒的采用工业级设计标准，铝合金外壳，工业级电路设计，一体成型的外观。让LKV368PRO可以达到其他转换器不能逾越的鸿沟。

★★★★商品說明★★★★

功能简介

★★★★使用操作說明★★★★

连接示意图

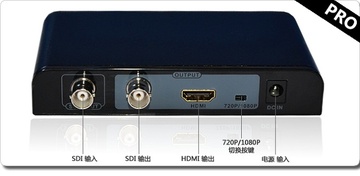

接口说明

★★★★商品規格描述★★★★

SDI to HDMI Converter with scaler function converts SD-SDI ,3G-SDI or HD-SDI to HDMI for driving HDMI monitors.SDI to HDMI converter that supports a wide range of display resolutions through 3G, HD, and SD-SDI.For professionals that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

Features

Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI

Plug and play.

Specifications

1. SDI input

1) Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI

2) Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s

3) Impedance: 75Ω

4) Supports signal transmission distances of up to 300M for SDI signals, 200M for HD signals and 100M for 3G signals

5) Resolution: 525i,625i;HD720P@24Hz,720P@25Hz, 720P@30Hz, 720P@50Hz, 720P@60Hz, 1080i@50Hz, 1080i@60Hz, 1080P@24Hz, 1080P@25Hz, 1080P@30Hz, 1080P@50Hz, 1080P@60Hz,

Recommended resolutions: 720P@50Hz;720P@60Hz;

2.HDMI output

720P@50Hz, 720P@60Hz, 1080i@50Hz, 1080i@60Hz, 1080P@24Hz, 1080P@25Hz, 1080P@30Hz, 1080P@50Hz, 1080P@60Hz,

3. Power: DC 5V /1A.

4.working currenct : 400mA max

5. Dimension: 105*59*23mm

6. Working temperature: 0 C -50 C

7. Weight: 72g
