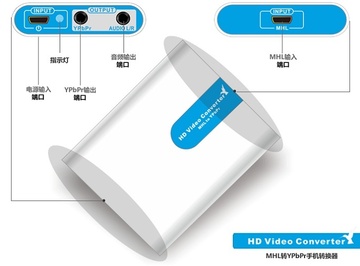

LKV554 MHL to Component,MHL to YPBPR Adapter
MHL(Mobile High-Definition Link) YPbPr adapter allows you to connect your MHL capable phone and portable devices to YPbPr displays and other home entertainment products.,Watch videos, pictures, & play games on your TV or Home Theater System .
It features a single cable with a 5-pin interface able to support up to 1080p HD video and digital audio while simultaneously providing power to the mobile device, ,Compatible with all mobile devices using MHL Technology.
- Watch movies and charge your device simultaneously by connecting additional micro-USB cable to power source
- Support 1080p HD video and digital audio.
- Connectors: 5-pin micro-USB female (connect to device with 0.8 meter MHL m/m cable)
- YPbPr female , micro-USB female (connect to power source).
- Low consumption,Minimum: 2w, Maximum : 4w.
- Mirror mode support. Content on LCD screen will show up on YPbPr display.
- Supports YPbPr output format:480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz
- Specifications: Input ports: 1xMHL, DC in(Micro USB),Output ports: 1x3.5mm (3.5 to YPbPr 1.15 meters) ,1x Audio
- Dimensions: 64.6mm X 52.5mm X 14.1mm
- Weight:30g
|
|
|
|
