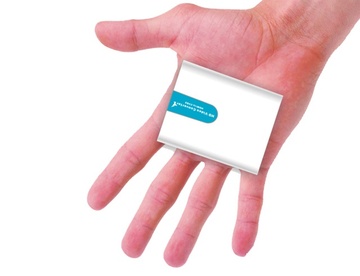

    LENKENG-LKV381miniHDMI轉AV轉换器(HDMI to CVBS(Composite)+Audio Mini)
    看原圖
    		LENKENG-LKV381MINI

    LKV381MINI HDMI转AV转换器，全新SCALER技术不但完美支持HDMI1080P输入（全面兼容APPLE TV3等设备），更首先将采用数字3D梳状滤波，3D加速，数码降噪......等转换技术引入MINI系类，让转换后的画面栩栩如生，而动态的画面杜绝造成拖尾和画面抖动等问题。











    ★★★★使用操作說明★★★★

    连接示意图
    接口说明



    ★★★★商品規格描述★★★★

    The mini converter HDMI to AV/3RCA/CVBS Composite converter will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, Low power consumption, No power adaptor,to help users convert the high quality of the HDMI video signal into normal CVBS signal,so that can play on TV ,VCR,DVD recorders etc...and supports NTSC PAL two TV format. No need to install drivers , plug and play,portable,flexible.

    Features

    1. Simply Plug and Play

    2. Supports NTSC and PAL two standard TV formats output
    3. Now power adapter,(optional)
    4.Low consumption,Minimum: 2w, Maximum : 4w.
    5. Supports OSD (On-Screen Display)
    6. Supports HDMI input resolution:480p@60Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz
    7. Specifications: Input ports: 1xHDMI, Output ports: 1xRCA (Yellow,White,Red)
    8. Dimensions: 64.5mm X 52.6mm X 14.1mm
    9. Weight: 30g
