-Input: 2-way Composite Video, 2-way Component Video, 1-way SCART, 1-way S-Video, 1-way VGA, and 2-way HDMI, 2-way Stereo Audio;
-Output: 1-way HDMI, 1-way Stereo Audio;
-Scaling Function: up-scales any of the SD sources to HDMI 720P or 1080P, and also up-scales any of the two HDMI inputs to 720P or 1080P(in case it is with lower resolution);
-Switch Function: Select input source and up-scale it to the single HDMI output and select output HDMI resolution by IR remote control;
-It is with RS232 Control, allowing operation through computer;
-HDMI Video Format: deep color;
-Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby True HD/DTS-HD master Audio;
-SD Input supports 4:3,16:9 and 16:10 display modes; HD input: supports16:9 and 16:10 display modes.
-Power supply: DC 12V @ 3A;
-Audio: YPbPr1, Video1 and S-Video share the same Audio; YPbPr2 and Video2 share the same Audio, ‘PC AUDIO’ is used independently by VGA input;
-2 HDMI inputs are compatible with DVI input by a HDMI to DVI adapter.
Inputs: 2-way Composite Video, 2-way Component Video, 1-way SCART, 1-way S-Video, 1-way VGA, and 2-way HDMI, 2-way Stereo Audio;
Output: 1-way HDMI, 1-way Stereo Audio
LKV391 supports full HD 1080P and compliant with HDMI 1.3 V and HDCP.
LKV391 is with real scaler function, up-scales any of the standard-definition video sources to HDMI 720P or 1080P, and also up-scales any of the two HDMI inputs to 720P or 1080P(in case it is with lower resolution)
Note: LENKENG is capable of providing OEM & ODM service as per customer design.

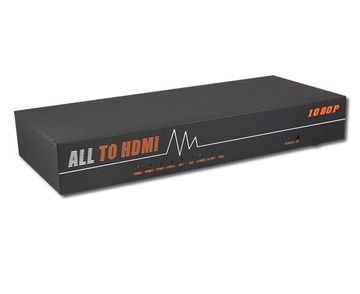

Front:
1) Inputs LED
2) IR indication
3) Power and working status LED: Red: Power in; Green: working
Back:
1) Power Supply: DC 12V/3A
2) RS232 Control Interface
3) Input
4) Output
Accessories & Package
