商品編號: ZOGLAB-EVS

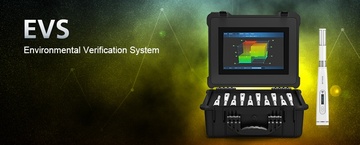

EVS Environmental Verification System 環境驗證系統
EVS
Environmental Verification System
EVS constant temperature and humidity verification system is an integrated solution for professional temperature and humidity verification area, it can connect up to 10 sensors with high accuracy of ±0.5%RH and ±0.1℃. Its universal Wi-Fi technology, enables the EVS released from cables possible. Built-in environmental friendly lithium battery lowers the operation cost and enhances the efficiency. Sensors can continuously working over 100 hrs in high speed testing mode, and for months in standby mode. Due to its unique record function of the sensors, even the signal breaks off, the history data will be uploaded timely once reconnection. Various optional standards of the industries can be operated automatically and generated reports via customized software.
Measuring Data
Specification |
T Measuring range |
-40℃~100℃ |
T Accuracy |
±0.1℃ |
T Resolution |
0.01℃ / 0.02℉ |
RH Measuring range |
0%~100%RH |
RH Accuracy |
±0.5%RH(Testing environment 23℃±2℃),±08%RH |
RH Resolution |
0.01%RH |
General
Specification |
Frequency band |
2.4GHz Wi-Fi abg |
Alarm |
High level and low level , wifi state LED , Highlight LED indicator with dual colors |
Data process |
Support real time data transmission and logging |
Sampling interval |
2s、5s、10s、30s、60s、255s |
Logging interval |
2 seconds~24 hours |
Start with delay time |
1~120 seconds |
Start mode |
Immediate start / Time-lapse start / Timing start |
End mode |
Full / FIFO / timing end / Key to end |
Timing start / end |
Random start / end with format YYMMDD HHMMSS |
Interface |
Mini USB+Wi-Fi |
Battery |
Fargoing-temperature lithium battery |
Battery lifetime |
50 hours(Wireless opens) |
External voltage |
7~24V DC |
Software |
VTK |
Storage temperature |
-50℃~90℃ |
ESD Protection |
±25KV |
IP Class |
IP64 |
Sensing Probe
Model |
PT100 / Humidity capacitance |
General Features
Specification |
Dimensions |
485×392×192mm |
Weight |
4.5kg |
Working station |
Window 8 RT |
EVS 環境驗證系統
EVS恆溫恆濕驗證系統是一套面向專業溫濕度驗證領域的綜合解決方案。該系統配備10支濕度精度高達±0.5%RH以及溫度精度±0.1℃的頂級傳感器;全球通用的Wi-Fi無線技術使溫濕度驗證工作徹底擺脫電纜的束縛;內置鋰聚合物電池的環保設計可節約系統運行成本,提高工作效率;高速測量模式下傳感器續航能力超過100小時,更有長達數月的休眠待機功能;獨到的傳感器數據記錄功能可在無線網絡中斷恢復後,及時上傳歷史數據;定制的溫濕度驗證軟件可選擇多種行業規範自動運行及出具報告。
测量参数指标
技术指标 |
温度测量范围 |
-40℃~100℃ |
温度测量精度 |
±0.1℃ |
温度分辨力 |
0.01℃ / 0.02℉ |
湿度测量范围 |
0%~100%RH |
湿度测量精度 |
±0.5%RH(测量环境23℃±2℃),±08%RH |
湿度分辨力 |
0.01%RH |
常规参数指标
技术指标 |
工作频段 |
2.4GHz Wi-Fi abg |
报警设置 |
温湿度上下限报警,支持无线链路状态指示 |
报警提示 |
高亮双色LED指示灯 |
数据处理 |
支持实时传输与数据记录功能 |
刷新间隔 |
2、5、10、30、60、255秒 |
记录间隔 |
2秒~24小时可调 |
延时启动 |
1~120秒 |
启动模式 |
立即启动 / 延时启动 / 定时启动 |
结束方式 |
存满为止 / 先进先出 / 定点存储 / 定时结束 |
定时启动 / 结束 |
任意时间开启 任意时间结束 |
通讯接口 |
Mini USB+Wi-Fi |
电池型号 |
宽温锂电池 |
电池续航 |
50小时(无线开) |
外接电源 |
7~24V直流 |
配套软件 |
VTK |
存储温度 |
-50℃~90℃ |
静电防护 |
±25KV |
防护等级 |
IP64 |
基本参数指标
外形尺寸 |
485×392×192mm |
整机重量 |
4.5kg |
工作站 |
Window 8 RT |
|
|
|
