商品編號: ZOGLAB-Meteorological

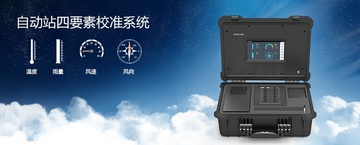

Meteorological Station > Four elements 氣象站校準系統> 四要素自動校準系統
Meteorological Station > Four elements
Measuring Data
Temperature generation device |
Temperature control range |
When the ambient temperature was 20 ℃, with ± 35 ℃ |
Temperature fluctuation |
0.07℃/5min |
The uniformity of temperature field |
0.07℃ |
Calibration medium |
Metal isothermal block |
T Specification |
Measuring range |
-50℃~50℃ |
Resolution |
0.01℃ |
Accuracy |
±0.05℃ |
Wind speed calibrator |
Measuring range |
2~20m/s |
Resolution |
0.1m/s |
Accuracy |
±(0.2+0.02v) , v is the wind speed |
The test of wind tester technical indicators |
Measuring range |
0°~360° |
Minimum lattice |
0.5° |
Accuracy |
1° |
Rainfall intensity control |
Heavy rain and strong control |
4mm/min(Control time:2’30”+ 10”) |
Light rain strong control |
1mm/min(Control time:10’+ 1’) |
General
Display area |
9" Diagonal 800×480 TFT LCD Module |
Power |
12V DC 4A |
Internal battery |
11.1V 4000mAh lithium polymer battery, can work more than 4 hours |
Dimensions |
485×392×192mm |
|
氣象站校準系統> 四要素自動校準系統
测量控制参数
温度发生装置指标 |
温度控制范围 |
环境温度20℃时,在±35℃内 |
温场波动性 |
0.07℃/5min |
温场均匀性 |
0.07℃ |
校准介质 |
金属等温块 |
温度技术指标 |
测量范围 |
-50℃~50℃ |
分辨力 |
0.01℃ |
精度 |
±0.05℃ |
风速校验器技术指标 |
测量范围 |
2~20m/s |
分辨力 |
0.1m/s |
精度 |
±(0.2+0.02v) , v为风速 |
风向检验对风向检验仪技术指标 |
测量范围 |
0°~360° |
最小分格 |
0.5° |
精度 |
1° |
雨强控制指标 |
大雨强控制 |
4mm/min(控制时间:2’30”+ 10”) |
小雨强控制 |
1mm/min(控制时间:10’+ 1’) |
常规参数 |
显示屏 |
9寸,800×480 TFT LCD显示屏 |
电源 |
12V DC 4A |
内置电池 |
11.1V 4000mAh锂聚合物电池,工作时间大于4小时 |
外形尺寸 |
485×392×192mm |
|
|
|
