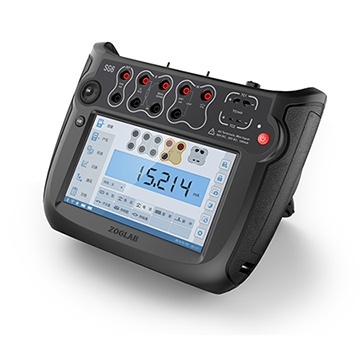

SG6 Signal generator & calibrator 智能信號校驗儀
SG6
Signal generator & calibrator
SG6 is an intelligent signal calibrator with high-precision measurement calibration and signal generator in one. It can simultaneously output / measure multiple electrical signals, and supports a variety of communication modes, such as RS485 bus, HART, Wi-Fi, BT, GPRS, GPS, Beidou, etc., with functionality, practicality, convenience.
With six working modes of measuring, generation, calibration, recording, communication, file, it means SG6 is not only a calibrator, but also a perfect combination of digital multimeter, signal generator, data logger, field communicator and file manager. With such a mutifunctional machine for easy operation, paperless calibration and file management, SG6 makes your work more efficient and accurate.
Measurement
Voltage measurement |
Range 1 |
-1~1V |
Resolution |
1μV |
Accuracy |
±3μV |
Range 2 |
-10~10V |
Resolution |
0.01mV |
Accuracy |
±0.2mV |
Input impedance |
> 2MΩ |
Support units |
V, mV, μV |
RES Measurement |
Range |
0~2000Ω |
Resolution |
0.001Ω |
Accuracy |
±0.005Ω |
Measuring current |
0.5mA, 1mA |
Support units |
Ω,KΩ |
4 Wires |
The same measuring technical specification |
3 Wires |
Add 10mΩ |
Digital coding |
Type |
7/8 Gray Code |
Electrical level |
5V, 12V |
Trigger |
Effective for high or low electrical level |
Current measurement |
Range |
4~20mA |
Resolution |
1μA |
Accuracy |
±5μA |
Input impedance |
< 10Ω |
Support units |
mA, μA |
Loop supply |
Internal supply 24V±10%(MAX 55mA)/ External 60VDC(MAX) |
Freq measurement |
Range |
0~100KHz |
Resolution |
0.001Hz |
Accuracy |
±0.01Hz |
Input impedance |
> 1MΩ |
Support units |
Hz, KHz |
Pulse measurement |
Range |
0~99999 |
Resolution |
1 pulse |
Accuracy |
1 pulse |
Input impedance |
> 1MΩ |
Trigger level |
dry content, wet content(Trigger level 2.0V) |
Generation
Voltage generation |
Range 1 |
-20~90mV |
Resolution |
2μV |
Accuracy |
±5μV |
Range 2 |
-1~10V |
Resolution |
0.2mV |
Accuracy |
±0.5mV |
Maximum load current |
5mA |
Short circult current |
> 100mA |
Load effect |
< 50μV / mA |
Support units |
V, mV, μV |
RES Analog |
Range 1 |
0~200Ω |
Resolution |
0.005Ω |
Accuracy |
±0.01Ω |
Range 2 |
0~2000Ω |
Resolution |
0.05Ω |
Accuracy |
±0.1Ω |
Stable time |
< 1ms |
Support units |
Ω, KΩ |
Digital coding |
Type |
7/8 Gray Code |
Electrical level |
5V, 12V |
Trigger |
Effective for high or low electrical level |
Current generation |
Range |
4~20mA |
Resolution |
1μA |
Accuracy |
±5μA |
Internal loop supply |
24V±5%, MAX 55mA |
Internal power supply maximum load |
24V /(Current generation)20mA when1140Ω, 50mA when 430Ω |
External loop |
The maximum supply voltage 60VDC |
Support units |
mA, μA |
Freq generation |
Range |
0~100KHz |
Resolution |
0.001Hz |
Accuracy |
±0.01Hz |
Maximum load current |
10mA |
Waveform |
The positive direction of wave |
Amplitude accuracy |
< 5% Waveform |
Support units |
Hz, KHz |
Pulse generation |
Range |
0~9999999 |
Resolution |
1 pulse |
Accuracy |
1 pulse |
Maximum load current |
10mA |
Interface
Specification |
Wi-Fi |
802.11a / b / g / n, 2.4GHz |
Bluetooth |
BT2.0 / BT 4.0 |
GPS |
L1 band, C / A code |
USB |
Double USB interface type A、type B |
LAN |
IEEE802.3 standard, 10Mbit / s、100Mbit / s |
RS232 / 485 |
The highest transmission rate is 115200bps, which supports Modbus |
HART |
Data transmission rate 10Mbps |
CAN |
The highest rate of transmission 1Mbps |
General
Specification |
Display |
7" Diagonal 800×480 TFT LCD display |
Touch panel |
Capacitive touch screen |
Backlight |
LED backlight, brightness adjustable |
Key |
Power key, Back key, OK key, Four direction key |
Battery type |
Rechargeable lithium-ion polymer, 2600 mAh, 7.4V × 2, Support hot plug |
Charging time |
About 4 hours |
Battery lifetime |
8~12 hours |
External supply |
DC12V , 4A |
Working temperature |
10~40℃ |
Working humidity |
10%~95%RH(No condensation) |
Storage temperature |
-20~70℃ |
Preheating time |
5 minutes after power on, meet the technical specification requirements |
Reading refresh frequency |
0.5s |
Logging inerval |
1 seconds~24 hours |
Data recording time |
According to the storage capacity, data can be exported |
Internal storage |
1G |
External storage |
Support SD / SDHC card , MAX 32G |
Alarm |
High and low limit , calibration cycle overrun alarm |
EMC |
EN50081-1 Class B , EN50082-1 Class B |
ESD Protection |
±25KV |
IP Class |
IP64 |
Weight |
1.2kg |
Dimensions |
255×195×55mm |
SG6 智能信號校驗儀
SG6是一款集高精度測量校準和信號產生於一體的智能信號校驗儀。它能夠同時輸出/ 測量多路電信號,並支持RS485總線、HART、Wi-Fi、BT、GPRS、GPS、北斗等多種通訊協議,具備功能性、實用性、便捷性。
SG6擁有7寸彩色觸摸屏、多語言操作界面;便攜輕巧、防水防塵、支持雙電池熱拔插,運用人機工程學設計,能夠廣泛應用於各類工業現場,如氣象、電力、石化、製藥、食品等行業。
測量、產生、校準、記錄、通訊、文檔這六種工作模式,意味著SG6不僅僅是一台校驗儀,它是數字萬用表、 信號發生器、數據記錄儀、現場通訊器和文檔管理器的完美結合,操作便捷,無紙化校準和文檔管理,一機多用,SG6使您的工作更加高效精準。
测量技术指标
电压测量 |
量程1 |
-1~1V |
分辨力 |
1μV |
精度 |
±3μV |
量程2 |
-10~10V |
分辨力 |
0.01mV |
精度 |
±0.2mV |
输入阻抗 |
> 2MΩ |
支持的单位 |
V,mV,μV |
电阻测量 |
量程 |
0~2000Ω |
分辨力 |
0.001Ω |
精度 |
±0.005Ω |
测量电流 |
0.5mA , 1mA |
支持的单位 |
Ω,KΩ |
4线制 |
和测量时技术指标相同 |
3线制 |
增加10mΩ |
数字编码 |
类型 |
7位 / 8位格雷码 |
电平 |
5V , 12V |
触发 |
高电平或低电平有效 |
电流测量 |
量程 |
4~20mA |
分辨力 |
1μA |
精度 |
±5μA |
输入阻抗 |
< 10Ω |
支持的单位 |
mA ,μA |
回路供电 |
内部24V±10%(最大55mA)/ 外部供电,最大60VDC |
频率测量 |
量程 |
0~100KHz |
分辨力 |
0.001Hz |
精度 |
±0.01Hz |
输入阻抗 |
> 1MΩ |
支持的单位 |
Hz , KHz |
脉冲测量 |
量程 |
0~99999 |
分辨力 |
1个脉冲 |
精度 |
1个脉冲 |
输入阻抗 |
> 1MΩ |
触发电平 |
干式触电,湿式触电(触发电平2.0V) |
产生技术指标
电压产生 |
量程1 |
-20~90mV |
分辨力 |
2μV |
精度 |
±5μV |
量程2 |
-1~10V |
分辨力 |
0.2mV |
精度 |
±0.5mV |
最大负载电流 |
5mA |
短路电流 |
> 100mA |
负载效应 |
< 50μV / mA |
支持的单位 |
V,mV,μV |
电阻模拟 |
量程1 |
0~200Ω |
分辨力 |
0.005Ω |
精度 |
±0.01Ω |
量程2 |
0~2000Ω |
分辨力 |
0.05Ω |
精度 |
±0.1Ω |
稳定时间 |
< 1ms |
支持的单位 |
Ω , KΩ |
数字编码 |
类型 |
7位 / 8位格雷码 |
电平 |
5V , 12V |
触发 |
高电平或低电平有效 |
电流产生 |
量程 |
4~20mA |
分辨力 |
1μA |
精度 |
±5μA |
内部回路供电 |
24V±5% , 最大55mA |
内部供电时最大负载 |
24V /(产生电流)1140Ω时20mA , 430Ω时50mA |
外部回路 |
最大供电电压60VDC |
支持的单位 |
mA , μA |
频率产生 |
量程 |
0~100KHz |
分辨力 |
0.001Hz |
精度 |
±0.01Hz |
最大负载电流 |
10mA |
波形 |
正方向波 |
振幅精度 |
< 5%振幅 |
支持的单位 |
Hz , KHz |
脉冲产生 |
量程 |
0~9999999 |
分辨力 |
1个脉冲 |
精度 |
1个脉冲 |
最大负载电流 |
10mA |
通讯接口
参数指标 |
Wi-Fi |
802.11a / b / g / n , 2.4GHz |
蓝牙 |
BT2.0 / BT4.0 |
GPS |
L1频段 , C / A码 |
USB |
双USB接口,A型、B型 |
LAN |
IEEE802.3标准 , 10Mbit / s、100Mbit / s |
RS232 / 485 |
最高传输速率为115200bps,支持 Modbus |
HART |
数据传输率1.2Kbps |
CAN |
最高传输速率1Mbps |
通用技术
参数指标 |
显示屏 |
7寸 , 800×480 TFT LCD显示屏 |
触摸屏 |
电容触摸屏 |
背光 |
LED背光 , 可调节 |
按键 |
电源键 , 返回键 , 确认键 , 方向键 |
电池 |
7.4V 2600mAh可充电锂聚合物电池×2 , 支持热插拔 |
充电时间 |
约4小时 |
电池工作时间 |
8~12小时 |
外接电源 |
12VDC , 4A |
工作温度 |
-10~40℃ |
工作湿度 |
10%~95%RH(不结露) |
存储温度 |
-20~70℃ |
预热时间 |
开机5分钟后 , 达到技术指标要求 |
显示刷新频率 |
0.5s |
数据记录间隔 |
1秒~24小时可选 |
数据记录时间 |
根据存储容量 , 数据可导出 |
内部存储 |
1G |
扩展存储 |
支持SD / SDHC卡 , 最大32G |
报警 |
上下限报警点,校准周期超限报警 |
电磁兼容标准 |
EN 50081-1 Class B , EN 50082-1 Class B |
静电防护 |
±25KV |
防护等级 |
IP64 |
整机重量 |
1.2kg |
外形尺寸 |
255×195×55mm |
|
|
|
|
