商品編號: ZOGLAB-TM2000

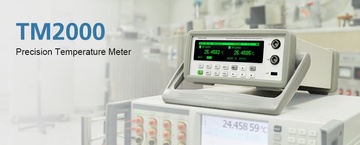

TM2000 Precision temperature meter 高精度溫度測量表
TM2000
Precision temperature meter
TM2000 is a high accuracy meter(small bridge), and can connect first class standard platinum resistance, supporting both PT25 and PT100, and the temperature resolution can reach to 0.1mK(0.0001℃). TM2000 is equipped with high-bright display, so clear reading could be effective under sunshine; Series, Ethernet and USB communication interfaces are available; Built-in battery can unceasingly work for more than 12 hours, humanized design and convenient operation.
Measureing Data
Specification |
T Measuring range |
-189~960℃ |
T Accuracy |
±0.005℃(Host machine),±0.005℃(PT25 first),±0.01℃(PT25 second) |
T Resolution |
0.001℃(could update to 0.0001℃) |
RES Measuring range |
0Ω~400Ω |
RES Accuracy |
±0.0005Ω(0Ω~20Ω),±25ppm(20Ω~400Ω) |
RES Resolution |
0.0001Ω |
General
Specification |
Temperature stability |
0.5ppm / ℃ |
Long-term stability |
6ppm / year |
Measuring period |
Two channel 2 seconds |
Drive current |
1.0mA / 1.5mA |
Display unit |
℃、℉、K、Ω |
Logging interval |
1 seconds~24 hours |
Maximum record data |
Internal 8000 units, external U Flash disk |
Probe configuration data |
Support configuration data for 128 probes |
Front probe data |
Four core special socket |
Post probe data |
Multipurpose socket |
Measurement calibration |
Fixed point calibration, linear calibration |
Interface |
RS232 / 485, USB, Ethernet (LAN), Web Service |
Working environment |
10~40℃ , 10%~95%RH(No condensation) |
Storage environment |
-20~70℃ , 10%~95%RH(No condensation) |
AC power |
100~240VAC 0.5A、50~60Hz |
Battery |
7.4V 2600mAH , lithium polymer battery |
Battery lifetime |
≤12 hours(Continuous work) |
EMC |
EN 50081-1 Class B , EN 50082-1 Class B |
ESD Protection |
±25KV |
Weight |
1.2kg |
Dimensions |
215×91×313.5mm |
|
TM2000 高精度溫度測量表
TM2000是一款高精度測量表(小型電橋),可接一等標準鉑電阻,支持雙路PT25、PT100,溫度分辨力高達0.1mK(0.0001℃)。 TM2000配備高亮顯示屏,陽光下能夠清晰讀數;支持串口,以太網,USB等多種通信方式;內置電池能夠連續工作超過12小時,人性化設計,操作便捷。
TM2000配有128支無源溫度傳感器記憶識別功能;前後各兩通道標準PT25 / PT100探頭接口,可切換使用;內置數據記錄器,數據可導出至外部U盤;擁有PPB級的測量電路,通過CE / FCC / VCCI / C-TICK等多種認證,是液體校準槽的理想參考標準,可用於不確定性極小的干體式校准或獨立測量。相較於專業實驗室的同級測量表,TM2000大大提升了工作效率,是一款高性價比的溫度基準表。
测量参数指标
技术指标 |
温度测量范围 |
-189℃~960℃ |
温度测量精度 |
±0.005℃(主机),±0.005℃(PT25一等),±0.01℃(PT25二等) |
温度分辨力 |
0.001℃(可扩展0.0001℃) |
电阻测量范围 |
0Ω~400Ω |
电阻测量精度 |
±0.0005Ω(0Ω~20Ω),±25ppm(20Ω~400Ω) |
电阻分辨力 |
0.0001Ω |
常规参数指标
技术指标 |
温度稳定性 |
0.5ppm / ℃ |
长期稳定性 |
6ppm / 年 |
测量周期 |
两通道2秒 |
激励电流 |
1.0mA / 1.5mA |
显示单位 |
℃、℉、K、Ω |
记录间隔 |
1秒~24小时可选 |
最大记录数据条数 |
内部8000组,外部U盘 |
探头配置数据 |
支持128个探头的配置数据 |
前置探头接口 |
四芯专用插座 |
后置探头接口 |
多用途插座 |
计量校准 |
固定点校准,线性校准 |
通讯接口 |
RS232 / 485、USB、以太网,web服务 |
工作环境 |
10~40℃ , 10%~95%RH(不结露) |
存储环境 |
-20℃~70℃ , 10%~95%RH(不结露) |
交流供电 |
100~240VAC 0.5A、50~60Hz |
电池供电 |
7.4V 2600mAH 锂聚合物电池 |
电池续航 |
连续工作12小时 |
电磁兼容标准 |
EN 50081-1 Class B , EN 50082-1 Class B |
静电防护 |
±25KV |
整机重量 |
1.2kg |
外形尺寸 |
215×91×313.5mm |
|
|
|
