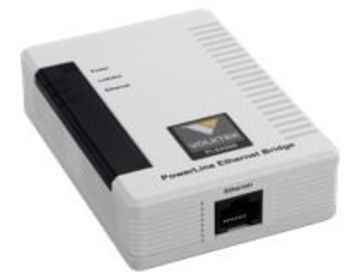

The PLE0200 provides convenient powerline access to office/family users by sharing a simple AC power line network. The embedded HomePlug AV interface enables you to connect one PC Ethernet port to another PC at the other end of power line, and not affected by walls or other obstructions that may block RF wireless communication.
In addition to the standard functions of a Power Line Ethernet Bridge, the PLE0200 is specially designed with 128-bit AES Encryption, 4-queues QoS, IEEE 802.1P, IP TOS, and logical network topology configuration capabilities which make it suitable for SOHO users as well as home users.
PLE0200 has one power line port, with both plug and inlet types available, and one Ethernet RJ-45 port for PC or Switch connection of data rates up to 200Mbps. Versatile LEDs on the front panel display information about network activities. |
|
|
|
|
|
|
|
|
|
|
l One power line port
l One Ethernet port
l Data rate up to 200Mbps
l 128-bit AES encryption
l Four-level QoS
l IEEE 802.1P priority
l IP TOS
l Logical Networks Topology
l Plug & Inlet types
l Full Compatibility tested |
|
|
|
|
|
|
|
Main Chipset:
Standard Support:
Interface:
Bandwidth:
LED:
Operating Temperature:
Operating Humidity:
Storage Temperature:
Storage Humidity:
Certifications: |
Intellon INT6000 + RTL8201
Homeplug AV
Power Line Port x 1
Ethernet (RJ-45) x 1
Max. 200Mbps
Power: Yellow/Green
On: Power On
Off: Power Off
Power Line: Yellow-Green
On: Link
Blink: Activity
Ethernet: Yellow-Green
On: Link
Blink: Activity
0~40°C (32~104°F)
10%~90% non-condensing
-25~75°C (-13~167°F)
0%~95% non-condensing
FCC Part 15, Part B, Class B, CE Class B
|
|
|
|
|
