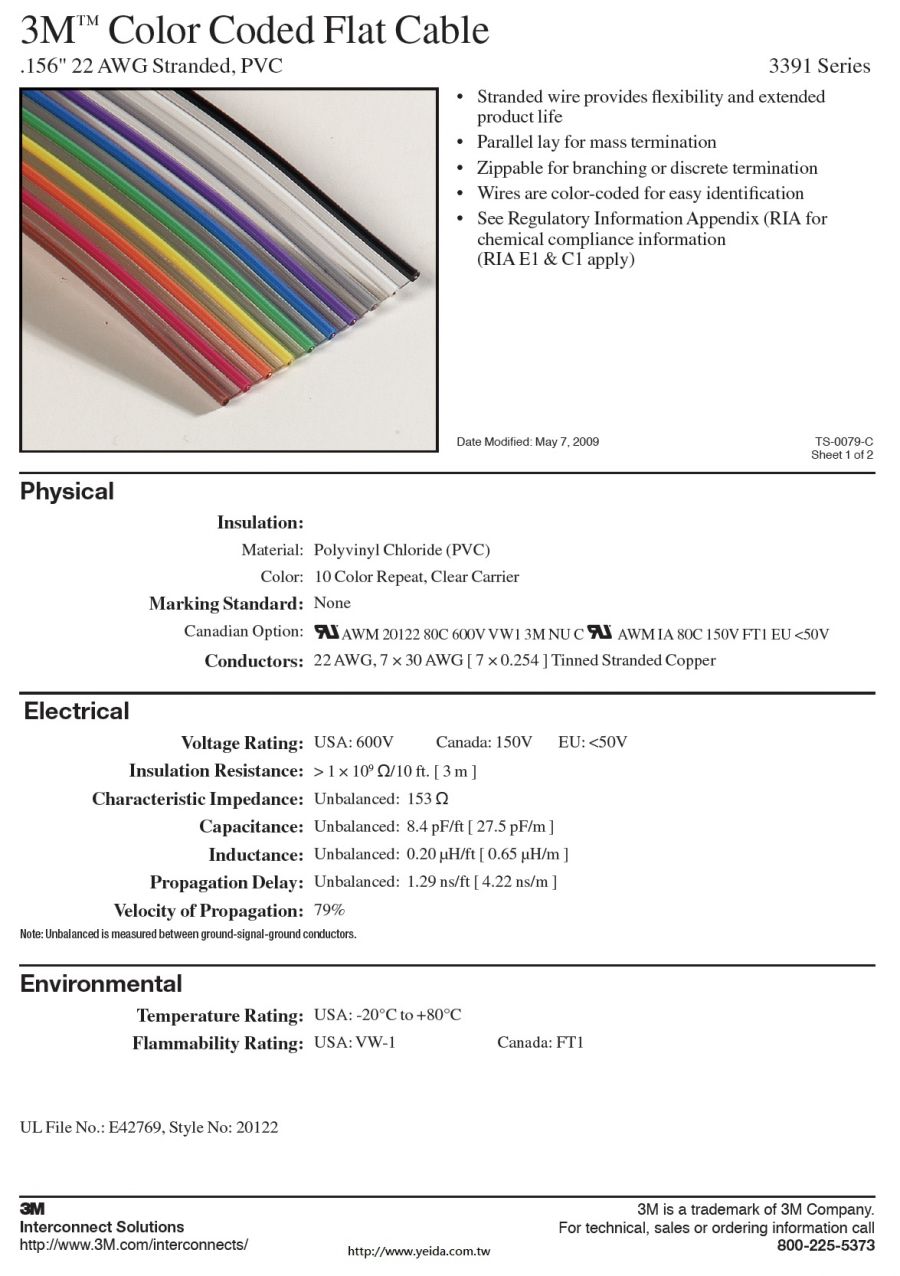

3M™ Color Coded Flat Cable
.156" 22 AWG Stranded, PVC 3391 Series
• Stranded wire provides flexibility and extended
     product life
• Parallel lay for mass termination
• Zippable for branching or discrete termination
• Wires are color-coded for easy identification
• See Regulatory Information Appendix (RIA for
     chemical compliance information
     (RIA E1 & C1 apply)
　

Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: 10 Color Repeat, Clear Carrier
Marking Standard: None
Canadian Option: AWM 20122 80C 600V VW1 3M NU C AWM IA 80C 150V FT1 EU < 50V
Conductors: 22 AWG, 7 × 30 AWG [ 7 × 0.254 ] Tinned Stranded Copper
　

Electrical
Voltage Rating: USA: 600V Canada: 150V EU: < 50V
Insulation Resistance: > 1 × 109 Ω/10 ft. [ 3 m ]
Characteristic Impedance: Unbalanced: 153 Ω
Capacitance: Unbalanced: 8.4 pF/ft [ 27.5 pF/m ]
Inductance: Unbalanced: 0.20 μH/ft [ 0.65 μH/m ]
Propagation Delay: Unbalanced: 1.29 ns/ft [ 4.22 ns/m ]
Velocity of Propagation: 79%
Note: Unbalanced is measured between ground-signal-ground conductors.
　

Environmental
Temperature Rating: USA: -20°C to +80°C
Flammability Rating: USA: VW-1 Canada: FT1
UL File No.: E42769, Style No: 20122
