    首頁 > > Hosiwell- RS422/RS485 Industrial Data Cable-RS422/RS485工業電腦線

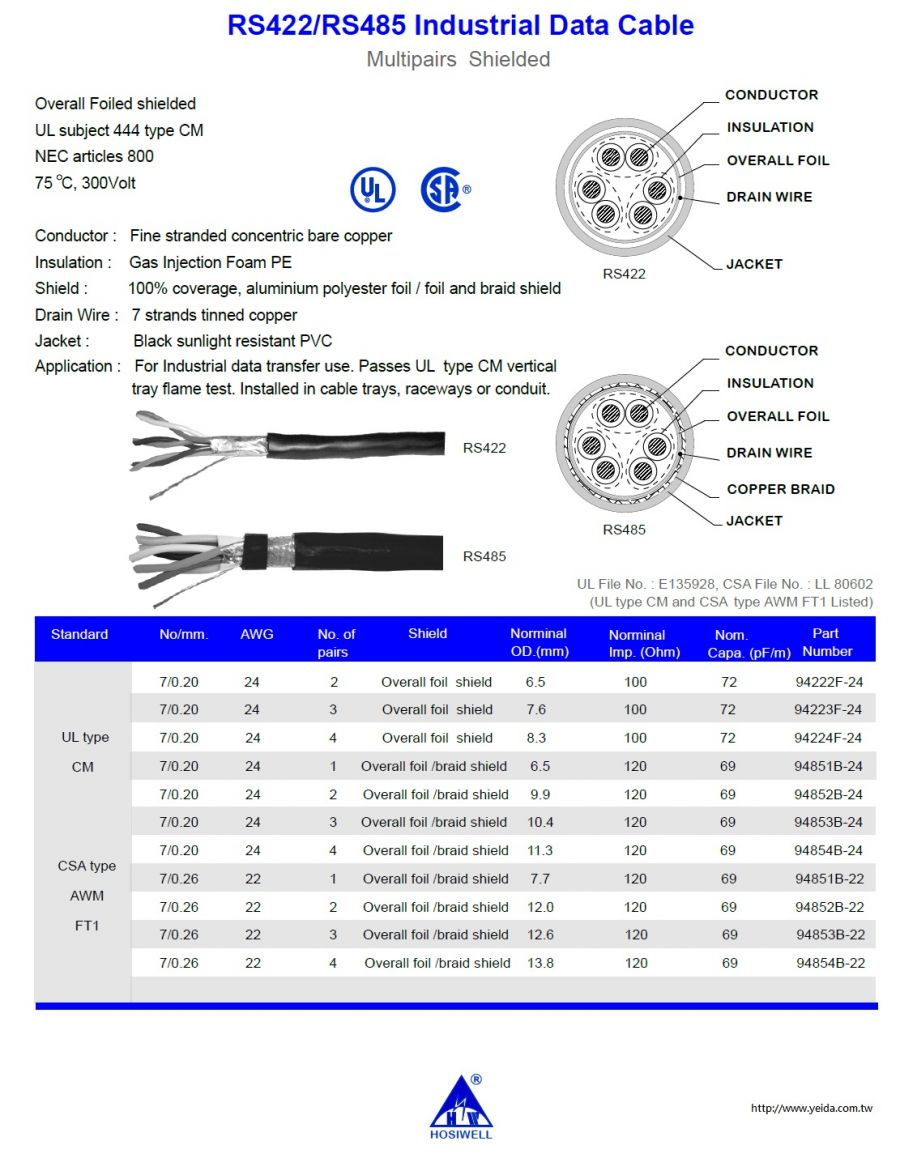

    RS-485 電腦專用線 120 歐姆 22 AWG, DCR 57.4 ohm/km ,24 AWG, DCR 93.25 ohm/km
    看原圖
    		代碼 HOSIWELL-RS485


    商品編號: Hosiwell-RS485, UL444, CSA,CM

    RS-485 工業電腦專用電線 120 歐姆 22 AWG, DCR 57.4 ohm/km ,24 AWG, DCR 93.25 ohm/km
    Low Capacitance , Foam PE Insulation, Pairs Cable with Overall Foil/Braid Shielded & Drain Wire

    Product Description

    　


    Low Capacitance , Foam PE Insulation, Pairs Cable with Overall Foil/Braid Shielded & Drain Wire
    120 Ohms +/-20 % Impedance
    UL type CM CSA PCC
    75°C , 300 Volt

    Overall Foiled shielded
    UL subject 444 type CM
    NEC articles 800
    75 C, 300Volt


    Conductor : Fine stranded concentric bare copper
    Insulation : Gas Injection Foam PE
    Shield : 100% coverage, aluminium polyester foil / foil and braid shield
    Drain Wire : 7 strands tinned copper
    Jacket : Black sunlight resistant PVC
    Application : For Industrial data transfer use. Passes UL type CM vertical
    tray flame test. Installed in cable trays, raceways or conduit.

    KEYWORDS: RS485, 工業電腦, 專用電線, 120 歐姆, 低電容, Low Capacitance ,UL444
