    Hosiwell-IEDC22XXP UL PE-PVC 鋁箔+銅網 對型資訊信號延長線
    看原圖
    		HOSIWELL-IEDC22XXP


    商品編號: Hosiwell-IEDC22XXP

    Hosiwell-IEDC22XXP UL PE-PVC 鋁箔+銅網 對型資訊信號延長線

    Product Description

    　


    Tinned stranded copper conductor .
    Color coded PE insulation.
    Shield with aluminum - mylar tape 100% coverage .
    Tinned copper braid shield 85% coverage.
    Tinned copper drain wire (22AWG , 7/0.26) .
    Weatherproof and sunlight resistance PVC jacket .
    Anti-ant and mouse destroy PVC jacket available .
    Rated temp. 75°C, rated voltage 300V.
    Low capacitance : 16 ± 2 pf/ft
    Transmission distance : UP to 500 ft
    UL File No.: E125840, CSA File No.: LL80602 .
    ( UL type CL2 , CL3 and CSA type AWM FT4 Listed )
    　

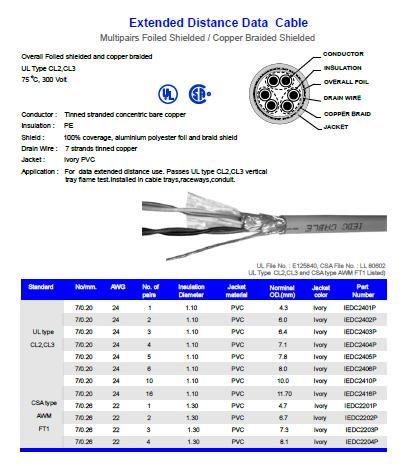

    Overall Foiled shielded and copper braided
    UL Type CL2,CL3
    75 C, 300 Volt


    Conductor : Tinned stranded concentric bare copper
    Insulation : PE
    Shield : 100% coverage, aluminium polyester foil and braid shield
    Drain Wire : 7 strands tinned copper
    Jacket : Ivory PVC
    Application : For data extended distance use. Passes UL type CL2,CL3 vertical
    tray flame test.Installed in cable trays,raceways,conduit.
