    首頁 > > IF-UL-PVC Multiconductors Foiled Shielded 鋁箔麥拉隔離電纜

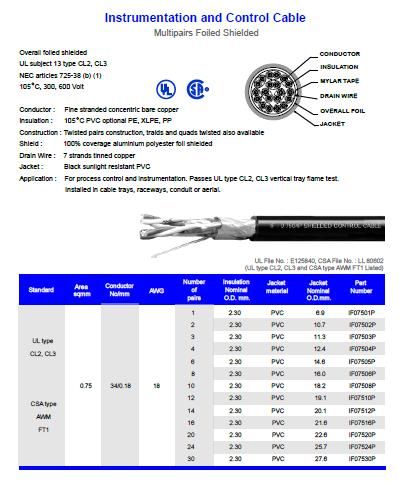

    Hosiwell-IF075XXP UL-PVC麥拉鋁箔隔離線18 AWG,0.75 sqmm. DCR 21.9 Ohm/km Multipairs
    看原圖
    		HOSIWELL-IF075XXP


    商品編號: Hosiwell-IF075XXP

    Hosiwell-IF075XXP UL-PVC麥拉鋁箔隔離線18 AWG,0.75 sqmm. DCR 21.9 Ohm/km Multipairs

    　
    Product Description

    　


    Bare copper conductor .
    Color or number coded PVC , PE , PP insulation available .
    Shield with aluminum - mylar tape 100% coverage .
    Tinned copper drain wire (22AWG , 7/0.26) .
    Weatherproof and sunlight resistance PVC jacket .
    Anti-ant and mouse destroy PVC jacket-available .
    Rated temp. 105°C (PVC) , 75°C (PP,PE) rated voltage 600V.
    UL File No.: E125840 , CSA File No.: LL80602 .
    ( UL type CL2 , CL3 and CSA type AWM FT1 Listed )
    　

    Overall Foiled shielded
    UL subject 13 type CL2, CL3
    NEC articles 725-38 (b) (1)
    105 C, 300, 600 Volt


    Conductor : Fine stranded concentric bare copper
    Insulation : 105 C PVC optional PE, XLPE, PPC

    onstruction : Twisted pairs construction, traids and quads twisted also available

    Shield : 100% coverage, aluminium polyester foil shield
    Drain Wire : 7 strands tinned copper
    Jacket : Black sunlight resistant PVC
    Application : For process control and instrumentation. Passes UL type CL2, CL3 vertical tray flame test.
    Installed in cable trays, raceways, conduit or aerial.
