    首頁 > > IM-UL-105度-600V-抗UV-Multiconductors Unshielded-PVC控制電纜

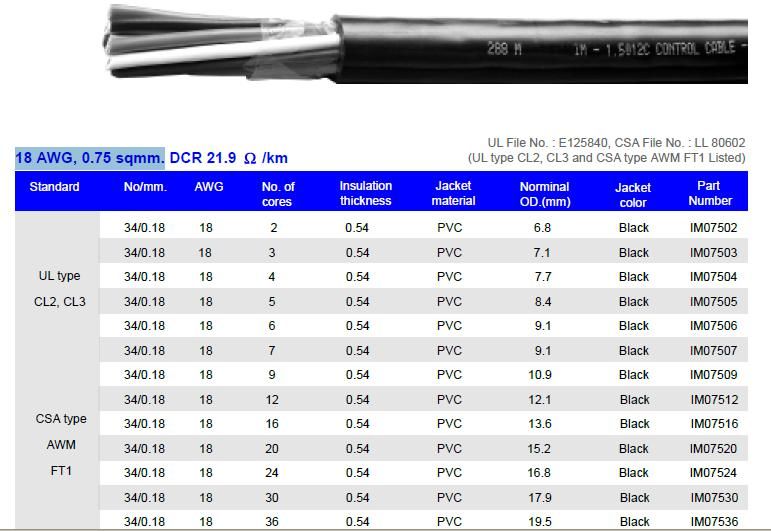

    Hosiwell-IM075XX 18 AWG, 0.75 sqmm.UL-105度-600V-抗UV-PVC控制電纜
    看原圖
    		HOSIWELL-IM075XX


    商品編號: Hosiwell-IM075XX

    Hosiwell-IM075XX 18 AWG, 0.75 sqmm.UL-105度-600V-抗UV-PVC控制電纜

    Product Description

    　


    Bare stranded copper conductor .
    Color or number coded PVC , PE , PP insulation available.
    With mylar tape 100% coverage.
    Weatherproof and sunlight resistance PVC jacket.
    Anti-ant and mouse destroy PVC jacket-available .
    Rated temp.105°C , rated voltage 600V.
    UL File No.: E125840 , CSA File No.: LL80602 .
    ( UL type CL2 , CL3 and CSA type AWM FT1 Listed )

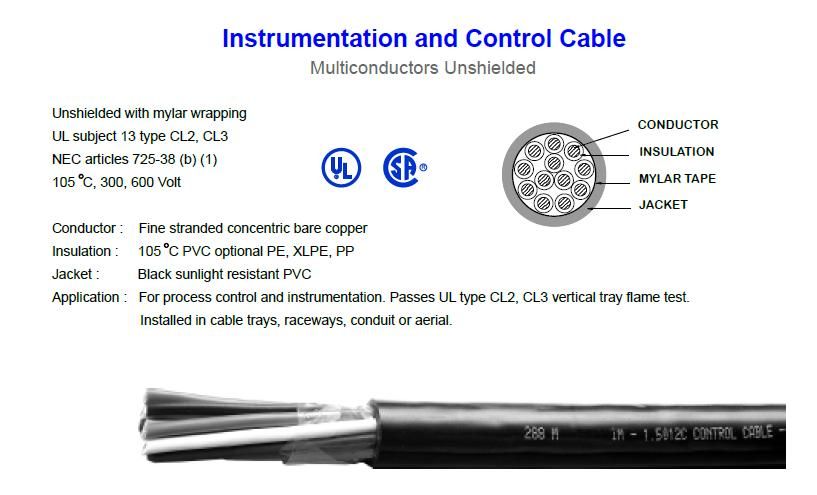

    Unshielded with mylar wrapping
    UL subject 13 type CL2, CL3
    NEC articles 725-38 (b) (1)
    105 C, 300, 600 Volt

    Conductor : Fine stranded concentric bare copper
    Insulation : 105 C PVC optional PE, XLPE, PP
    Jacket : Black sunlight resistant PVC
    Application : For process control and instrumentation. Passes UL type CL2, CL3 vertical tray flame test.
    Installed in cable trays, raceways, conduit or aerial.
