Hosiwell-IPS100XX 17 AWG, 1.00 sqmm. 雙層PVC外被-金屬鎧裝電纜

HOSIWELL-IPS100XX

商品編號: Hosiwell-IPS100XX

Hosiwell-IPS100XX 17 AWG, 1.00 sqmm. 雙層PVC外被-金屬鎧裝電纜

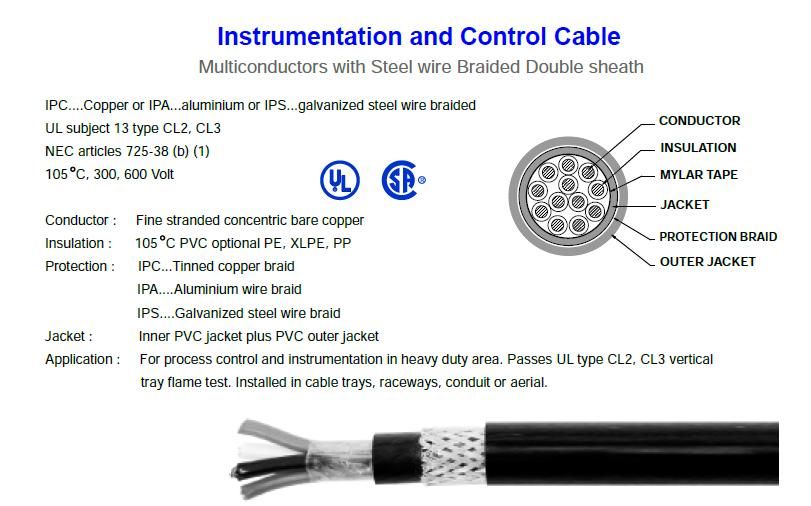

Product Description

UL subject 13 type CL2 , CL3
NEC articles 725-38 (b) (1)
105 °C , 300, 600 Volt
Conductor : Fine stranded concetric bare copper
Insulation : 105 °C PVC optional PE, XLPE, PP
Protection : IPC...Copper or IPA...aluminium or IPS...galvanized steel wire braided
Jacket : Inner PVC jacket plus PVC outer jacket
Application : For process control and instrumentation in heavy duty area. Oasses UL type CL2, CL3 vertical tray flame test. Installed in cable trays, receways, conduit or aerial.

IPC....Copper or IPA...aluminium or IPS...galvanized steel wire braided
UL subject 13 type CL2, CL3
NEC articles 725-38 (b) (1)
105 C, 300, 600 Volt

Conductor : Fine stranded concentric bare copper
Insulation : 105 C PVC optional PE, XLPE, PP
Protection : IPC...Tinned copper braid
IPA....Aluminium wire braid
IPS....Galvanized steel wire braid
Jacket : Inner PVC jacket plus PVC outer jacket

Application : For process control and instrumentation in heavy duty area. Passes UL type CL2, CL3 vertical
tray flame test. Installed in cable trays, raceways, conduit or aerial.
