    Hosiwell- P/N :P/N-9012 Fire Alarm-UL火警警報用電纜
    看原圖
    		HOSIWELL-9012


    商品編號: Hosiwell-9012

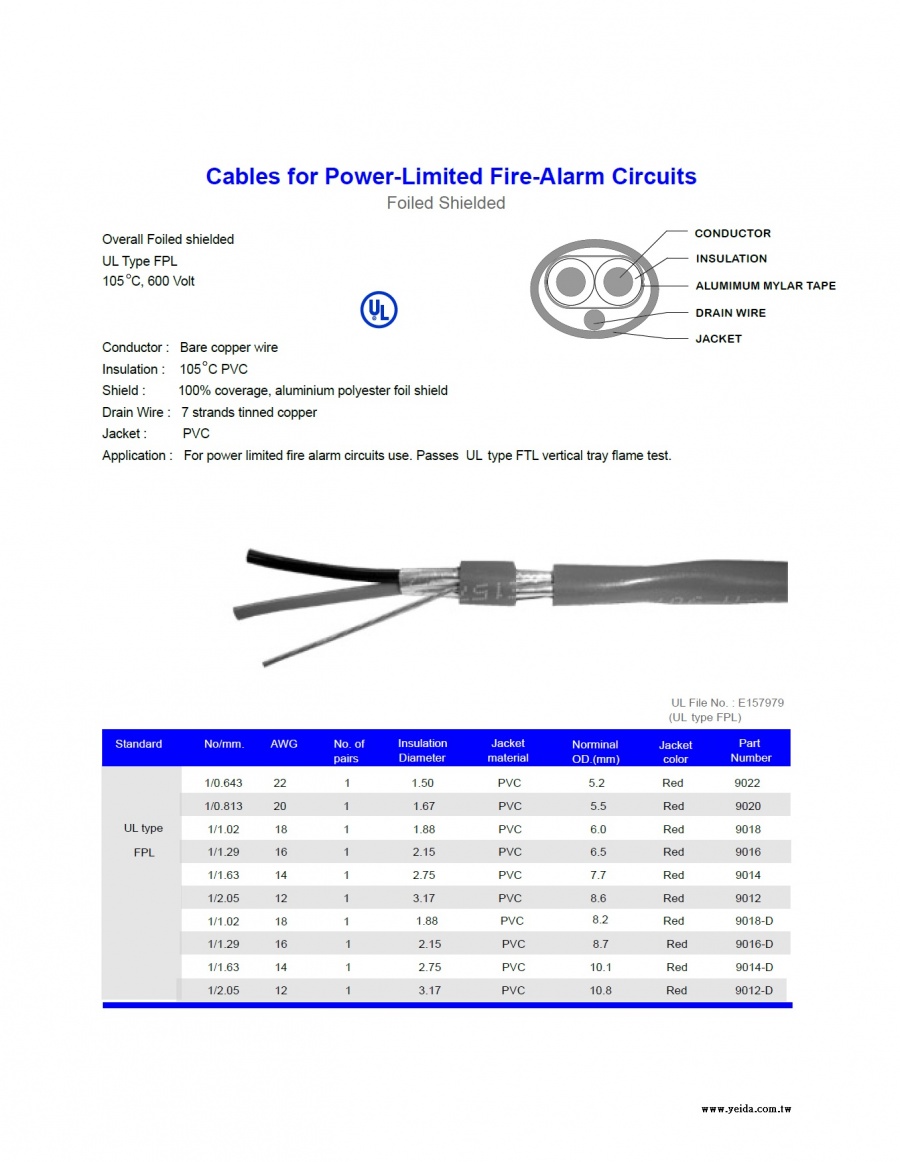

    Hosiwell- P/N :P/N-9012 Fire Alarm-UL火警警報用電纜

    Product Description

    　


    Bare copper conductor .
    Color coded black and red .
    Shield with aluminum - mylar tape 100% coverage .
    Tinned copper drain wire .
    Low smoke and no halogen LSZH jacket .
    Rated temp. 105°C , rated voltage 600V.

    Conductor : Bare copper wire
    Insulation : 105 C PVC
    Shield : 100% coverage, aluminium polyester foil shield
    Drain Wire : 7 strands tinned copper
    Jacket : PVC
    Application : For power limited fire alarm circuits use. Passes UL type FTL vertical tray flame test.
