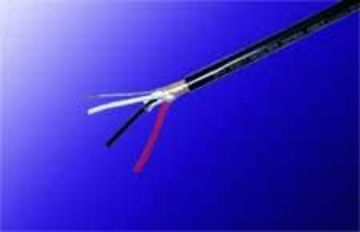

    PVC (A+E) aluminum - mylar tape Shieded Cable PVC 麥拉鋁箔屏蔽隔離儀錶控制電纜線Awg 17*2C-50C
    看原圖
    		F1702

    PVC (A+E) aluminum - mylar tape Shieded Cable PVC 麥拉鋁箔屏蔽隔離儀錶控制電纜線Awg 17*2C-50C

    Product Description:
    • Bare copper conductor .
    • Color or number coded PVC , PE , PP insulation available .
    • Shield with aluminum - mylar tape 100% coverage .
    • Bare copper braid shield 90% coverage.
    • Tinned copper drain wire (22AWG , 7/0.26) .
    • Weatherproof and sunlight resistance PVC jacket .
    • LSFH.Anti-ant and mouse destroy PVC jacket available .
    • Rated temp. 105oC , rated voltage 600V.
    • ( UL type CL2 , CL3 and CSA type AWM FT1 Listed available )
    Part No. Cable Type No.Of Cores Conductor Insulation Jacket Shield with aluminum - mylar tape 100% coverage Standard
    Jacket
    Color    		 Standard
    Length
    (ft/reel)    		 Weight
    (kg/km)
    mm2
    No./mm
    AWG
    D.C.R    		 Nom
    OD
    (mm)    		 Nom
    OD
    (mm)
    F1702
    PVC (A+E) Awg17*2C
    		2 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 7.1 aluminum - mylar tape + drain wire Black 1000 63.9
    F1703
    PVC (A+E) Awg17*3C
    		3 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 7.5 aluminum - mylar tape + drain wire Black 1000 80.6
    F1704
    PVC (A+E) Awg17*4C
    		4 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 8.1 aluminum - mylar tape + drain wire Black 1000 98.3
    F1705
    PVC (A+E) Awg17*5C
    		5 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 8.8 aluminum - mylar tape + drain wire Black 1000 116.5
    F1706
    PVC (A+E) Awg17*6C
    		6 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 9.7 aluminum - mylar tape + drain wire Black 1000 139.1
    F1707
    PVC (A+E) Awg17*7C
    		7 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 9.7 aluminum - mylar tape + drain wire Black 1000 153.6
    F1708
    PVC (A+E) Awg17*8C
    		8 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 10.40 aluminum - mylar tape + drain wire Black 1000 172.2
    F1710
    PVC (A+E) Awg17*10C
    		10 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 12.3 aluminum - mylar tape + drain wire Black 1000 216.6
    F1712
    PVC (A+E) Awg17*12C
    		12 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 12.9 aluminum - mylar tape + drain wire Black 1000 254.0
    F1714
    PVC (A+E) Awg17*14C
    		14 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 13.5 aluminum - mylar tape + drain wire Black 1000 287.0
    F1716
    PVC (A+E) Awg17*16C
    		16 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 14.4 aluminum - mylar tape + drain wire Black 1000 327.2
    F1718
    PVC (A+E) Awg17*18C
    		18 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 15.1 aluminum - mylar tape + drain wire Black 1000 361.2
    F1720
    PVC (A+E) Awg17*20C
    		20 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 15.8 aluminum - mylar tape + drain wire Black 1000 395.3
    F1724 PVC (A+E) Awg17*24C 24 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 17.7 aluminum - mylar tape + drain wire Black 1000 473.5
    F1725
    PVC (A+E) Awg17*25C
    		25 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 17.7 aluminum - mylar tape + drain wire Black 1000 488.0
    F1730
    PVC (A+E) Awg17*30C
    		30 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 18.9 aluminum - mylar tape + drain wire Black 1000 576.7
    F1736
    PVC (A+E) Awg17*36C
    		36 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 20.3 aluminum - mylar tape + drain wire Black 1000 675.1
    F1740
    PVC (A+E) Awg17*40C
    		40 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 21.2 aluminum - mylar tape + drain wire Black 1000 748.4
    F1750
    PVC (A+E) Awg17*50C
    		50 1.00 mm2
    41 / 0.18mm
    17AWG
    17.4 Ω/Km    		 2.4 24.3 aluminum - mylar tape + drain wire Black 1000 938.4
