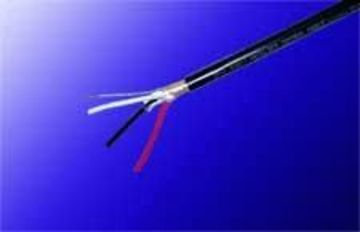

    PVC (A+E) aluminum - mylar tape Shieded Cable PVC 麥拉鋁箔屏蔽隔離儀錶控制電纜線Awg 20*2C-50C
    看原圖
    		F2002

    PVC (A+E) aluminum - mylar tape Shieded Cable PVC 麥拉鋁箔屏蔽隔離儀錶控制電纜線Awg 20*2C-50C

    Product Description:
    • Bare copper conductor .
    • Color or number coded PVC , PE , PP insulation available .
    • Shield with aluminum - mylar tape 100% coverage .
    • Bare copper braid shield 90% coverage.
    • Tinned copper drain wire (22AWG , 7/0.26) .
    • Weatherproof and sunlight resistance PVC jacket .
    • LSFH.Anti-ant and mouse destroy PVC jacket available .
    • Rated temp. 105oC , rated voltage 600V.
    • ( UL type CL2 , CL3 and CSA type AWM FT1 Listed available )
    Part No. Cable Type No.Of Cores Conductor Insulation Shield Jacket Standard
    Jacket
    Color    		 Standard
    Length
    (ft/reel)    		 Weight
    (kg/km)
    mm2
    No./mm
    AWG
    D.C.R    		 Nom
    OD
    (mm)    		 aluminum - mylar tape 100% coverage Nom
    OD
    (mm)
    F2002
    PVC (A+E) Awg20*2C
    		2 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 5.9 Black 1000 44.2
    F2003
    PVC (A+E) Awg20*3C
    		3 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 6.2 Black 1000 53.6
    F2004
    PVC (A+E) Awg20*4C
    		4 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 6.6 Black 1000 63.6
    F2005
    PVC (A+E) Awg20*5C
    		5 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 7.2 Black 1000 74.6
    F2006
    PVC (A+E) Awg20*6C
    		6 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 7.7 Black 1000 85.1
    F2007 PVC (A+E) Awg20*7C 7 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 7.7 Black 1000 92.9
    F2008
    PVC (A+E) Awg20*8C
    		8 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 8.2 Black 1000 104.2
    F2009
    PVC (A+E) Awg20*9C
    		9 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 8.8 Black 1000 114.4
    F2010
    PVC (A+E) Awg20*10C
    		10 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 9.7 Black 1000 130.3
    F2012 PVC (A+E) Awg20*12C 12 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 10.0 Black 1000 147.2
    F2014
    PVC (A+E) Awg20*14C
    		14 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 10.4 Black 1000 165.7
    F2016
    PVC (A+E) Awg20*16C
    		16 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 11.2 Black 1000 189.9
    F2020
    PVC (A+E) Awg20*20C
    		20 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 12.2 Black 1000 227.4
    F2021
    PVC (A+E) Awg20*21C
    		21 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 12.2 Black 1000 235.3
    F2024
    PVC (A+E) Awg20*24C
    		24 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 13.7 Black 1000 273.0
    F2025
    PVC (A+E) Awg20*25C
    		25 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 13.7 Black 1000 280.9
    F2030
    PVC (A+E) Awg20*30C
    		30 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 14.6 Black 1000 331.3
    F2036 PVC (A+E) Awg20*36C 36 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 15.7 Black 1000 386.2
    F2040
    PVC (A+E) Awg20*40C
    		40 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 16.2 Black 1000 421.0
    F2050
    PVC (A+E) Awg20*50C
    		50 0.50 mm2
    21 / 0.18mm
    20AWG
    34.4 Ω/Km    		 1.8 aluminum - mylar tape + drain wire 18.6 Black 1000 530.4
