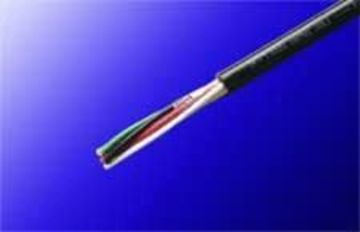

    PVC Control Cable PVC 細控制電纜線 0.75mm2*2C-50C
    看原圖
    		P0702

    PVC Control Cable PVC 細控制電纜線 0.75mm2*2C-50C

    Product Description:
    • Bare copper conductor .
    • Color or number coded PVC , PE , PP insulation available .
    • With mylar tape 100% coverage .
    • Weatherproof and sunlight resistance PVC jacket .
    • Anti-ant and mouse destroy PVC jacket. LSFH -available .
    • Rated temp. 60oC to 105oC , rated voltage 600V.
    Part No. Cable Type No.Of

    Cores

    		Conductor Insulation Jacket Standard
    Jacket
    Color    		 Standard
    Length
    (ft/reel)    		 Weight
    (kg/km)    		 Memo
    mm2
    No./mm
    AWG
    D.C.R    		 Nom
    OD
    (mm)    		 Nom
    OD
    (mm)
    P07502
    PVC Cable 0.75mm2*2C
    		2 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 6.8 Black 1000 54.6
    P07503
    PVC Cable 0.75mm2*3C
    		3 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 7.1 Black 1000 68.8
    P07504
    PVC Cable 0.75mm2*4C
    		4 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 7.7 Black 1000 84.5
    P07505
    PVC Cable 0.75mm2*5C
    		5 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 8.4 Black 1000 100.8
    P07506
    PVC Cable 0.75mm2*6C
    		6 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 9.1 Black 1000 117.1
    P07507
    PVC Cable 0.75mm2*7C
    		7 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 9.1 Black 1000 129.7
    P07508
    PVC Cable 0.75mm2*8C
    		8 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 10.0 Black 1000 150.5
    P07509
    PVC Cable 0.75mm2*9C
    		9 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 10.9 Black 1000 172.0
    P07510
    PVC Cable 0.75mm2*10C
    		10 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 11.8 Black 1000 190.1
    P07512
    PVC Cable 0.75mm2*12C
    		12 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 12.1 Black 1000 217.3
    P07514
    PVC Cable 0.75mm2*14C
    		14 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 13.0 Black 1000 252.7
    P07516
    PVC Cable 0.75mm2*16C
    		16 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 13.6 Black 1000 281.9
    P07520
    PVC Cable 0.75mm2*20C
    		20 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 15.2 Black 1000 348.6
    P07521
    PVC Cable 0.75mm2*21C
    		21 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 15.2 Black 1000 361.2
    P07524
    PVC Cable 0.75mm2*24C
    		24 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 16.8 Black 1000 410.3
    P07525
    PVC Cable 0.75mm2*25C
    		25 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 16.8 Black 1000 423.0
    P07530
    PVC Cable 0.75mm2*30C
    		30 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 17.9 Black 1000 500.7
    P07536
    PVC Cable 0.75mm2*36C
    		36 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 19.5 Black 1000 595.8
    P07540
    PVC Cable 0.75mm2*40C
    		40 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 20.2 Black 1000 652.0
    P07550
    PVC Cable 0.75mm2*50C
    		50 0.75 mm2
    34 / 0.18mm
    18AWG
    21.9 Ω/Km    		 2.3 23.1 Black 1000 819.1
