PVC Control Cable PVC 細控制電纜線1.25mm2*2C-50C

P12502

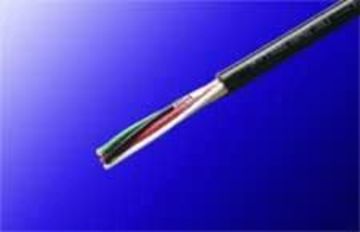

PVC Control Cable PVC 細控制電纜線1.25mm2*2C-50C

Product Description:

Bare copper conductor .
Color or number coded PVC , PE , PP insulation available .
With mylar tape 100% coverage .
Weatherproof and sunlight resistance PVC jacket .
Anti-ant and mouse destroy PVC jacket. LSFH -available .
Rated temp. 60^oC to 105^oC , rated voltage 600V.

Part No.

Cable Type

No.Of Cores

Conductor

Insulation

Jacket

Standard
Jacket
Color

Standard
Length
(ft/reel)

Weight
(kg/km)

Memo

mm²
No./mm
AWG
D.C.R

Nom
OD
(mm)

P12502	PVC Cable 1.25mm2*2C	2	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	7.2	Black	1000	65.6
P12503	PVC Cable 1.25mm2*3C	3	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	7.6	Black	1000	84.8
P12504	PVC Cable 1.25mm2*4C	4	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	8.2	Black	1000	105.1
P12505	PVC Cable 1.25mm2*5C	5	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	8.9	Black	1000	125.8
P12506	PVC Cable 1.25mm2*6C	6	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	9.9	Black	1000	151.6
P12507	PVC Cable 1.25mm2*7C	7	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	9.9	Black	1000	168.7
P12508	PVC Cable 1.25mm2*8C	8	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	10.9	Black	1000	195.2
P12509	PVC Cable 1.25mm2*9C	9	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	11.6	Black	1000	216.6
P12510	PVC Cable 1.25mm2*10C	10	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	12.6	Black	1000	239.8
P12512	PVC Cable 1.25mm2*12C	12	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	13.2	Black	1000	282.5
P12514	PVC Cable 1.25mm2*14C	14	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	13.8	Black	1000	320.7
P12516	PVC Cable 1.25mm2*16C	16	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	14.8	Black	1000	366.9
P12520	PVC Cable 1.25mm2*20C	20	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	16.3	Black	1000	445.9
P12521	PVC Cable 1.25mm2*21C	21	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	16.3	Black	1000	463.1
P12524	PVC Cable 1.25mm2*24C	24	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	18.2	Black	1000	534.6
P12525	PVC Cable 1.25mm2*25C	25	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	18.2	Black	1000	551.7
P12530	PVC Cable 1.25mm2*30C	30	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	19.4	Black	1000	653.6
P12536	PVC Cable 1.25mm2*36C	36	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	21.1	Black	1000	777.9
P12540	PVC Cable 1.25mm2*40C	40	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	21.9	Black	1000	853.1
P12550	PVC Cable 1.25mm2*50C	50	1.25 mm² 52 / 0.18mm 16AWG 13.7 Ω/Km	2.5	25.0	Black	1000	1,069.6
