    LS HFSC-FR 22D (S.F. 7/8")
    看原圖
    		HFSC-22D

    LS HFSC-FR 22D (S.F. 7/8")

    • Super Flexible Construction HFSC series are super flexible type for small bending installation.
    • Low VSWR The low VSWR of HFSC coaxial cable series should guarantee your RF system without noise.
    • Complete Protection The outer conductor of HFSC coaxial cable series makes important contribution to minimize system interferences.
    • Easy connecting Full line of high-quality connector and cable preparation tools to minimize installation time and cost

    Construction
    Inner Conductor Material / Construction :  Copper-Clad Aluminum Wire
    Inner Conductor Diameter (㎜) :  9.4

    Dielectric Material / Construction : Foamed Polyethylene
    DielectricDiameter (㎜): 23.0

    Outer ConductorMaterial / Construction :  Annularly Corrugated, Copper Tube
    Outer Conductor Diameter (㎜) :  25.2

    Jacket Diameter Standard Jacket (㎜)  : 27.9
    Jacket Diameter Halogen-Free / Flame-Retardant Jacket (㎜) : 27.9

    HFSC 22D (7/8″)
    Min. Bending Radius (㎜) 125
    Recommended
    Operating
    Temperature    		 Standard Jacket (ﾟC)  -40 ~ +80
    Halogen-Free / Flame-Retardant Jacket ©  -30 ~ +80
    Nominal Weight Standard Jacket (㎏/m 471
    Halogen-Free /Flame-Retardant Jacket (㎏/m) 494
    Flat Plate Crush Resistance (㎏/㎜) 1.4
    Max. Pulling Force (㎏) 102


    Electrical Characteristics
        HFSC 22D (7/8″)
    DC Resistance
    Ω/1,000m
    (Ω/1,000ft)    		 Inner Conductor  3.00 (0.91)
    Outer Conductor 1.40 (0.43)
    Insulation Resistance(MΩ•㎞) 10,000
    Dielectric Strength(for 1 Min.) DC 6,000V
    Velocity of Propagation(%) 88
    Peak Power Rating(㎾) 90
    Max. Operating Frequency(㎓) 5.0
    Characteristic Impedance(Ω) 50
    Return Loss(Typical Value) (㏈)  28

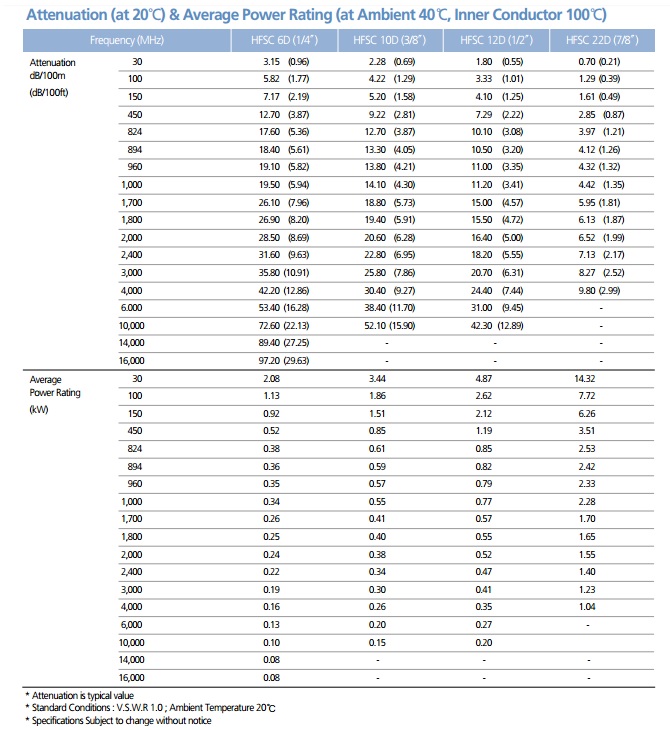

    Attenuation (at 20 C) & Average Power Rating (at Ambient 40 C, Inner Conductor 100 C)
