    HFSC 6D / HFSC-FR 6D
    看原圖
    		HFSC-6D


    HFSC 6D / HFSC-FR 6D
    Construction
    Inner Conductor Material / Construction :  Copper-Clad Aluminum Wire
    Inner Conductor Diameter (㎜) :  1.9

    Dielectric Material / Construction : Foamed Polyethylene
    DielectricDiameter (㎜): 4.7

    Outer ConductorMaterial / Construction :  Annularly Corrugated, Copper Tube
    Outer Conductor Diameter (㎜) :  6.4

    Jacket Diameter Standard Jacket (㎜)  : 7.5
    Jacket Diameter Halogen-Free / Flame-Retardant Jacket (㎜) : 7.5
    HFSC 6D (1/4″)
    Min. Bending Radius (㎜) 25
    Recommended
    Operating
    Temperature    		 Standard Jacket (ﾟC)  -40 ~ +80
    Halogen-Free / Flame-Retardant Jacket ©  -30 ~ +80
    Nominal Weight Standard Jacket (㎏/m 0.06
    Halogen-Free /Flame-Retardant Jacket (㎏/m) 0.07
    Flat Plate Crush Resistance (㎏/㎜) 1.86
    Max. Pulling Force (㎏) 68

    Electrical Characteristics

        HFSC 6D (1/4″)
    DC Resistance
    Ω/1,000m
    (Ω/1,000ft)    		 Inner Conductor 9.80 (2.99)
    Outer Conductor 6.50 (1.98)
    Insulation Resistance(MΩ•㎞) 10,000
    Dielectric Strength(for 1 Min.) DC 1,600V
    Velocity of Propagation(%) 81
    Peak Power Rating(㎾) 6.4
    Max. Operating Frequency(㎓) 20.4
    Characteristic Impedance(Ω) 50
    Return Loss(Typical Value) (㏈)  28

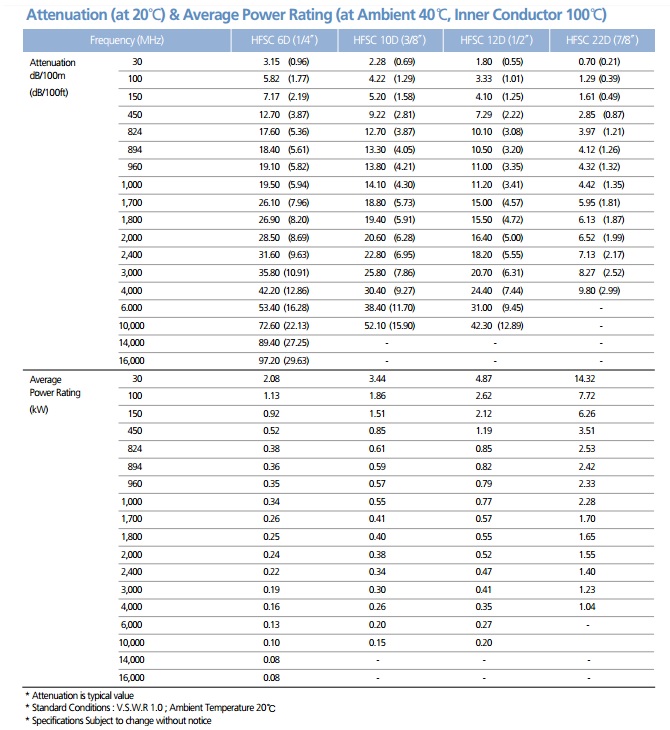

    Attenuation (at 20 C) & Average Power Rating (at Ambient 40 C, Inner Conductor 100 C)
