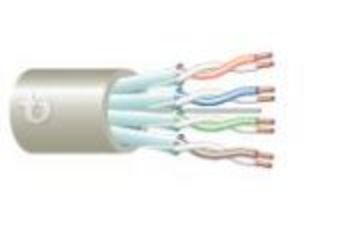

    Teldor 9827654xxx Cat. 6 4x2x23/1 AWG F/FTP FR-LSZH 耐燃低煙無鹵FTP網路線
    看原圖
    		Teldor-9827654xxx

    商品編號: Teldor-9827654xxx

    Teldor-9827654xxx Cat. 6 4x2x23/1 AWG F/FTP FR-LSZH 耐燃低煙無鹵FTP網路線

    Cat. 6 4x2x23/1 AWG F/FTP FR-LSZH

    Part Number:
    9827654xxx
    　
    Applications: Indoor use, fixed installations, High bandwidth digital applications with low BER, High data rates
    General Construction:
    The cable contains 4 individually aluminum foil-shielded twisted pairs, cabled together with a drain wire, an overall foil-shield and jacketd with FR-LSZH compound. The cable exceeds to the IEC 61156-5 Cat. 6 and Cat. 5e requirements.
    　

    Outer Jacket Material: FR-LSZH
    Outer Diameter: 7.4 mm nom.
    Weight: 54 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 23 AWG
    Conductor Construction: Solid
    Insulation Material: PO
    Insulation O.D.: 1.31 mm nom.
    Conductor unit identification: Solid/stripe
    Color code: Per TIA/EIA 568-B
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Conductor unit lay-up: Pairs
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 0.41 mm
    Overall Drain-wire Construction: Solid
    Total number of wires: 8
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: IEC 61156, ISO/IEC 11801, RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Electrical Properties:
    Cat. 6 Screened-Pair Horizontal Cables*
    　

    Freq.

    MHz
    Attenuation
    dB/100m
    20oC

    PS NEXT Loss
    dB
    NEXT Loss
    dB

    RL
    dB
    PS ELFEXT
    dB
    ELFEXT
    dB
    Typical
    Value

    Cat. 6
    Typical
    Value
    Cat. 6

    Typical
    Value

    Cat. 6
    Typical
    Value

    Cat. 6
    Typical
    Value

    Cat. 6
    Typical
    Value

    Cat. 6

    1

    2.0

    2.8

    90.0

    72.3

    93.0

    75.3

    22.0

    20.0

    90.0

    65.0

    93.0

    68.0

    4

    3.7

    3.8

    85.0

    63.3

    88.0

    66.3

    25.0

    23.0

    90.0

    53.0

    93.0

    56.0

    10

    5.7

    6.0

    85.0

    57.3

    88.0

    60.4

    28.0

    25.0

    80.0

    45.0

    83.0

    48.0

    20

    8.1

    8.5

    85.0

    52.8

    88.0

    55.8

    28.0

    25.0

    80.0

    39.0

    83.0

    42.0

    30

    10.0

    10.5

    85.0

    50.1

    88.0

    53.1

    27.0

    23.8

    70.0

    35.5

    73.0

    38.5

    100

    19.0

    19.9

    80.0

    42.3

    83.0

    45.3

    24.0

    21.1

    63.0

    25.0

    66.0

    28.0

    150

    23.6

    24.9

    80.0

    39.7

    83.0

    42.7

    22.0

    18.8

    60.0

    21.5

    63.0

    24.5

    200

    27.7

    29.1

    80.0

    37.8

    83.0

    40.8

    21.0

    18.0

    58.0

    19.0

    61.0

    22.0

    250

    31.4

    33.0

    77.0

    36.3

    80.0

    39.3

    20.0

    17.3

    55.0

    17.0

    58.0

    20.0

    300

    34.8

    N/A

    77.0

    N/A

    80.0

    N/A

    19.0

    17.3

    52.0

    N/A

    55.0

    N/A

    400

    41.0

    N/A

    72.0

    N/A

    75.0

    N/A

    19.0

    17.3

    49.0

    N/A

    52.0

    N/A

    500

    46.7

    N/A

    72.0

    N/A

    75.0

    N/A

    19.0

    17.3

    47.0

    N/A

    50.0

    N/A

    *Supplied cables meet the minimum Cat. 6 transmission requirements as per IEC 61156-5 Ed. 2
    　
    Frequency Range: 1 - 250 MHz
    Impedance: 100 Ω
    Coupling Attenuation: Type II
    Max. DC Resistance : 73 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Capacitance Unbalance: 1.2 pF/m max.
    Velocity of Propagation: 75 % nom.
    Propagation Delay Skew: 30 ns/100m max.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Insulation Resistance : 5 GΩ•km
    Max. Tensile Strength - Short Term: 130 N
    Min. Bend Radius: 60 mm
    Max. Operating Temperature: +60 °C
    Min. Operating Temperature: -40 °C
