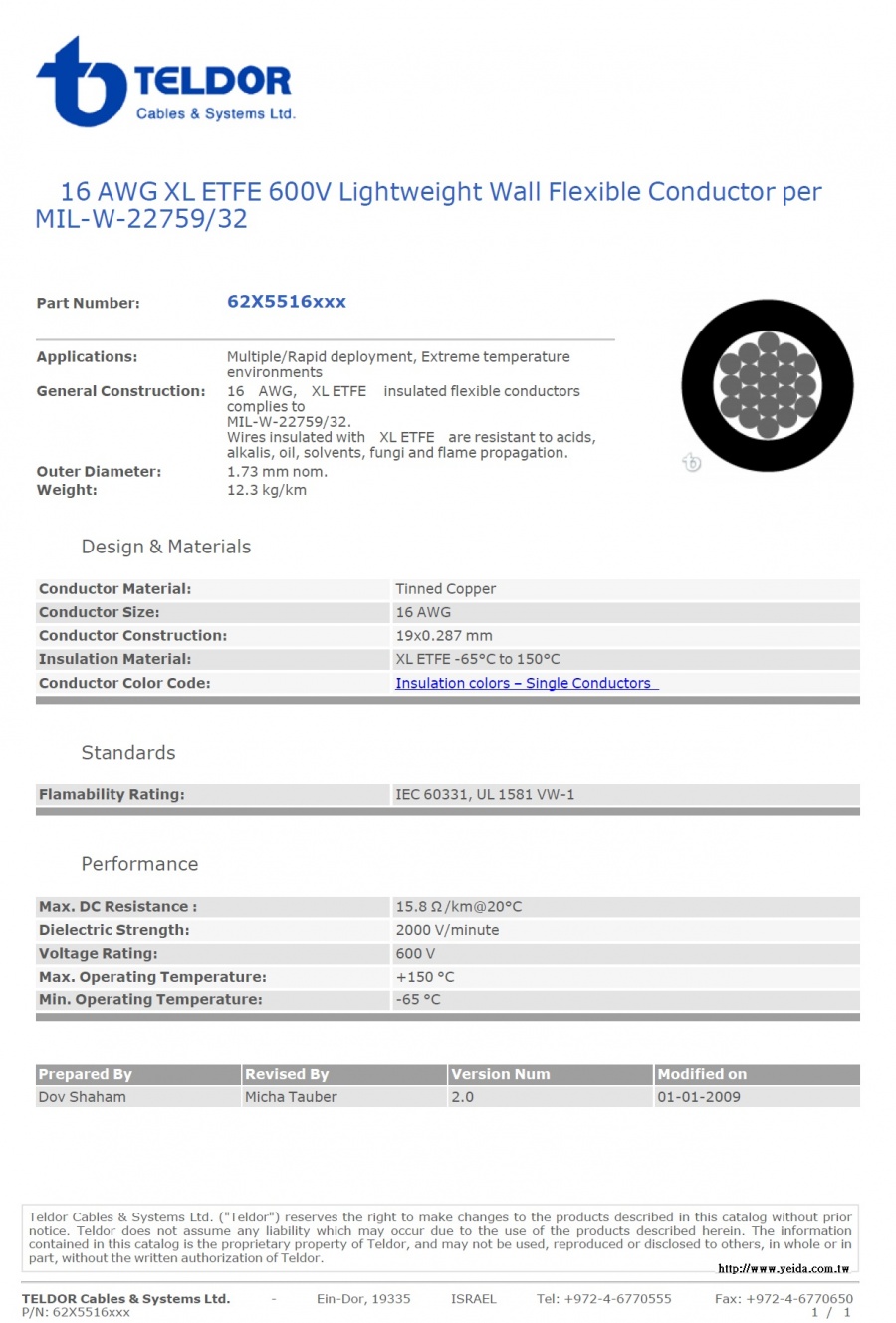

    Teldor 62X5516xxx 16 AWG XL ETFE 600V Lightweight Wall Flexible Conductor per MIL-W-22759/32 軍規鐵氟龍耐熱電子線
    看原圖
    		TELDOR-62X5516XXX


    商品編號: Teldor-62X5516xxx

    Teldor-62X5516xxx 16 AWG XL ETFE 600V Lightweight Wall Flexible Conductor per MIL-W-22759/32 軍規鐵氟龍耐熱電子線

    Part Number:
    62X5516xxx
    　
    　
    Applications: Multiple/Rapid deployment, Extreme temperature environments
    General Construction:
    16 AWG, XL ETFE insulated flexible conductors complies to
    MIL-W-22759/32.
    Wires insulated with XL ETFE are resistant to acids, alkalis, oil, solvents, fungi and flame propagation.
    Outer Diameter: 1.73 mm nom.
    Weight: 12.3 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 16 AWG

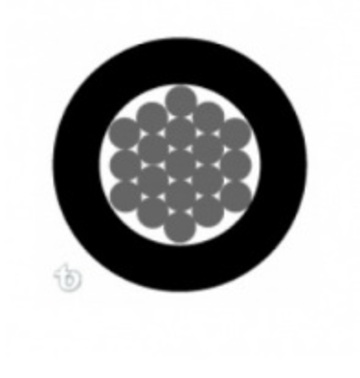

    Conductor Construction: 19x0.287 mm
    Insulation Material: XL ETFE -65°C to 150°C
    Conductor Color Code: Insulation colors – Single Conductors
    Standards
    Flamability Rating: IEC 60331, UL 1581 VW-1
    Performance
    Max. DC Resistance : 15.8 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +150 °C
    Min. Operating Temperature: -65 °C
