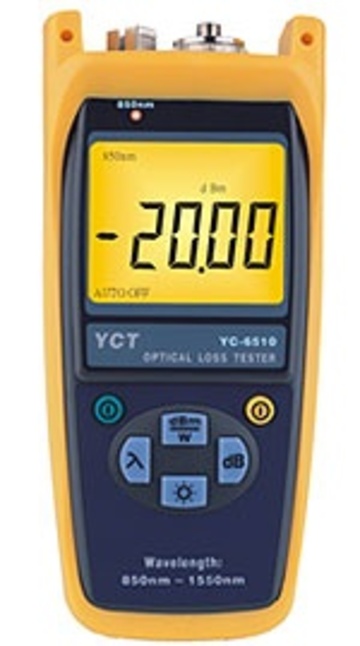

YC-6510 Fiber Optical Power Loss Tester
|
Fiber Optical Power Loss Tester
Fiber Optical Power Meter: |
| FEATURES : |
![]() Use of inGaAs photo diode. |
![]() Wavelength range:850nm,1300nm,1310nm,1550nm. |
![]() Measurement range: +3dBm ~ -55dBm,2mW ~ 4nW. |
![]() Accuracy:±0.3dBm. |
![]() Low battery indication, With overload indication, With auto power off, back light. |
![]() Use of InGaAs photodiode and flat response curve. |
![]() Range of wavelength measurement :800nm ~1600nm. |
![]() Connector:ST,FC,Universal(option). |
|
| |
| LED Light Source 850nm(MM): |
| FEATURES: |
![]() Central wavelength:850nm(MM) single wavelength output .. |
![]() Power output:CW= -18.0dBm. |
![]() Power output uncetainty:±0.5dB. |
![]() Stability(25°C& 5 min Warm-up ):0.1dB/8hrs. |
![]() Different connector: ST,FC,SC(option). |
![]() Drive frequency: CW (Continuous Wavelength). |
|
| ACCESSORIES : |
![]() Carrying case x 1PC. |
![]() Adapter :DC6V 300mA x 1PC. |
![]() Alkaline battery DC1.5V x4 pcs (LR03 AAA). |
![]() Users manual x1pc. |
![]() Test report x1 pc. |
![]() Patchcord:ST/FC/SC(option). |
|
YC-6510 光纖功率損失測試錶
|
光纖功率損失測試錶
光纖功率錶: |
| 特點說明 : |
![]() 使用inGaAs 光二極體. |
![]() 波長範圍: 850nm,1300nm,1310nm,1550nm. |
![]() 測量範圍: +3dBm ~ -55dBm,2mW ~ 4nW. |
![]() 精確度:± 0.3dBm. |
![]() 低電池指示,過載 指示,自動關機功能,LCD背光功能(一分鐘自動關機). |
![]() 能容 納高需求的光纖纜線,光通訊設施及光纖傳輸.允許使用者處理衰減放大的輸出/輸入信號或其它的計算. |
![]() 使用 反應曲線寬且平的光二極體InGaAs. |
![]() 波長範圍: 800nm ~1600nm. |
![]() 連接器:ST, FC,Universal(三選一). |
|
| |
| LED 850nm 光纖光源錶(MM): |
| 特點說明 : |
![]() 中心波長:850nm (MM)多模態,單波長輸出. |
![]() 輸出功率:CW= -18dBm. |
![]() 光功率設定不確定度: 0.5dB. |
![]() 穩定度(25°C& 5 分鐘熱機 ):0.1dB/8hrs. |
![]() 連接器:ST, FC,SC(三選一). |
![]() 驅動 頻率:CW(連續驅動波). |
|
| 附件: |
![]() PVC 保護盒x 1PC. |
![]() 整流器DC6V 300mA x 1PC. |
![]() 鹼性電池DC1.5V x4只(LR03 AAA). |
![]() 使用手冊 X1本. |
![]() 測試報告 x1 份. |
![]() 光纖跳接線: ST/FC/SC 任選1條. |
|
|
|
