    首頁 > > YC-Fiber Optical Test Meter and equipment 光纖儀錶及設備器材

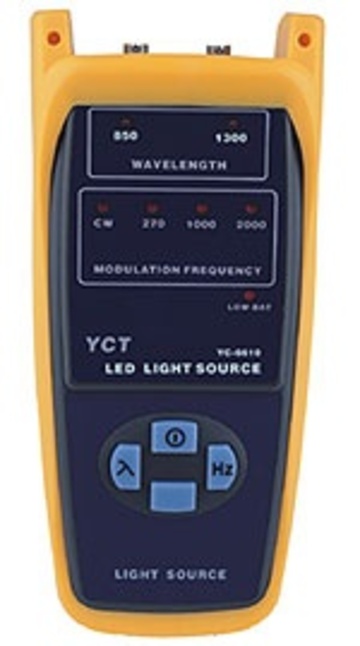

    YC-6610 LED FIBER OPTICAL LIGHT SOURCE LED 850/1300 nm (MM)多模光纖光源錶
    看原圖
    		YC-6610


    YC-6610 LED FIBER OPTICAL LIGHT SOURCE
    　
    LED FIBER OPTICAL LIGHT SOURCE 850/1300nm

    LED Light Source 850/1300nm(MM):
    FEATURES :
    Central wavelength:850/1300nm(MM) Dual wavelength output ..
    Power output:CW= -18.0dBm.
    Power output uncetainty:±0.5dB.
    Stability(25°C& 5 min Warm-up ):0.1dB/8hrs.
    Different connector: ST,FC,SC(option).
    4 variable drive frequency:( CW/270Hz/1000Hz/2000Hz).
    Low battery indicative lamp.

    ACCESSORIES :
    Carrying case x 1PC.
    Adapter :DC6V 300mA x 1PC.
    Alkaline battery DC1.5V x4 pcs (LR03 AAA).
    Users manual x1pc.

    　

    YC-6610 光纖光源錶
    　
    LED 850/1300 nm (MM)光纖光源錶

    LED 850/1300nm 光纖光源錶:
    特點說明 :
    中心波長: 850nm/1300(MM)多模態,雙波長輸出.
    輸出功率:CW= -18dBm.
    光功率設定不確定度: 0.5dB.
    穩定度(25°C& 5 分鐘熱機 ):0.1dB/8hrs.
    連接器:ST, FC,SC(三選一).
    4種 可變的驅動頻率:(CW/270Hz/1000Hz/2000Hz).
    低電力指示燈.

    附件:
    PVC 保護盒x 1PC.
    整流器DC6V 300mA x 1PC.
    鹼性電池DC1.5V x4只(LR03 AAA).
    使用手冊 X1本.
