    Teldor-95F05FF02C Fiber Optic Flat Duplex PVC Cable 2C光纖線
    看原圖
    		TELDOR-95F05FF02C

    商品編號: Teldor-95F05FF02C

    Teldor-95F05FF02C Fiber Optic Flat Duplex PVC Cable 2C光纖線

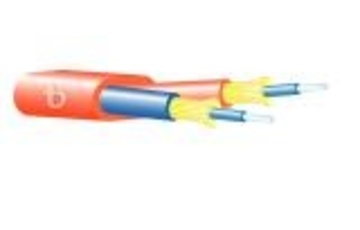

    TELDOR Fiber Optic Flat Duplex PVC Cable

    Part Number:
    95F05FF02C
    　
    Applications: General purpose indoor LAN, Jumpers and pigtails, Patch panels, Direct termination, Short distance distribution
    General Construction: 2 optical fibers with a 0.9 mm buffer, each re-inforced by dielectric strength yarns and protected with individual color-coded jackets. These "minicables" are in turn protected by and overall oval jacket
    Outer Jacket Material: FR-PVC
    Outer Diameter: 3.8 mm nom.
    Weight: 26.0 kg/km
    Design & Materials
    Buffer Diameter: 900 µm
    Outer Jacket Dimension - X: 6.6 mm nom.
    Outer Jacket Dimension - Y: 3.8 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: IEC 60794
    Flamability Rating: IEC 60332-1
    Performance
    Max. Tensile Strength - Short Term: 450 N
    Max. Tensile Strength - Long Term: 250 N
    Impact Resistance: 1.5 N•m
    Max. Crush Resistance: 220 N/cm
    Min. Bend Radius for Installation: 57 mm
    Min. Bend Radius for Operation: 38 mm
    Repeated Bending: 1,000 cycles
    Max. Operating Temperature: +75 °C
    Min. Operating Temperature: –25 °C
    Max. Storage Temperature: +75 °C
    Min. Storage Temperature: –25 °C
