    Teldor-95J05FF02C Fiber Optic MT-RJ MiniZIP PVC Cable 2C光纖MT-RJ跳線
    看原圖
    		TELDOR-95J05FF02C

    商品編號: Teldor-95J05FF02C

    Teldor-95J05FF02C Fiber Optic MT-RJ MiniZIP PVC Cable 2C光纖MT-RJ跳線


    TELDOR Fiber Optic MT-RJ MiniZIP PVC Cable

    Part Number:
    95J05FF02C
    　
    Applications: Jumpers and pigtails, Patch cable optimized for MT-RJ connector, Patch panels, Direct termination, Short distance distribution

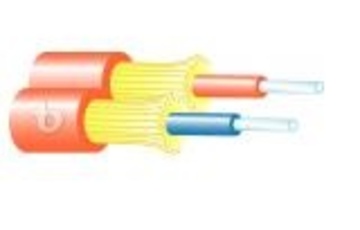

    General Construction: MT-RJ MiniZIP Cable consists of two optical fibers with a 0.6 mm buffer, each re-inforced by aramid strength yarns and protected with a jacket in a "ZIP" or siamese twin construction.
    Outer Jacket Material: FR-PVC
    Outer Diameter: 1.8 mm nom.
    Weight: 7.0 kg/km
    Design & Materials
    Buffer Diameter: 600 µm
    Outer Jacket Dimension - X: 3.7 mm nom.
    Outer Jacket Dimension - Y: 1.8 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: IEC 60794
    Flamability Rating: IEC 60332-1
    Performance
    Max. Tensile Strength - Short Term: 220 N
    Max. Tensile Strength - Long Term: 150 N
    Impact Resistance: 1.5 N•m
    Max. Crush Resistance: 150 N/cm
    Min. Bend Radius for Installation: 27 mm
    Min. Bend Radius for Operation: 18 mm
    Repeated Bending: 10,000 cycles
    Max. Operating Temperature: +75 °C
    Min. Operating Temperature: –25 °C
    Max. Storage Temperature: +75 °C
    Min. Storage Temperature: –25 °C
